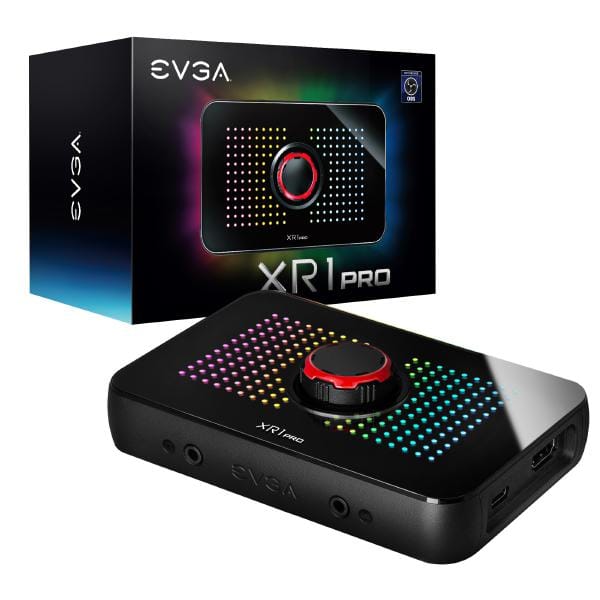

EVGA XR1 Pro Capture Card, 1440p/4K HDR Capture/Pass Through, Certified for OBS, USB 3.1, ARGB, Audio Mixer
It's time to stream like a PRO with the new EVGA XR1 Pro Capture card. Capture every game play moment like it's meant to be with true 1440p@144gps / 4k 60fps pass through. Stream instantly lag free or capture and record up to 4K @ 30 fps and share to the world.
Interface: USB 3.1 Type-C
Input & Output Interface: HDMI
Video Input Resolution: 480p@60fps
576p@50fps
720p@50fps / @60fps
1080p@30fps / @60fps / @120fps / @144fps / @240fps HDR
1440p@30fps / @60fps / @144fps HDR
4K@30fps / @60fps HDR
Video Pass through Resolution: 480p@60fps
576p@50fps
720p@50fps / @60fps
1080p@30fps / @60fps / @120fps / @144fps / @240fps HDR
1440p@30fps / @60fps / @144fps HDR
4K@30fps / @60fps HDR
Max. Capture Resolution: 4K@30fps
Video Format: RAW
Dimensions: 130mm x 86.4mm x 32.95mm (L x W x H)
Weight: 159g
| Ports & interfaces | |
| Video port type The type of socket in the device for connecting a video e.g. SCART. | HDMI |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 2 |
| HDMI in Port (socket) for HDMI input. | 1 |
| Number of HDMI outputs Port (socket) for HDMI output. | 1 |
| USB port type | USB Type-C |
| 3.5 mm (1/8-inch) in |
 |
| 3.5 mm (1/8-inch) out |
|
| Features | |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Multicolour |
| Maximum frame rate This is the maximum frame rate, also known as frame frequency and frames per second (FPS). It is the frequency (rate) at which an imaging device produces unique consecutive images called frames. The term applies equally well to film and video cameras, computer graphics, and motion capture systems. Frame rate is most often expressed in frames per second (FPS) and is also expressed in progressive scan monitors as hertz (Hz). | 240 fps |
| Supported video modes The video modes that can be displayed by the device. | 480p,576p,720p,1080p,1440p,2560p |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 130 mm |
| Depth The distance from the front to the back of something. | 86.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 33 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 159 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| SKU | 603407 |
| MPN | 144-U1-CB21-LR |
| Brand | EVGA |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://au.evga.com/ |
