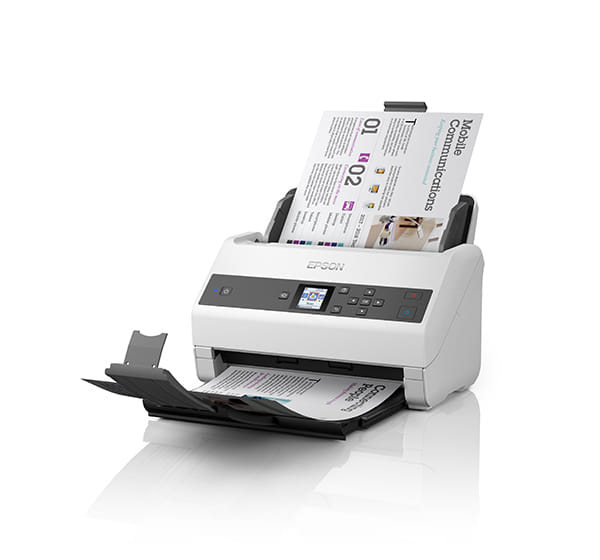

Epson WorkForce DS-970, 600 x 600 DPI, 30 bit, 24 bit, 85 ppm, 85 ppm, Sheet-fed scanner
Providing world-class performance for busy workgroups is the ultra fast, reliable and robust DS-970 document scanner. Designed for high-volume environments where speed and dependability are critical, the DS-970 offers lightning-fast speeds up to 85 ppm/170 ipm1, plus a 100-page ADF and peak daily duty cycle of up to 9,000 sheets2. And, it s all backed by a 12 month limited warranty. The included TWAIN and ISIS drivers ensure seamless integration with existing software, while a convenient, colour LCD display and buttons make navigating scan jobs and selecting modes easy.
Volume and speed
With a 100-page ADF (Automatic Document Feeder), 85ppm or 170ipm scanning speed and continuous scanning with an automatic feed mode, the WorkForce DS-970 gets through large jobs quickly and efficiently. It also features high-speed USB 3.0 for fast data transfer with TWAIN, WIA and ISIS drivers for enhanced compatibility with document management systems.
Efficient document processing
Users need not worry about variations in documents they need to capture " it offers Epson s widest media handling from 27gsm to 413gsm and a long paper scanning mode up to 6096mm. For documents that cannot be scanned via the ADF " three different flatbed solutions up to A3 in size are available. Slow mode decreases document friction by reducing the speed of the rollers, making it easier to capture fragile or damaged documents, without increasing file sizes. The Active Separation Roller System prevents tedious document double feeds ensuring every piece of paper gets scanned. Additonally, the Double Feed Detection Skip (DFDS) function means you can scan difficult media like envelopes or documents with post-it notes.
Image enhancement and document management software
Epson Scan 2.0 software makes it easy to edit images with features such as de-skew and auto rotate, while Document Capture Pro is the easy to use solution for capturing and storing electronic documents at the touch of a button.
Volume and speed
With a 100-page ADF (Automatic Document Feeder), 85ppm or 170ipm scanning speed and continuous scanning with an automatic feed mode, the WorkForce DS-970 gets through large jobs quickly and efficiently. It also features high-speed USB 3.0 for fast data transfer with TWAIN, WIA and ISIS drivers for enhanced compatibility with document management systems.
Efficient document processing
Users need not worry about variations in documents they need to capture " it offers Epson s widest media handling from 27gsm to 413gsm and a long paper scanning mode up to 6096mm. For documents that cannot be scanned via the ADF " three different flatbed solutions up to A3 in size are available. Slow mode decreases document friction by reducing the speed of the rollers, making it easier to capture fragile or damaged documents, without increasing file sizes. The Active Separation Roller System prevents tedious document double feeds ensuring every piece of paper gets scanned. Additonally, the Double Feed Detection Skip (DFDS) function means you can scan difficult media like envelopes or documents with post-it notes.
Image enhancement and document management software
Epson Scan 2.0 software makes it easy to edit images with features such as de-skew and auto rotate, while Document Capture Pro is the easy to use solution for capturing and storing electronic documents at the touch of a button.
| Scanning | |
| Optical scanning resolution How many pixels a scanner can see. Most commonly, this is measured in dots per inch (dpi).For example, a typical flatbed scanner will use a scanning head with 300 sensors per inch, so it can sample 300 dots per inch (dpi) in one direction. To scan in the other direction, it will move the scanning head along the page, stopping 300 times per inch, so it can scan 300 dpi in the other direction as well. This scanner would have an optical resolution of 300 x 300 dpi. Some manufacturers stop the scanning head more frequently as it moves down the page, so their machines have resolutions of 300 x 600 dpi or 300x1200 dpi. | 600 x 600 DPI |
| Colour scanning Indicates whether this product scans in colour. |
 |
| Duplex scanning Feature of computer scanners and multifunction printers (MFPs) that allows the automatic scanning of a sheet of paper on both sides. |
|
| Input colour depth Colour depth of the input into the product. The colour depth is either the number of bits used to indicate the color of a single pixel, in a bitmapped image or video frame buffer, or the number of bits used for each color component of a single pixel. High-end laptops have 24-bit colour depth. | 30 bit |
| Output colour depth | 24 bit |
| ADF scan speed (b/w, A4) | 85 ppm |
| ADF scan speed (colour, A4) | 85 ppm |
| Design | |
| Scanner type Indicates the type of scanner this product is. | Sheet-fed scanner |
| Product colour The colour e.g. red, blue, green, black, white. | Black, White |
| Display The description of display that can includes display type, resolution, size etc. | LCD |
| Colour display |
|
| Built-in display A display which is part of the product, so you do not need to attach another display. |
|
| Performance | |
| Scan file formats | BMP, JPEG, PDF, PNG, TIFF |
| Daily duty cycle (max) The maximum percentage of time a machine or piece of equipment can be in operation for in one day in relation to the time it must remain out of operation. For instance, a max daily duty cycle of 30 percent means it will operate for a maximum 30 percent of the day and then not be used for the other 70 percent of the day. | 7000 pages |
| Scan drivers | ISIS,SANE,TWAIN,WIA |
| Ultrasonic double sheet detection |
|
| Input capacity | |
| Standard input capacity The number of sheets of paper that can be held by a device. | 100 sheets |
| Auto document feeder (ADF) input capacity Number of sheets this product can hold in its ADF tray; expressed in sheets | 100 sheets |
| Paper handling | |
| Scanning media types supported | Business Card, Plain paper, Plastic Card, Post Card(JPN) |
| Maximum ISO A-series paper size The maximum paper size the device can handle, defined by ISO A-series. | A4 |
| ISO A-series sizes (A0...A9) Different sizes of paper from A0 (big) to A9 (small). A4 is the most common size used for printing documents. | A4,A5,A6 |
| ISO B-series sizes (B0...B9) | B5,B6 |
| Letter |
|
| Legal |
|
| Auto Document Feeder (ADF) media weight | 40 - 210 g/m² |
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 3.2 Gen 1 (3.1 Gen 1) |
| Power | |
| Power supply type The type of power supply which this product uses. | AC |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 30 W |
| Power consumption (off) | 0.1 W |
| AC input frequency | 47 - 63 Hz |
| Input voltage The voltage (V) which is required to power the product. | 100 - 240 V |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Mac operating systems supported Mac operating systems e.g. OS X can be used with the device. |
|
| Server operating systems supported | Windows Server 2008,Windows Server 2008 x64,Windows Server 2012 R2 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 35 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | 25 - 60 °C |
| Operating relative humidity (H-H) | 15 - 80% |
| Storage relative humidity (H-H) | 15 - 85% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 296 mm |
| Depth The distance from the front to the back of something. | 169 mm |
| Height The measurement of the product from head to foot or from base to top. | 167 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.6 kg |
| SKU | 512024 |
| MPN | B11B251501 |
| Brand | Epson |
| Product Condition | Brand New/Unused |
| Printer Type | None |
| Print Scan Features | Scan |
| Scanner Type | Slide/Sheetfed |
| Wired/Wireless | Wired |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.epson.com.au/ |
