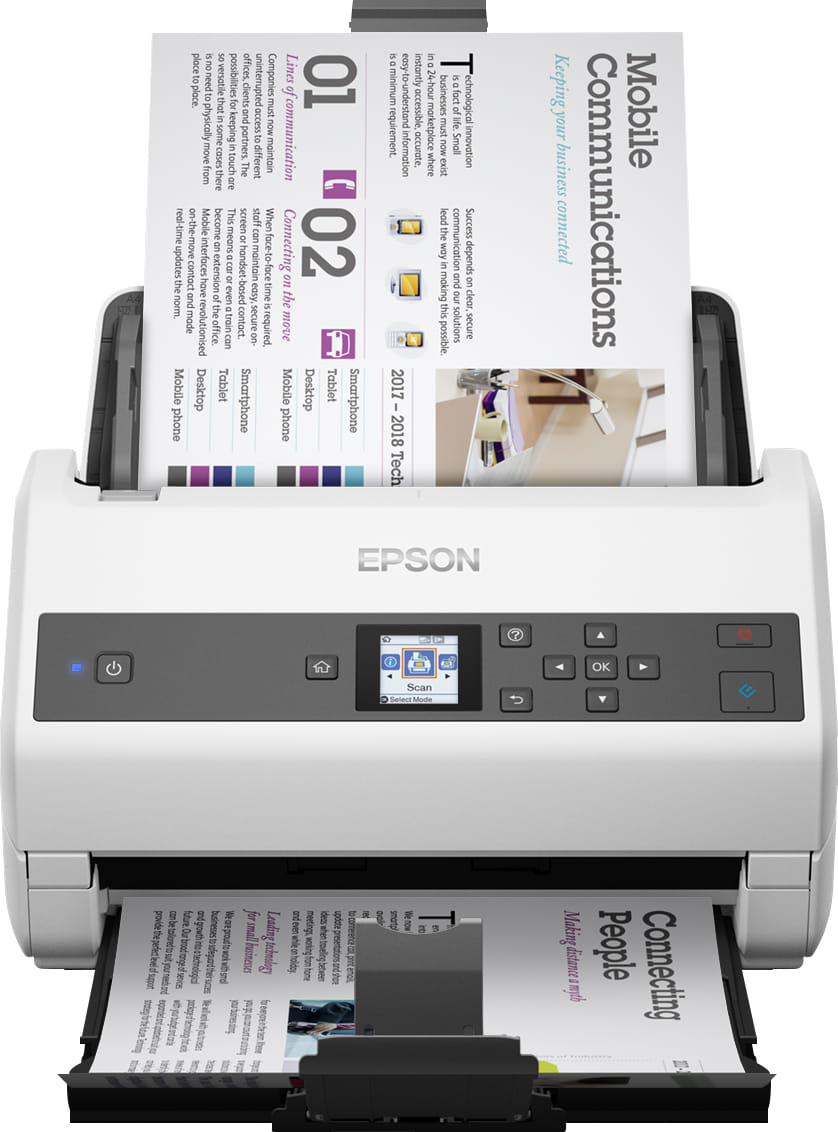

Epson WorkForce DS-870 Sheet-Fed Document Scanner

Scanning
Maximum scan size	215.9 x 6096 mm
Optical scanning resolution How many pixels a scanner can see. Most commonly, this is measured in dots per inch (dpi).For example, a typical flatbed scanner will use a scanning head with 300 sensors per inch, so it can sample 300 dots per inch (dpi) in one direction. To scan in the other direction, it will move the scanning head along the page, stopping 300 times per inch, so it can scan 300 dpi in the other direction as well. This scanner would have an optical resolution of 300 x 300 dpi. Some manufacturers stop the scanning head more frequently as it moves down the page, so their machines have resolutions of 300 x 600 dpi or 300x1200 dpi.	600 x 600 DPI
Colour scanning Indicates whether this product scans in colour.
Duplex scanning Feature of computer scanners and multifunction printers (MFPs) that allows the automatic scanning of a sheet of paper on both sides.
Input colour depth Colour depth of the input into the product. The colour depth is either the number of bits used to indicate the color of a single pixel, in a bitmapped image or video frame buffer, or the number of bits used for each color component of a single pixel. High-end laptops have 24-bit colour depth.	30 bit
Output colour depth	24 bit
Input greyscale depth	10 bit
Output greyscale depth	8 bit
ADF scan speed (b/w, A4)	65 ppm
ADF scan speed (colour, A4)	65 ppm

Design
Scanner type Indicates the type of scanner this product is.	Sheet-fed scanner
Product colour The colour e.g. red, blue, green, black, white.	Grey, White
Display The description of display that can includes display type, resolution, size etc.	LCD
Colour display
Built-in display A display which is part of the product, so you do not need to attach another display.

Performance
Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.	CIS
Scan file formats	BMP, JPEG, PDF, TIFF
Daily duty cycle (max) The maximum percentage of time a machine or piece of equipment can be in operation for in one day in relation to the time it must remain out of operation. For instance, a max daily duty cycle of 30 percent means it will operate for a maximum 30 percent of the day and then not be used for the other 70 percent of the day.	7000 pages
Scan to	E-mail, FTP, Software, Print, HTTP, Network folder
Scan drivers	TWAIN, ISIS, SANE, WIA
Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.
Ultrasonic sensor

Input capacity
Auto document feeder (ADF) input capacity Number of sheets this product can hold in its ADF tray; expressed in sheets	100 sheets

Paper handling
Scanning media types supported	Business Card, Plastic Card, Post Card(JPN)
Maximum ISO A-series paper size The maximum paper size the device can handle, defined by ISO A-series.	A3
ISO A-series sizes (A0...A9) Different sizes of paper from A0 (big) to A9 (small). A4 is the most common size used for printing documents.	A3, A4, A5, A6
ISO B-series sizes (B0...B9)	B4, B5, B6
Letter
Legal
Auto Document Feeder (ADF) media weight	27 - 413 g/m²
Maximum scan area (ADF)	215.9 x 6096 mm
Minimum scan area (ADF)	50.8 x 50.8 mm

Ports & interfaces
USB port The device features a socket into which a USB cable can be plugged.
USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.	3.2 Gen 1 (3.1 Gen 1)
Optional connectivity	Ethernet
Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.	USB 3.2 Gen 1 (3.1 Gen 1)

Power
Power supply type The type of power supply which this product uses.	AC
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	30 W
Power consumption (off)	0.1 W
AC input frequency	50/60 Hz
Sleep mode
Input voltage The voltage (V) which is required to power the product.	100 - 240 V

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Supported network protocols (IPv6)
Supported network protocols (IPv4)	TCP/IP, DHCP, DNS, SNMP, SLP
IPv6 support
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	TCP/IP, DHCP, DNS, SNMP, SLP

Packaging data
Quantity per pack	1 pc(s)

System requirements
Compatible operating systems List of desktop operating systems tested as compatible with this product.	Mac OS 10.6+, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64 Bit), Windows Server 2012 R2, Windows Vista, Windows XP SP3
Windows operating systems supported Windows vesions wich can be used with the device.	Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012 R2

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	5 - 35 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	25 - 60 °C
Operating relative humidity (H-H)	15 - 80%
Storage relative humidity (H-H)	15 - 85%

Weight & dimensions
Width The measurement or extent of something from side to side.	296 mm
Depth The distance from the front to the back of something.	169 mm
Height The measurement of the product from head to foot or from base to top.	167 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	3.6 kg

Packaging content
Cables included	AC
AC adapter included
Drivers included
Bundled software Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer.	Document Capture Pro 2.0, Epson Device Admin, Epson Scan 2

Other features
Control panel Description of the control panel of the product; including the available buttons; and the function of each button	5-line LCD with Push Scan features
Output resolutions	1200 dpi
Image formats supported The type of image files that the device can use/display e.g. gif, JPEG (jpg).	BMP, JPEG, TIFF, PNG

Technical details
Scan technology Indicates the technology used to scan by this product	ReadyScan LED
