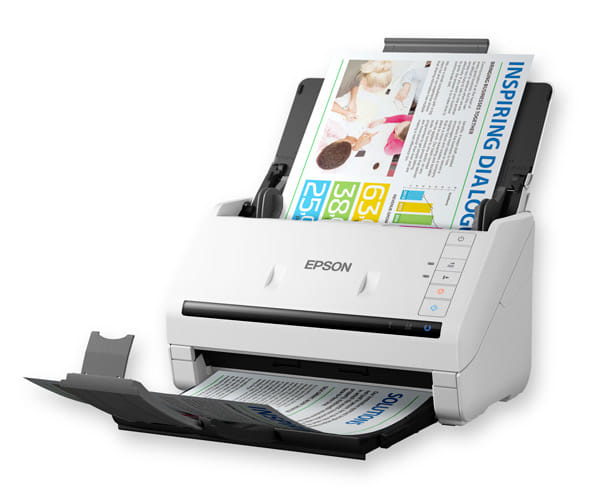

Epson WorkForce DS-530, 215.9 x 6096 mm, 600 x 600 DPI, 30 bit, 24 bit, Sheet-fed scanner, Black, White
The EPSON WorkForce DS-530 document scanner takes efficiency to a new level for business environments where fast and easy document management is required. Scan documents, business cards, and identification cards directly to popular cloud services with the included software. The scanner is very easy to use and includes intuitive one-touch scanning.
Boasting speeds of up to 35ppm and a built-in Automatic Document Feeder, the DS-530 will easily scan large amounts of documents in no time.
With a slow mode feature1 for scanning crumpled or fragile documents, the ability to scan challenging media has never been easier. The Active Separation Roller System prevents tedious document double feeds ensuring every piece of paper gets scanned and the Double Feed Detection Skip (DFDS) means you can scan difficult media like envelopes or documents with post-it notes. Auto Scan Mode enables the processing of a vast number of documents as manageable amounts, enabling them to be scanned as one file.
The optional flatbed scanner conversion kit allows effective document processing from stamps to passports and books. Single-pass double-sided scanning ensures rapid document processing, while it's possible to scan a versatile array of media such as paper as thin as 27gsm, or thick card at 413gsm. The A3 carrier sheet speeds up the process by automatically stitching larger documents back together digitally.
KEY FEATURES
- Exceptional Speed 35ppm / 70 ipm1 scan speeds for efficient and productive scanning.
- Optional Network Adaptor One single unit can be connected to a network so the unit can be shared by multiple users.
- Optional Flatbed Scanner Dock This enables high speed sheet-fed scanning and flatbed scanning for passports, booklets and fragile paper like damaged receipts with one driver.
- Scan directly to popular cloud services scan to Dropbox, Sharepoint , Evernote , Google Drive for efficient file sharing2.
- Scan to searchable PDF's scan and edit documents; save scanned documents as PDF files. OCR software included for easy filing.
- Advanced colour and image adjustments Colour Enhance, Colour Dropout, automatic paper size detection for innovative and productive document management.
- Connect to document management software TWAIN and ISIS drivers (ISIS available via web download) for seamless integration between the scanner and custom built business applications.
- 50 sheet ADF capacity for rapid capture of large multi-page documents.
- Powerful Duty Cycle Scan up to 4,000 sheets per day.
Boasting speeds of up to 35ppm and a built-in Automatic Document Feeder, the DS-530 will easily scan large amounts of documents in no time.
With a slow mode feature1 for scanning crumpled or fragile documents, the ability to scan challenging media has never been easier. The Active Separation Roller System prevents tedious document double feeds ensuring every piece of paper gets scanned and the Double Feed Detection Skip (DFDS) means you can scan difficult media like envelopes or documents with post-it notes. Auto Scan Mode enables the processing of a vast number of documents as manageable amounts, enabling them to be scanned as one file.
The optional flatbed scanner conversion kit allows effective document processing from stamps to passports and books. Single-pass double-sided scanning ensures rapid document processing, while it's possible to scan a versatile array of media such as paper as thin as 27gsm, or thick card at 413gsm. The A3 carrier sheet speeds up the process by automatically stitching larger documents back together digitally.
KEY FEATURES
- Exceptional Speed 35ppm / 70 ipm1 scan speeds for efficient and productive scanning.
- Optional Network Adaptor One single unit can be connected to a network so the unit can be shared by multiple users.
- Optional Flatbed Scanner Dock This enables high speed sheet-fed scanning and flatbed scanning for passports, booklets and fragile paper like damaged receipts with one driver.
- Scan directly to popular cloud services scan to Dropbox, Sharepoint , Evernote , Google Drive for efficient file sharing2.
- Scan to searchable PDF's scan and edit documents; save scanned documents as PDF files. OCR software included for easy filing.
- Advanced colour and image adjustments Colour Enhance, Colour Dropout, automatic paper size detection for innovative and productive document management.
- Connect to document management software TWAIN and ISIS drivers (ISIS available via web download) for seamless integration between the scanner and custom built business applications.
- 50 sheet ADF capacity for rapid capture of large multi-page documents.
- Powerful Duty Cycle Scan up to 4,000 sheets per day.
| Scanning | |
| Maximum scan size | 215.9 x 6096 mm |
| Optical scanning resolution How many pixels a scanner can see. Most commonly, this is measured in dots per inch (dpi).For example, a typical flatbed scanner will use a scanning head with 300 sensors per inch, so it can sample 300 dots per inch (dpi) in one direction. To scan in the other direction, it will move the scanning head along the page, stopping 300 times per inch, so it can scan 300 dpi in the other direction as well. This scanner would have an optical resolution of 300 x 300 dpi. Some manufacturers stop the scanning head more frequently as it moves down the page, so their machines have resolutions of 300 x 600 dpi or 300x1200 dpi. | 600 x 600 DPI |
| Colour scanning Indicates whether this product scans in colour. |
 |
| Duplex scanning Feature of computer scanners and multifunction printers (MFPs) that allows the automatic scanning of a sheet of paper on both sides. |
|
| Input colour depth Colour depth of the input into the product. The colour depth is either the number of bits used to indicate the color of a single pixel, in a bitmapped image or video frame buffer, or the number of bits used for each color component of a single pixel. High-end laptops have 24-bit colour depth. | 30 bit |
| Output colour depth | 24 bit |
| Design | |
| Scanner type Indicates the type of scanner this product is. | Sheet-fed scanner |
| Product colour The colour e.g. red, blue, green, black, white. | Black, White |
| Performance | |
| Light source | RGB LED |
| Scan file formats | JPG,PDF,TIFF |
| Daily duty cycle (max) The maximum percentage of time a machine or piece of equipment can be in operation for in one day in relation to the time it must remain out of operation. For instance, a max daily duty cycle of 30 percent means it will operate for a maximum 30 percent of the day and then not be used for the other 70 percent of the day. | 4000 pages |
| Input capacity | |
| Standard input capacity The number of sheets of paper that can be held by a device. | 50 sheets |
| Paper handling | |
| Scanning media types supported | Business Card, Plastic Card |
| Maximum ISO A-series paper size The maximum paper size the device can handle, defined by ISO A-series. | A4 |
| ISO A-series sizes (A0...A9) Different sizes of paper from A0 (big) to A9 (small). A4 is the most common size used for printing documents. | A4,A5,A6 |
| Letter |
|
| Legal |
|
| ISO B-series sizes (B0...B9) | B5 |
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one. | 3.2 Gen 1 (3.1 Gen 1) |
| Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB. | USB 3.2 Gen 1 (3.1 Gen 1) |
| Power | |
| Power supply type The type of power supply which this product uses. | AC |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 17 W |
| Power consumption (off) | 0.1 W |
| Input voltage The voltage (V) which is required to power the product. | 100-240 V |
| Network | |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | TCP/IP, DHCP, DNS, SNMP, SLP |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 5 - 35 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -25 - 60 °C |
| Operating relative humidity (H-H) | 10 - 80% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 296 mm |
| Depth The distance from the front to the back of something. | 169 mm |
| Height The measurement of the product from head to foot or from base to top. | 176 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.7 kg |
| Packaging content | |
| Cables included | USB |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| SKU | 498728 |
| MPN | B11B226501 |
| Brand | Epson |
| Product Condition | Brand New/Unused |
| Printer Type | None |
| Print Scan Features | Scan |
| Scanner Type | Slide/Sheetfed |
| Wired/Wireless | Wired |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.epson.com.au/ |
