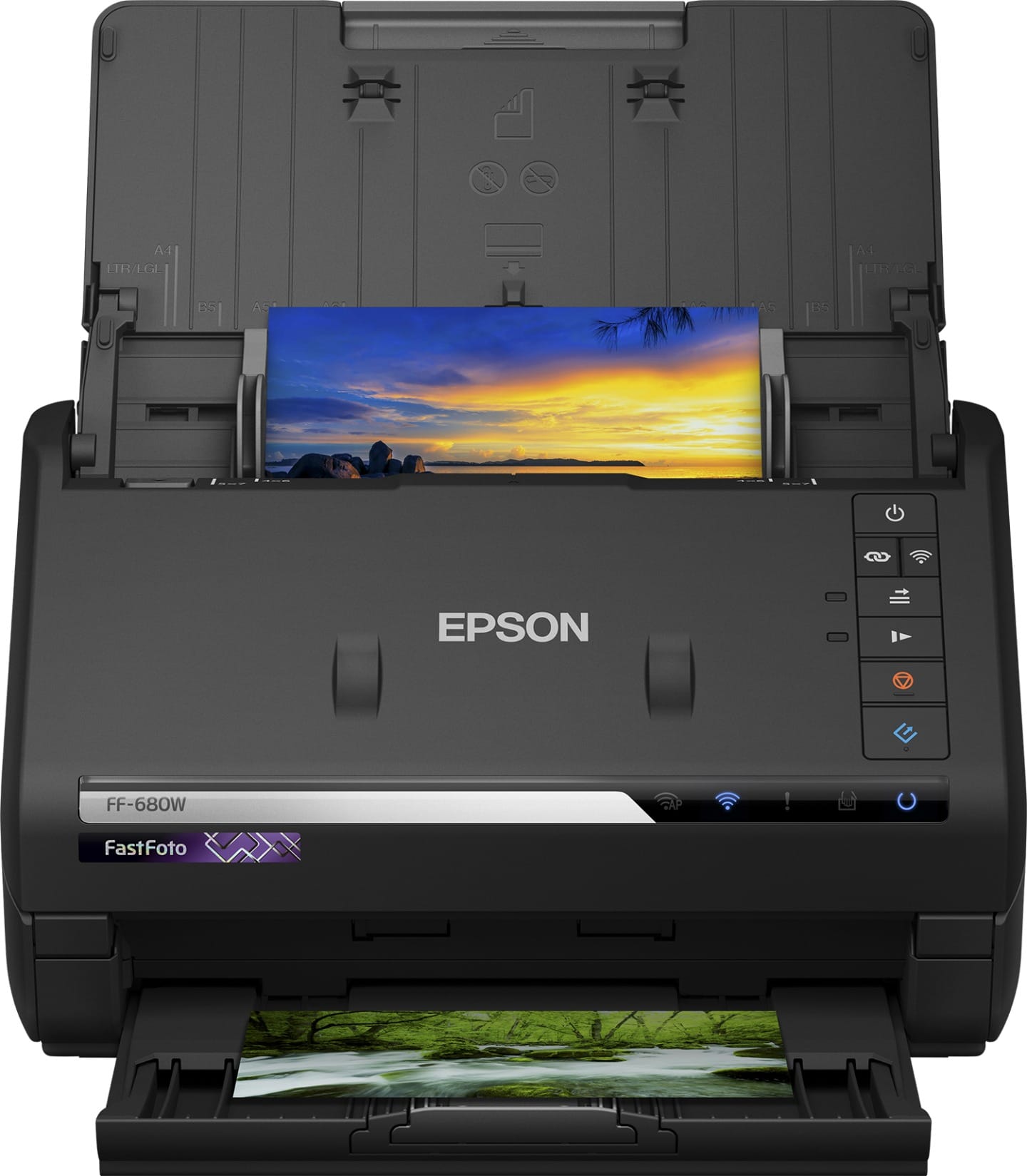

Epson FastFoto FF-680W High-Speed Wireless Photo Scanner

Scanning
Maximum scan size	216 x 910 mm
Optical scanning resolution How many pixels a scanner can see. Most commonly, this is measured in dots per inch (dpi).For example, a typical flatbed scanner will use a scanning head with 300 sensors per inch, so it can sample 300 dots per inch (dpi) in one direction. To scan in the other direction, it will move the scanning head along the page, stopping 300 times per inch, so it can scan 300 dpi in the other direction as well. This scanner would have an optical resolution of 300 x 300 dpi. Some manufacturers stop the scanning head more frequently as it moves down the page, so their machines have resolutions of 300 x 600 dpi or 300x1200 dpi.	600 x 600 DPI
Colour scanning Indicates whether this product scans in colour.
Duplex scanning Feature of computer scanners and multifunction printers (MFPs) that allows the automatic scanning of a sheet of paper on both sides.
Input colour depth Colour depth of the input into the product. The colour depth is either the number of bits used to indicate the color of a single pixel, in a bitmapped image or video frame buffer, or the number of bits used for each color component of a single pixel. High-end laptops have 24-bit colour depth.	30 bit
Output colour depth	24 bit
Input greyscale depth	10 bit
Output greyscale depth	8 bit
Output monochrome depth	1 bit
ADF scan speed (b/w, A4)	45 ppm
ADF scan speed (colour, A4)	45 ppm

Design
Scanner type Indicates the type of scanner this product is.	Sheet-fed scanner
Product colour The colour e.g. red, blue, green, black, white.	Black
Built-in display A display which is part of the product, so you do not need to attach another display.

Performance
Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.	CIS
Light source	RGB LED
Image quality improvement	Grain reduction, Colour restoration
Scan to	E-mail, Network folder
Ultrasonic sensor

Input capacity
Standard input capacity The number of sheets of paper that can be held by a device.	100 sheets

Paper handling
Scanning media types supported	Photo paper
Maximum ISO A-series paper size The maximum paper size the device can handle, defined by ISO A-series.	A4
Media thickness (min)	0.3 mm

Ports & interfaces
USB port The device features a socket into which a USB cable can be plugged.
USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.	3.2 Gen 1 (3.1 Gen 1)
Standard interfaces Most common industry-standard communication protocols ranging from RS-232, RS-422, RS-423, RS-485, and LVDS to USB.	USB 3.2 Gen 1 (3.1 Gen 1), Wireless LAN

Power
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	17 W
Power consumption (standby) The amount of electricity that is consumed when the product is on standby.	9.2 W
Power consumption (off)	0.1 W
AC input frequency	50/60 Hz
Sleep mode

Network
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11b,802.11g,Wi-Fi 4 (802.11n)

Features
Country of origin Country where the device is made. Aka Country of manufacture (COM).	Indonesia

Packaging data
Quantity per pack	1 pc(s)
Package width The distance from one side of the packaging to the other.	256 mm
Package depth The distance from the front to the back of the packaging.	369 mm
Package height The distance from the top to the bottom of the packaging.	294 mm
Package weight Weight of the packaged product.	4.99 kg

System requirements
Compatible operating systems List of desktop operating systems tested as compatible with this product.	Mac OS X 10.11.x, Mac OS X 10.12.x, Windows 10, Windows 7, Windows 7, 64-Bit-Version, Windows 8 (32/64 Bit)
Windows operating systems supported Windows vesions wich can be used with the device.	Windows 10,Windows 7,Windows 7 x64,Windows 8,Windows 8 x64
Mac operating systems supported Mac operating systems e.g. OS X can be used with the device.	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	5 - 35 °C
Operating relative humidity (H-H)	15 - 80%

Weight & dimensions
Width The measurement or extent of something from side to side.	296 mm
Depth The distance from the front to the back of something.	169 mm
Height The measurement of the product from head to foot or from base to top.	176 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	3.7 kg

Packaging content
Cables included	USB
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.
AC adapter included
Cleaning cloth
Drivers included
Bundled software Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer.	Epson ScanSmart

Other features
Output resolutions	300, 600 dpi
Image formats supported The type of image files that the device can use/display e.g. gif, JPEG (jpg).	JPEG,TIFF

Logistics data
Products per pallet Quantity of a single product per pallet. If more than one product is packed per carton; this is the number of products (not number of cartons) per shipping pallet.	63 pc(s)
Products per pallet layer	9 pc(s)
Products per pallet layer (UK)	11 pc(s)
Products per pallet (UK)	77 pc(s)
