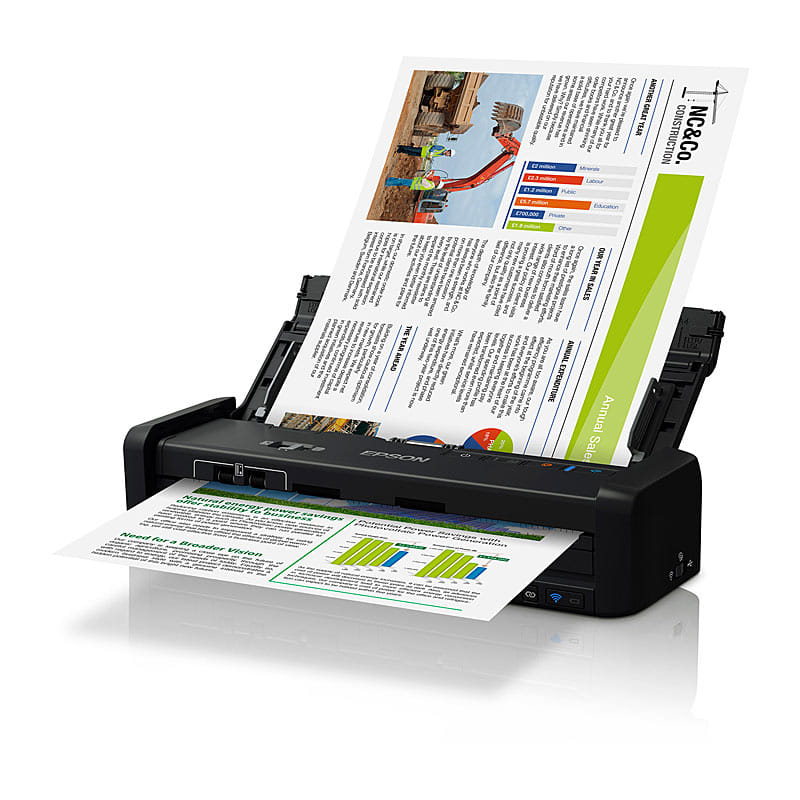

Epson WorkForce DS-360W Compact Sheet-Fed Portable Scanner

Scanning
Maximum scan size	215.9 x 1117.6 mm
Optical scanning resolution How many pixels a scanner can see. Most commonly, this is measured in dots per inch (dpi).For example, a typical flatbed scanner will use a scanning head with 300 sensors per inch, so it can sample 300 dots per inch (dpi) in one direction. To scan in the other direction, it will move the scanning head along the page, stopping 300 times per inch, so it can scan 300 dpi in the other direction as well. This scanner would have an optical resolution of 300 x 300 dpi. Some manufacturers stop the scanning head more frequently as it moves down the page, so their machines have resolutions of 300 x 600 dpi or 300x1200 dpi.	600 x 600 DPI
Colour scanning Indicates whether this product scans in colour.
Duplex scanning Feature of computer scanners and multifunction printers (MFPs) that allows the automatic scanning of a sheet of paper on both sides.
Input colour depth Colour depth of the input into the product. The colour depth is either the number of bits used to indicate the color of a single pixel, in a bitmapped image or video frame buffer, or the number of bits used for each color component of a single pixel. High-end laptops have 24-bit colour depth.	48 bit
Output colour depth	48 bit
ADF scan speed (b/w, A4)	50 ppm
ADF scan speed (colour, A4)	50 ppm

Design
Scanner type Indicates the type of scanner this product is.	Sheet-fed scanner
Product colour The colour e.g. red, blue, green, black, white.	Black
Built-in display A display which is part of the product, so you do not need to attach another display.

Performance
Sensor type A sensor is a convertor than measures a physical quality (light, temperature etc.) and displays this electronically on a device.	CIS
Light source	RGB LED
Scan file formats	BMP, JPG, PDF, TIFF
Daily duty cycle (max) The maximum percentage of time a machine or piece of equipment can be in operation for in one day in relation to the time it must remain out of operation. For instance, a max daily duty cycle of 30 percent means it will operate for a maximum 30 percent of the day and then not be used for the other 70 percent of the day.	500 pages
Scan to	E-mail, FTP
Scan drivers	TWAIN

Input capacity
Auto document feeder (ADF) input capacity Number of sheets this product can hold in its ADF tray; expressed in sheets	20 sheets

Paper handling
Scanning media types supported	Business Card, Envelopes, Post Card(JPN)
Maximum ISO A-series paper size The maximum paper size the device can handle, defined by ISO A-series.	A4
ISO A-series sizes (A0...A9) Different sizes of paper from A0 (big) to A9 (small). A4 is the most common size used for printing documents.	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
Letter
Legal
Auto Document Feeder (ADF) media weight	52 - 230 g/m²

Ports & interfaces
USB port The device features a socket into which a USB cable can be plugged.
USB version Universal Serial Bus (USB) is an industry standard developed in the mid-1990s that defines the interface used for connection, communication and power supply between computers and electronic devices. Every new version - for example 1.1, 2.0, 3.0 - is much faster than the previous one.	3.2 Gen 1 (3.1 Gen 1)
USB connector type The type of USB connector/port that this product has.	Micro-USB

Power
Power supply type The type of power supply which this product uses.	AC
Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.	11 W
Power consumption (off)	1.5 W
AC input frequency	50/60 Hz
Sleep mode
Input voltage The voltage (V) which is required to power the product.	100 - 240 V
Power consumption (sleep)	0.8 W

Network
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11b, 802.11g, Wi-Fi 4 (802.11n)

Packaging data
Quantity per pack	1 pc(s)

System requirements
Windows operating systems supported Windows vesions wich can be used with the device.
Mac operating systems supported Mac operating systems e.g. OS X can be used with the device.

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	5 - 35 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-25 - 60 °C
Operating relative humidity (H-H)	15 - 80%
Storage relative humidity (H-H)	15 - 85%

Weight & dimensions
Width The measurement or extent of something from side to side.	288 mm
Depth The distance from the front to the back of something.	88.5 mm
Height The measurement of the product from head to foot or from base to top.	67.5 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	1.3 kg

Packaging content
Cables included	AC, USB
