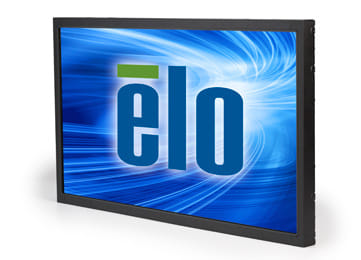

Elo Touch Solution 3243L, 80 cm (31.5"), 425 cd/m
The Elo Touch Solutions 3243L 32-inch full HD open-frame touchmonitor is available with a choice of two multi-touch touchscreen technologies, zero-bezel Projected Capacitive (PCAP) or IntelliTouch Plus surface acoustic wave. The PCAP touchscreen offers a fast and extremely sensitive response similar to the experience on mobile devices and is compatible with Windows 7, Windows 8 and Windows10 operating systems with up to 10 touches recognized simultaneously.
IntelliTouch Plus surface acoustic wave dual-touch offers undistorted display clarity due to use of clear glass. State-of-the-art HD display technology is utilized including a high contrast/brightness LED-backlit LCD panel, extended color gamut with movie/ gaming/ photo modes, black level adjustment, and on-screen menu enhancements.
The 3243L touchmonitor is less than 2.3-inches (58mm) in total thickness. It also incorporates an LED-based LCD panel that reduces power consumption and heat enabling thinner and smaller kiosk designs for various applications in retail, hotels, gaming, transportation and other commercial uses. The touchscreen glass is tested with robust “ball-drop" requirements supporting applications in demanding public access environments.
The comprehensive range of features includes analog and digital interfaces, multi-lingual on-screen display (OSD), mounting VESA standard, mounting brackets, cabled remote on-screen display (OSD), and worldwide compliance.
IntelliTouch Plus surface acoustic wave dual-touch offers undistorted display clarity due to use of clear glass. State-of-the-art HD display technology is utilized including a high contrast/brightness LED-backlit LCD panel, extended color gamut with movie/ gaming/ photo modes, black level adjustment, and on-screen menu enhancements.
The 3243L touchmonitor is less than 2.3-inches (58mm) in total thickness. It also incorporates an LED-based LCD panel that reduces power consumption and heat enabling thinner and smaller kiosk designs for various applications in retail, hotels, gaming, transportation and other commercial uses. The touchscreen glass is tested with robust “ball-drop" requirements supporting applications in demanding public access environments.
The comprehensive range of features includes analog and digital interfaces, multi-lingual on-screen display (OSD), mounting VESA standard, mounting brackets, cabled remote on-screen display (OSD), and worldwide compliance.
| Display | |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 80 cm (31.5") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1920 x 1080 pixels |
| Display type Type of display (screen) e.g. LCD. | LED |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | Full HD |
| Display technology The technology used in the display e.g. plasma, LED. | TFT |
| High frequency rate | 60 Hz |
| Aspect ratio The aspect ratio is the ratio of the width of a shape to its height. For example, 4:3 is common for standard displays and 16:9 is the ratio for Widescreen TV. | 16:9 |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 8 ms |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 425 cd/m² |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 3000:1 |
| Horizontal scan range | 31 - 80 kHz |
| Vertical scan range | 47 - 63 Hz |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 178° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 178° |
| Display viewable area (HxV) | 700.4 x 394.9 mm |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 640 x 480 (VGA),800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 720 (HD 720),1280 x 960,1360 x 768 (WXGA),1366 х 768,1440 x 900,1600 x 1200 (UXGA),1680 x 1050 (WSXGA+),1920 x 1080 (HD 1080) |
| Display number of colours | 16.78 million colours |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Performance | |
| Touch technology Technology of touch sensetive screen e.g. dual-touch. | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Touchscreen type There are a variety of touchscreen technologies that have different methods of sensing touch, including resistive and capacitive. | Capacitive |
| Number of simultaneous touchpoints | 10 |
| Built-in camera The product has an integrated camera. |
 |
| On Screen Display (OSD) |
 |
| Number of OSD languages | 8 |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 50000 h |
| HDCP High-bandwidth Digital Content Protection (HDCP) is a form of digital copy protection to prevent copying of digital audio and video content as it travels across connections. |
|
| Network | |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ports & interfaces | |
| USB Touch port |
|
| HDMI HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. |
|
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| HDMI version | 1.3 |
| Ergonomics | |
| Panel mounting interface The product can be used wih VESA mounting interfaces. | 400 x 200 mm |
| VESA mounting |
|
| Power | |
| Energy efficiency class (old) | B |
| Power supply type The type of power supply which this product uses. | AC |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 47.1 W |
| Power consumption (off) | 0.1 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width (without stand) | 74.7 cm |
| Depth (without stand) | 5.5 cm |
| Height (without stand) | 45.3 cm |
| Weight (without stand) | 11.2 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 992 mm |
| Package depth The distance from the front to the back of the packaging. | 296 mm |
| Package height The distance from the top to the bottom of the packaging. | 672 mm |
| Package weight Weight of the packaged product. | 17.7 kg |
| Packaging content | |
| Cables included | AC, HDMI, USB, VGA |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| AC adapter included |
|
| Other features | |
| Full HD Full High Definition (HD) means that a display supports a resolution of 1920 x 1080 pixel, and has a digital TV connection. |
|
| TV tuner integrated Device has an in-built TV tuner. |
|
| SKU | 504623 |
| MPN | E304029 |
| Brand | Elo Touch |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.elotouch.com/ |
