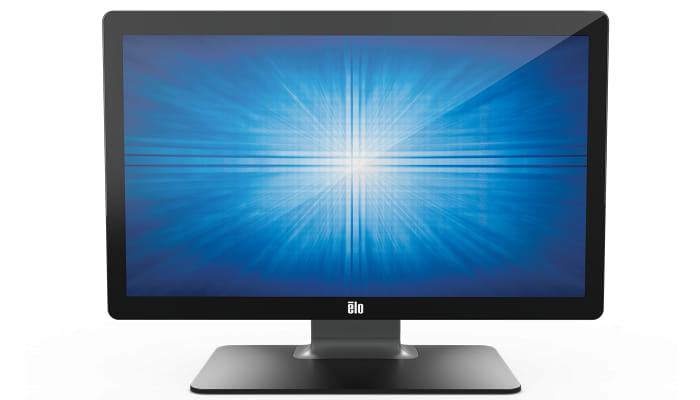

Elo Touch Solution 2702L, 68.6 cm (27"), 300 cd/m 2, Full HD, LCD/TFT, 14 ms, 1000:1
The Elo 2702L 27-inch touchscreen monitor delivers a professional-grade interactive solution with Elo s industry-leading TouchPro PCAP technology featuring edge-to-edge glass and enabling up to 10 simultaneous touches. The clear glass touchscreen provides exceptional image clarity, resolution, and light transmission for vivid images and details. Backed by a three-year warranty, the feature rich touchscreen monitor is equipped with dual built-in speakers and VGA and HDMI video connectors. With a compact form factor, clean design aesthetic and flexible mounting options, these touchscreens are well-suited for POS, interactive digital signage and self-service.
Designed for commercial use, the new Elo touchscreen monitor makes business operations easy delivering energy efficiency and versatile accessories. The 2702L accessories include MSR, barcode scanner, fingerprint reader, NFC, customer facing display, handles and privacy screens. Third party peripherals can be easily added as well with the integrated USB 2.0 hub.
Designed for commercial use, the new Elo touchscreen monitor makes business operations easy delivering energy efficiency and versatile accessories. The 2702L accessories include MSR, barcode scanner, fingerprint reader, NFC, customer facing display, handles and privacy screens. Third party peripherals can be easily added as well with the integrated USB 2.0 hub.
| Display | |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 68.6 cm (27") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1920 x 1080 pixels |
| Display type Type of display (screen) e.g. LCD. | TFT-LCD |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | Full HD |
| Display technology The technology used in the display e.g. plasma, LED. | LCD/TFT |
| High frequency rate | 60 Hz |
| Aspect ratio The aspect ratio is the ratio of the width of a shape to its height. For example, 4:3 is common for standard displays and 16:9 is the ratio for Widescreen TV. | 16:9 |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 14 ms |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 300 cd/m² |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 1000:1 |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 178° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 178° |
| Display viewable area (HxV) | 597.88 x 336.31 mm |
| Digital horizontal frequency | 30 - 82 kHz |
| Digital vertical frequency | 50 - 75 Hz |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 640 x 400,640 x 480 (VGA),720 x 400,800 x 600 (SVGA),1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 800 (WXGA),1366 x 768,1440 x 900 (WXGA+),1680 x 1050 (WSXGA+) |
| Display number of colours | 16.78 million colours |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Silver |
| International Protection (IP) code The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes". | IPX1 |
| Performance | |
| Touch technology Technology of touch sensetive screen e.g. dual-touch. | Multi-touch |
| Touchscreen technology | Capacitive |
| Touchscreen type There are a variety of touchscreen technologies that have different methods of sensing touch, including resistive and capacitive. | Tabletop |
| Number of simultaneous touchpoints | 10 |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
 |
| RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers. | 4 W |
| Built-in camera The product has an integrated camera. |
 |
| Built-in microphone Microphone that is found inside the product. |
|
| Number of OSD languages | 10 |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Russian |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 50000 h |
| OmniTapps Multitouch compatibility The device can use OmniTapps Multitouch, which is a software suite which allows you to create websites which are multi-touch environments. |
|
| Ports & interfaces | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Micro-USB ports quantity | 4 |
| HDMI HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. |
|
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 1 |
| Headphone outputs Number of sockets /ports where headphones are connected. | 1 |
| Ergonomics | |
| Panel mounting interface The product can be used wih VESA mounting interfaces. | 100 x 100 mm |
| Wall mountable The product can be mounted on (attached to ) a wall. |
|
| VESA mounting |
|
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 28 W |
| Power consumption (standby) The amount of electricity that is consumed when the product is on standby. | 0.45 W |
| Power consumption (off) | 0.38 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 95% |
| Weight & dimensions | |
| Weight (without stand) | 7.24 kg |
| Width (with stand) | 647.6 mm |
| Depth (with stand) | 233 mm |
| Height (with stand) | 450.9 mm |
| Weight (with stand) | 10.5 kg |
| Dimensions (W x D x H) with stand | 647.6 x 233 x 450.9 mm |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 764 mm |
| Package depth The distance from the front to the back of the packaging. | 322 mm |
| Package height The distance from the top to the bottom of the packaging. | 560 mm |
| Package weight Weight of the packaged product. | 14.3 kg |
| Packaging content | |
| Cables included | AC, Audio (3.5mm), HDMI, USB, VGA |
| Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly. |
|
| AC adapter included |
|
| Other features | |
| Full HD Full High Definition (HD) means that a display supports a resolution of 1920 x 1080 pixel, and has a digital TV connection. |
|
| SKU | 499130 |
| MPN | E351997 |
| Brand | Elo Touch |
| Product Condition | Brand New/Unused |
| Product Use | General |
