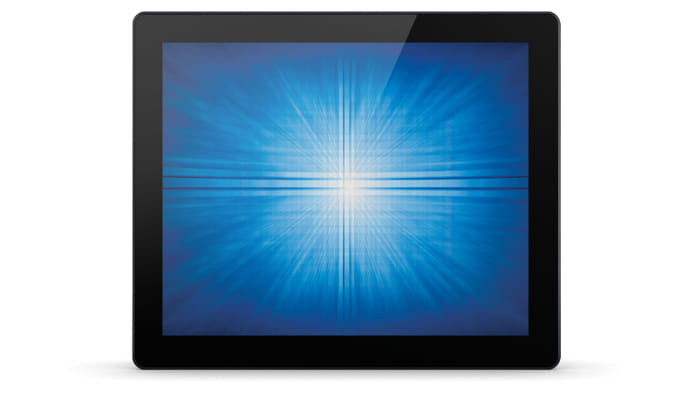

Elo Touch Solution 1790L, 43.2 cm (17"), 225 cd/m2, LCD/TFT, 5:4, 1280 x 1024 pixels, 5:4
The Elo 1790L 17-inch open-frame LCD touch display features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch with proven Elo expertise and reliability built in. The 1790L provides stable, drift-free operation with outstanding image clarity and light transmission "for accurate touch responses and vivid images. Instantly grabbing and holding users attention, the 17-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
The 1790L is available with a choice of industry-leading touch technologies, in both single touch and multi touch versions. The seamless zero-bezel 17-inch multi-touch display is available with our latest multi-touch TouchPro PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality "both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch five-wire resistive, IntelliTouch SAW or SecureTouch anti-vandal SAW.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
The 1790L is available with a choice of industry-leading touch technologies, in both single touch and multi touch versions. The seamless zero-bezel 17-inch multi-touch display is available with our latest multi-touch TouchPro PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality "both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch five-wire resistive, IntelliTouch SAW or SecureTouch anti-vandal SAW.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
| Display | |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 43.2 cm (17") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1280 x 1024 pixels |
| Display technology The technology used in the display e.g. plasma, LED. | LCD/TFT |
| Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio. | 5:4 |
| Aspect ratio The aspect ratio is the ratio of the width of a shape to its height. For example, 4:3 is common for standard displays and 16:9 is the ratio for Widescreen TV. | 5:4 |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 5 ms |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 225 cd/m² |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 800:1 |
| Horizontal scan range | 30 - 82 kHz |
| Vertical scan range | 50 - 75 Hz |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 170° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 160° |
| Display viewable area (HxV) | 337.92 x 270.336 mm |
| Digital horizontal frequency | 30 - 82 kHz |
| Digital vertical frequency | 50 - 75 Hz |
| Backlight type | LED |
| LED backlight A backlight is a form of illumination used in liquid crystal displays (LCDs). One type of backlight is made by LEDs, which can be either white or RGB (red green blue). White LEDs are used most often in notebooks and desktop screens, and in virtually all mobile LCD screens. RGB LEDs for backlighting are found in high-end color proofing displays such as HP DreamColor LP2480zx monitor or selected HP EliteBook notebooks, as well as newer consumer grade displays such as Dell's Studio series laptops which have an optional RGB LED display. |
 |
| Display number of colours | 16.78 million colours |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Performance | |
| Touch technology Technology of touch sensetive screen e.g. dual-touch. | Single-touch |
| Touchscreen technology | Surface acoustic wave |
| Touchscreen type There are a variety of touchscreen technologies that have different methods of sensing touch, including resistive and capacitive. | Kiosk |
| Built-in camera The product has an integrated camera. |
 |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 50000 h |
| Ports & interfaces | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| HDMI HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. |
|
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 1 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| Ergonomics | |
| Panel mounting interface The product can be used wih VESA mounting interfaces. | 75 x 75,100 x 100 mm |
| Wall mountable The product can be mounted on (attached to ) a wall. |
|
| VESA mounting |
|
| Power | |
| Power supply type The type of power supply which this product uses. | DC |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 17.8 W |
| Power consumption (off) | 0.5 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 95% |
| Sustainability | |
| Sustainability certificates | RoHS |
| Weight & dimensions | |
| Weight (without stand) | 3.6 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 476 mm |
| Package depth The distance from the front to the back of the packaging. | 183 mm |
| Package height The distance from the top to the bottom of the packaging. | 418 mm |
| Package weight Weight of the packaged product. | 5.6 kg |
| Other features | |
| Full HD Full High Definition (HD) means that a display supports a resolution of 1920 x 1080 pixel, and has a digital TV connection. |
|
| SKU | 535097 |
| MPN | E326942 |
| Brand | Elo Touch |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Product Features | Touchscreen |
