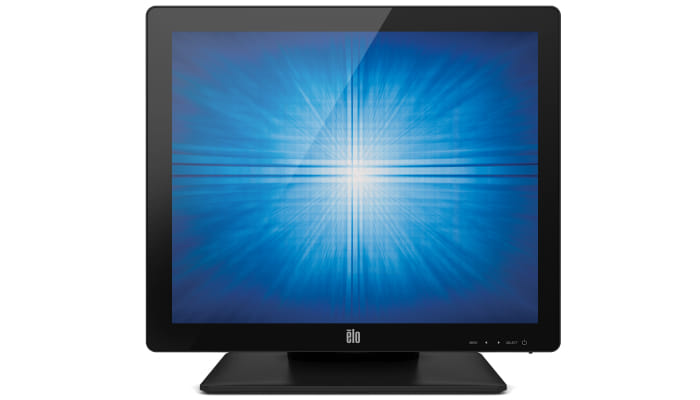

Elo Touch Solution 1517L Rev B, 38.1 cm (15"), 200 cd/m , 16 ms, 700:1, 1024 x 768 pixels, TFT
The 1517L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems are found.
The 1517L is offered with AccuTouch five-wire resistive, IntelliTouch or iTouch zero-bezel surface acoustic wave technology. AccuTouch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. IntelliTouch and iTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications.
The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
The 1517L touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
- Sleek and thin design with built for touch reliability.
- Flexible and space-saving.
- 60% Energy savings using LED technology .
- Zero-bezel touchscreen versions for a smooth, easy-to-clean surface.
- Antiglare or Clear glass.
- Removable base and mounting options including VESA, wall and pole-mounting for installation flexibility and capped through-mount holes on base for table-top security.
- 15 diagonal active matrix TFT LED-backlit LCD.
- Active Display Area: 11.97 x 8.98 inches/304 x 228 mm.
- 4:3 aspect ratio.
- 1024 x 768 native resolution. Other resolutions supported.
- USB and RS232 serial connections.
- Touch technology: AccuTouch (single- touch), IntelliTouch (single-touch) and iTouch (single-touch).
- Typical power consumption: 12W, internal and external power options.
The 1517L is offered with AccuTouch five-wire resistive, IntelliTouch or iTouch zero-bezel surface acoustic wave technology. AccuTouch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. IntelliTouch and iTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications.
The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
The 1517L touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
- Sleek and thin design with built for touch reliability.
- Flexible and space-saving.
- 60% Energy savings using LED technology .
- Zero-bezel touchscreen versions for a smooth, easy-to-clean surface.
- Antiglare or Clear glass.
- Removable base and mounting options including VESA, wall and pole-mounting for installation flexibility and capped through-mount holes on base for table-top security.
- 15 diagonal active matrix TFT LED-backlit LCD.
- Active Display Area: 11.97 x 8.98 inches/304 x 228 mm.
- 4:3 aspect ratio.
- 1024 x 768 native resolution. Other resolutions supported.
- USB and RS232 serial connections.
- Touch technology: AccuTouch (single- touch), IntelliTouch (single-touch) and iTouch (single-touch).
- Typical power consumption: 12W, internal and external power options.
| Display | |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 38.1 cm (15") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1024 x 768 pixels |
| Display type Type of display (screen) e.g. LCD. | TFT |
| Aspect ratio The aspect ratio is the ratio of the width of a shape to its height. For example, 4:3 is common for standard displays and 16:9 is the ratio for Widescreen TV. | 4:3 |
| Response time The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.) | 16 ms |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 200 cd/m² |
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 700:1 |
| Horizontal scan range | 31.5 - 60 kHz |
| Vertical scan range | 56 - 75 Hz |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 160° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 140° |
| Display viewable area (HxV) | 228 x 304 mm |
| LED backlight A backlight is a form of illumination used in liquid crystal displays (LCDs). One type of backlight is made by LEDs, which can be either white or RGB (red green blue). White LEDs are used most often in notebooks and desktop screens, and in virtually all mobile LCD screens. RGB LEDs for backlighting are found in high-end color proofing displays such as HP DreamColor LP2480zx monitor or selected HP EliteBook notebooks, as well as newer consumer grade displays such as Dell's Studio series laptops which have an optional RGB LED display. |
 |
| Supported graphics resolutions The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels. | 720 x 400,1024 x 768 (XGA),640 x 480 (VGA),800 x 600 (SVGA) |
| Display number of colours | 16.78 million colours |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Glass thickness | 4.3 cm |
| Performance | |
| Touchscreen type There are a variety of touchscreen technologies that have different methods of sensing touch, including resistive and capacitive. | Tabletop |
| Number of OSD languages | 8 |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 50000 h |
| Ports & interfaces | |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| VGA (D-Sub) ports quantity Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM. | 1 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Ergonomics | |
| Panel mounting interface The product can be used wih VESA mounting interfaces. | 75 x 75 mm |
| Power | |
| Power supply type The type of power supply which this product uses. | AC/DC |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 12 W |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width (with stand) | 358 mm |
| Depth (with stand) | 197 mm |
| Height (with stand) | 319 mm |
| Weight (with stand) | 4.3 kg |
| Dimensions (W x D x H) with stand | 358 x 197 x 319 mm |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 487 mm |
| Package depth The distance from the front to the back of the packaging. | 231 mm |
| Package height The distance from the top to the bottom of the packaging. | 485 mm |
| Package weight Weight of the packaged product. | 7.3 kg |
| Other features | |
| Voltage tolerance | 5% |
| SKU | 457169 |
| MPN | E144246 |
| Brand | Elo Touch |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
