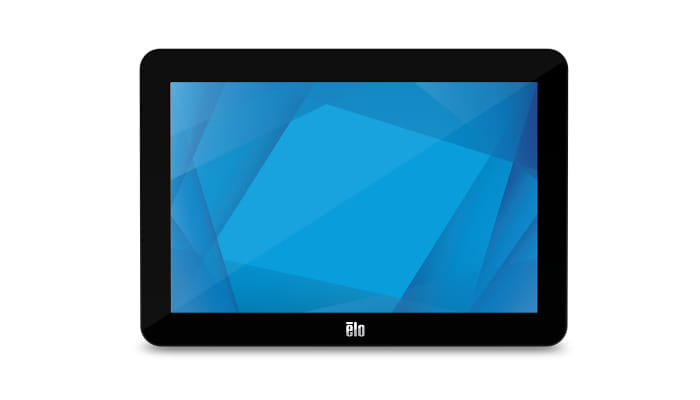

Elo Touch Solution 1002L, 25.6 cm (10.1"), 315 cd/m
The Elo 1002L Touchscreen Monitor is designed with the same seamless style that spans across the entire line up of 02-Series Monitors. With a compact form factor and clean design for easy integration, the 1002L offers the flexibility to install as a traditional POS terminal or a customer facing point of interaction - making it well-suited for point-of-sale, self-service, signage and hospitality applications. And with a variety of peripherals, the monitor can be transformed to meet the demands of almost any blueprint.
Single Cable Connection
The 1002L provides a USB Type-C interface that provides touch, video and power. By reducing the number of cables required for any set up from 3 to 1, installation and servicing is a breeze. In case your PC isn’t equipped with USB Type-C yet, you can still use traditional HDMI or VGA to connect to your PC.
One for You. One for Your Customers
The 02-Series offers dual functionality. Use it as a traditional POS terminal or customer facing display
Display
Display diagonal
Size of the display for this product, measured diagonally, usually in inches.
25.6 cm (10.1")
Display resolution
The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image.
1280 x 800 pixels
Panel type
TFT
HD type
Type of supported High Definition (e.g. Full HD, 4K Ultra HD).
HD
Display technology
The technology used in the display e.g. plasma, LED.
LCD
Native aspect ratio
The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio.
16:10
Response time
The response time is the time difference between the moment that a source (for example a video card) sends a signal and that equipment (for example a monitor) receives or display the signal. (Used abbreviations: R/F = Rise and Fall.)
29 ms
Display brightness
Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'.
315 cd/m²
Contrast ratio (typical)
The difference in light intensity between the brightest white and the darkest black.
800:1
Horizontal scan range
31.5 - 80 kHz
Viewing angle, horizontal
Maximum horizontal angle at which a display can be viewed with acceptable visual performance.
170°
Viewing angle, vertical
Maximum vertical angle at which a display can be viewed with acceptable visual performance.
170°
Backlight type
LED
LED backlight
A backlight is a form of illumination used in liquid crystal displays (LCDs). One type of backlight is made by LEDs, which can be either white or RGB (red green blue). White LEDs are used most often in notebooks and desktop screens, and in virtually all mobile LCD screens. RGB LEDs for backlighting are found in high-end color proofing displays such as HP DreamColor LP2480zx monitor or selected HP EliteBook notebooks, as well as newer consumer grade displays such as Dell's Studio series laptops which have an optional RGB LED display.
Supported graphics resolutions
The graphic resolutions that can be displayed by the device. The graphic resolution describes the width and height dimensions of a display, such as a computer monitor, measured in pixels.
640 x 480 (VGA),800 x 600 (SVGA),1024 x 768 (XGA),1280 x 800 (WXGA),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA)
Viewable size, horizontal
The viewable size is often somewhat smaller than the actual size of a monitor, because there is a border around the image.
21.7 cm
Viewable size, vertical
13.6 cm
Display number of colours
262144 colours
Design
Product colour
The colour e.g. red, blue, green, black, white.
Black
International Protection (IP) code
The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".
IPX1
Performance
Touch technology
Technology of touch sensetive screen e.g. dual-touch.
Multi-touch
Touchscreen technology
Projected capacitive system
Touchscreen type
There are a variety of touchscreen technologies that have different methods of sensing touch, including resistive and capacitive.
Multi-user
Number of simultaneous touchpoints
10
Built-in speaker(s)
The device contains speaker(s) to produce sound.
RMS rated power
RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers.
4 W
Number of speakers
The quantity of speakers included in/with the product.
2
On Screen Display (OSD) languages
Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Mean time between failures (MTBF)
Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism.
50000 h
Ports & interfaces
Built-in USB hub
Whether or not the device features a USB hub to connect more than one other device via USB.
USB 2.0 ports quantity
Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.
1
USB Touch port
USB Touch ports quantity
1
HDMI
HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
HDMI ports quantity
The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.
1
VGA (D-Sub) ports quantity
Number of VGA (D-Sub) ports (connecting interfaces) in the device. The VGA (D-Sub) connector is a 15 pin connector between a computer and a monitor. It was first introduced in 1987 by IBM.
1
DVI port
Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor.
Audio input
The type of audio input that the device requires, and the connection needed.
1
Ergonomics
Height adjustment
The part of the device that can be adjusted to change the height.
Panel mounting interface
The product can be used wih VESA mounting interfaces.
75 x 75 mm
Wall mountable
The product can be mounted on (attached to ) a wall.
VESA mounting
Power
Energy efficiency class (old)
A+
Power supply type
The type of power supply which this product uses.
DC
Power consumption (typical)
Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage.
7.43 W
Power consumption (standby)
The amount of electricity that is consumed when the product is on standby.
1.26 W
Power consumption (off)
0.2 W
AC input voltage
The voltage of the AC electricity that is inputted into the product.
100 - 240 V
AC input frequency
50 / 60 Hz
AC adapter output voltage
12 V
Energy efficiency scale
A+++ to D
Operational conditions
Operating temperature (T-T)
The minimum and maximum temperatures at which the product can be safely operated.
0 - 40 °C
Storage temperature (T-T)
The minimum and maximum temperatures at which the product can be safely stored.
-20 - 60 °C
Operating relative humidity (H-H)
20 - 80%
Storage relative humidity (H-H)
10 - 95%
Certificates
Certification
Canada cUL, IC
Europe CE
Japan VCCI
United States UL, FCC
China CCC
Korea, KCC, e-standby
Australia RCM
Mexico NOM
Taiwan BSMI
International CB
RoHS, China RoHS, WEEE, REACH
India BIS
Russia EAC
Weight & dimensions
Width (without stand)
25 cm
Depth (without stand)
2.84 cm
Height (without stand)
16.5 cm
Weight (without stand)
884.2 g
Packaging data
Package width
The distance from one side of the packaging to the other.
315 mm
Package depth
The distance from the front to the back of the packaging.
144 mm
Package height
The distance from the top to the bottom of the packaging.
