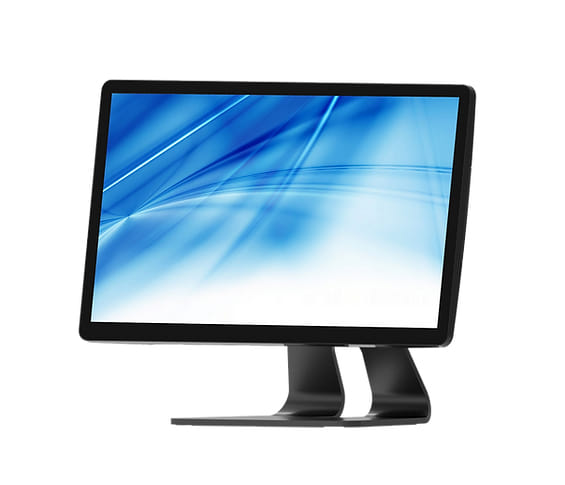

Element POS M15 FHD, Digital signage flat panel, 39.6 cm (15.6"), LCD, 1920 x 1080 pixels
Element M15 FHD is a 15.6 Full Flat Screen LCD Digital Display with Touch and Non Touch options. It includes a 7H Hardness durable glass with 11.95mm Slim Bezel free design and 1920 x 1080 (FHD) Resolution.
With its sleek, slim design (27.2mm width) the Element M15 FHD Digital Display is capable of multi roles such as secondary customer display for POS, Kitchen Video System (KVS), Self Check In and Self Check Out, Self Service Terminals (Self Ordering), or act as Digital Signage Display / Information Display.
With its sleek, slim design (27.2mm width) the Element M15 FHD Digital Display is capable of multi roles such as secondary customer display for POS, Kitchen Video System (KVS), Self Check In and Self Check Out, Self Service Terminals (Self Ordering), or act as Digital Signage Display / Information Display.
| Display | |
| Panel type | TFT |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 39.6 cm (15.6") |
| Display technology The technology used in the display e.g. plasma, LED. | LCD |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1920 x 1080 pixels |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 405 cd/m² |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | Full HD |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
 |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Multi-touch |
|
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 1000:1 |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 178° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 178° |
| Surface hardness | 7H |
| Ports & interfaces | |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor. |
 |
| VGA (D-Sub) input ports Sockets in the device for VGA (D-Sub) inputs, which are sockets with 15 holes. The 15-pin VGA connector is found on many video cards, computer monitors, and high definition television sets. | 1 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB connector type The type of USB connector/port that this product has. | USB Type-C |
| USB Type-C DisplayPort Alternate Mode |
|
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Number of built-in speakers | 2 |
| RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers. | 4 W |
| Design | |
| Product design The creation of a plan or convention for the construction of an object or a system. | Digital signage flat panel |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| VESA mounting |
|
| Panel mounting interface The product can be used wih VESA mounting interfaces. | 100 x 100 mm |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 50 W |
| Input voltage The voltage (V) which is required to power the product. | 12 V |
| Computer system | |
| Computer system |
|
| Built-in processor Whether or not a processor is built into the device. |
|
| Weight & dimensions | |
| Display width | 369.1 mm |
| Display depth | 27.2 mm |
| Display height | 223.7 mm |
| Display weight | 1.81 kg |
| Width (with stand) | 369.1 mm |
| Depth (with stand) | 169.4 mm |
| Height (with stand) | 290.5 mm |
| Weight (with stand) | 3.81 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 470 mm |
| Package depth The distance from the front to the back of the packaging. | 340 mm |
| Package height The distance from the top to the bottom of the packaging. | 380 mm |
| Package weight Weight of the packaged product. | 5.78 kg |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| SKU | 724724 |
| MPN | TMETM15FHD001 |
| Brand | Element |
| Product Condition | Brand New/Unused |
| Screen Size (Inches) | 15.60 Inch |
| Refresh Rate (Hz) | 60Hz |
| Input | DisplayPort / DP, HDMI, USB-C, VGA / D-SUB |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.elementpos.co/ |
