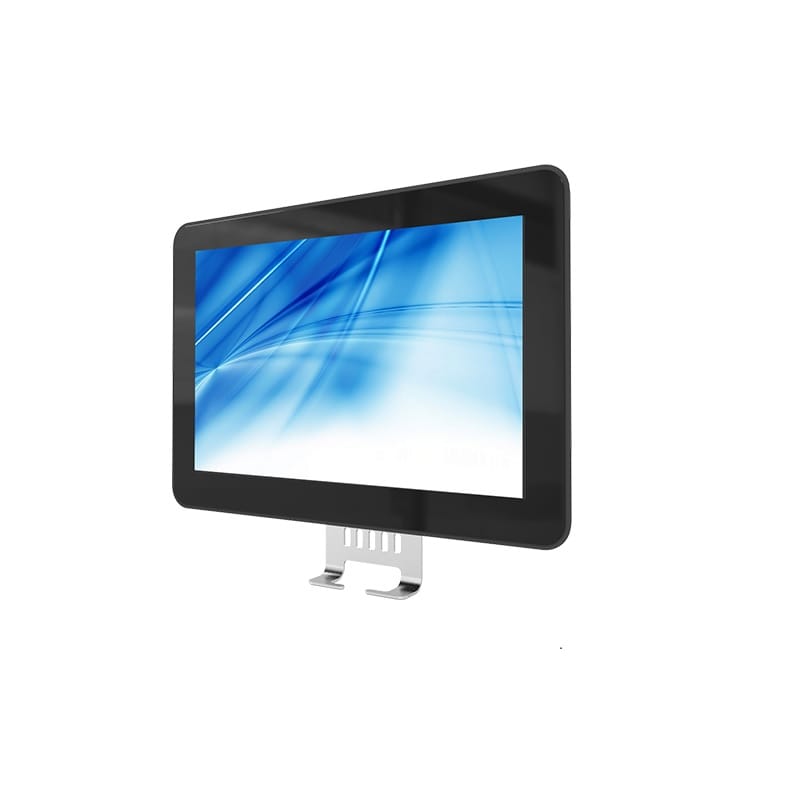

Element M10-OF Open Frame Touch Monitor 10.1" Display DP/HDMI/VGA Ports in Black
| Display | |
| Panel type | TFT |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 25.6 cm (10.1") |
| Display technology The technology used in the display e.g. plasma, LED. | LCD |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1280 x 800 pixels |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 425 cd/m² |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | WXGA |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
 |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Multi-touch |
|
| Contrast ratio (typical) The difference in light intensity between the brightest white and the darkest black. | 1300:1 |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 170° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 170° |
| Ports & interfaces | |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor. |
 |
| VGA (D-Sub) input ports Sockets in the device for VGA (D-Sub) inputs, which are sockets with 15 holes. The 15-pin VGA connector is found on many video cards, computer monitors, and high definition television sets. | 1 |
| DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data. | 1 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB ports quantity | 1 |
| USB connector type The type of USB connector/port that this product has. | USB Type-B |
| Audio (L/R) out The two sockets (ports) for transmitting left audio signal (white cable) and right audio signal (red cable). | 1 |
| DC-in jack The socket/plug where the DC electricity supply connects to the device. |
|
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Design | |
| Product design The creation of a plan or convention for the construction of an object or a system. | Digital signage flat panel |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| VESA mounting |
|
| Panel mounting interface The product can be used wih VESA mounting interfaces. | 100 x 100 mm |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 36 W |
| Input voltage The voltage (V) which is required to power the product. | 12 V |
| Computer system | |
| Computer system |
|
| Built-in processor Whether or not a processor is built into the device. |
|
| Weight & dimensions | |
| Display width | 260.7 mm |
| Display depth | 39.4 mm |
| Display height | 183.4 mm |
| Display weight | 1.4 kg |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 310 mm |
| Package depth The distance from the front to the back of the packaging. | 370 mm |
| Package height The distance from the top to the bottom of the packaging. | 160 mm |
| Package weight Weight of the packaged product. | 2.4 kg |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| SKU | 724709 |
| MPN | TMELM10OF001 |
| Brand | Element |
| Product Condition | Brand New/Unused |
| Refresh Rate (Hz) | 60Hz |
| Screen Resolution | 1280x800 |
| Input | HDMI, USB 2.0, VGA / D-SUB |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.elementpos.co/ |
