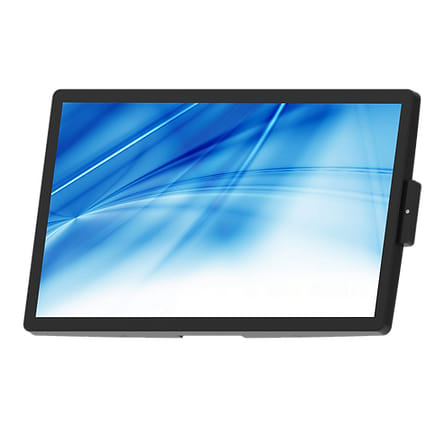

Element POS K22A, Interactive flat panel, 54.6 cm (21.5"), LCD, 1920 x 1080 pixels, Wi Fi
Element K22A is a 21.5 Android Full Flat Touch Screen LCD with 7H hardness durable glass with 16.16mm Slim Bezel free design and 1920 x 1080 (FHD) resolution.
With a sleek slim design (37.9mm width) the fanless Rockchip RK 3399, Quad core Cortex A72 up to 1.8GHz, 4GB RAM and 32GB storage is a noise free Panel PC is capable of multi roles such as Kitchen Video System (KVS), Self Check In and Self Check Out, Self Service Terminals (Self Ordering), or act as Digital Signage Display / Information Display.
With a sleek slim design (37.9mm width) the fanless Rockchip RK 3399, Quad core Cortex A72 up to 1.8GHz, 4GB RAM and 32GB storage is a noise free Panel PC is capable of multi roles such as Kitchen Video System (KVS), Self Check In and Self Check Out, Self Service Terminals (Self Ordering), or act as Digital Signage Display / Information Display.
| Display | |
| Panel type | TFT |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 54.6 cm (21.5") |
| Display technology The technology used in the display e.g. plasma, LED. | LCD |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 1920 x 1080 pixels |
| Display brightness Brightness is the amount of radiating light emitted from the screen. The brightness rating is measured in candellas per square meter, commonly known as 'nits'. | 250 cd/m² |
| HD type Type of supported High Definition (e.g. Full HD, 4K Ultra HD). | Full HD |
| Touchscreen A screen of a laptop, smartphone, etc., that responds to touch so you can control the interface using your fingers. |
 |
| Touchscreen technology | Capacitive |
| Number of simultaneous touchpoints | 10 |
| Multi-touch |
|
| Native aspect ratio The aspect ratio is the ratio of the width of an image to its height. The native aspect ratio is the one which the projector/display is particularly designed for. Images shown in native aspect ratio will utilize the entire resolution of the display and achieve maximum brightness. Images shown in other than native aspect ratio will always have less resolution and less brightness than images shown in native aspect ratio. | 16:9 |
| Viewing angle, horizontal Maximum horizontal angle at which a display can be viewed with acceptable visual performance. | 178° |
| Viewing angle, vertical Maximum vertical angle at which a display can be viewed with acceptable visual performance. | 178° |
| Surface hardness | 7H |
| Ports & interfaces | |
| HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards. | 1 |
| DVI port Digital Visual Interface (DVI) is a video display interface to connect a video source to a display device, such as a computer monitor. |
 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB ports quantity | 2 |
| USB connector type The type of USB connector/port that this product has. | USB Type-A, USB Type-C |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
|
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves. |
|
| Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office. | Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Card reader integrated The device includes a card reader e.g. a card reader in the disk bay of a computer or thin client to permit log-on using smart/pin cards. |
|
| Compatible memory cards Types of memory cards which can be used with this product. | MicroSD (TransFlash) |
| Audio | |
| Built-in speaker(s) The device contains speaker(s) to produce sound. |
|
| Number of built-in speakers | 2 |
| RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers. | 4 W |
| Design | |
| Product design The creation of a plan or convention for the construction of an object or a system. | Interactive flat panel |
| Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical. | Indoor |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| VESA mounting |
|
| Panel mounting interface The product can be used wih VESA mounting interfaces. | 100 x 100 mm |
| Performance | |
| Purpose What the product is used for. | Transportation |
| Power | |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 50 W |
| Input voltage The voltage (V) which is required to power the product. | 12 V |
| Computer system | |
| Computer system |
|
| Built-in processor Whether or not a processor is built into the device. |
|
| Processor manufacturer The manufacturer that produced the processor. | Rockchip |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | ARM Rockchip |
| Processor model The model number for the processor in a computer. | RK3399 |
| Processor architecture | ARM Cortex-A53+Cortex-A72 |
| Internal memory A computer's memory which is directly accessible to the CPU. | 4 GB |
| Internal storage capacity The amount e.g of data which can be stored inside the device. | 32 GB |
| Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices. | Android 9.0 |
| Weight & dimensions | |
| Display width | 511 mm |
| Display depth | 37.9 mm |
| Display height | 322.3 mm |
| Display weight | 6.52 kg |
| Width (with stand) | 511 mm |
| Depth (with stand) | 173 mm |
| Height (with stand) | 322.3 mm |
| Packaging data | |
| Package width The distance from one side of the packaging to the other. | 615 mm |
| Package depth The distance from the front to the back of the packaging. | 330 mm |
| Package height The distance from the top to the bottom of the packaging. | 450 mm |
| Package weight Weight of the packaged product. | 9.07 kg |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Other features | |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| Housing material What the casing of the product is made of. | Glass, Plastic, SECC |
| SKU | 724742 |
| MPN | TTETK22A002 |
| Brand | Element |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Stock Availability | Available for Shipping |
