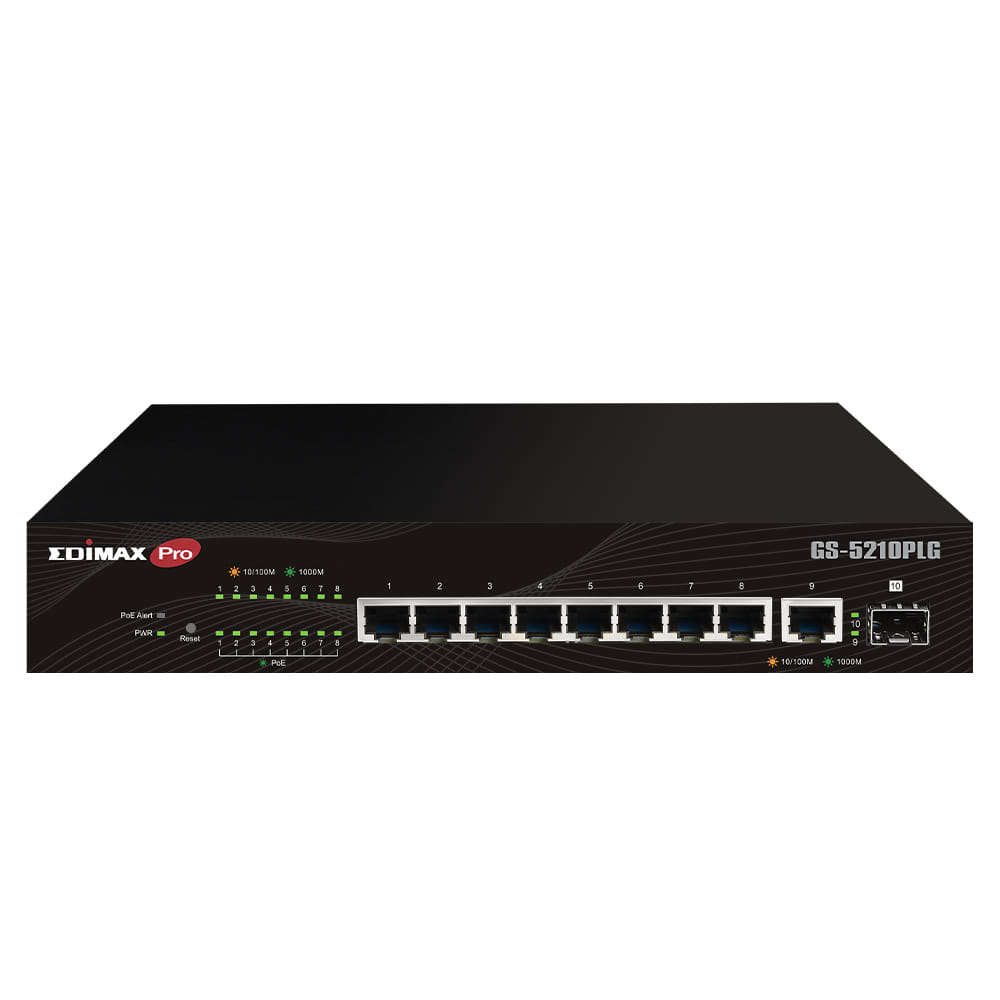

Edimax Switch GS 5210PLG, Managed, Gigabit Ethernet (10/100/1000), Gigabit Ethernet, Full duplex, Power over Ethernet (PoE), Rack mounting
Smartly Manage and Expand Your Gigabit Networks
10 Port Gigabit Long Range PoE Web Smart Switch GS 5210PLG
PoE Long Range Guaranteed 200M
Provides the PoE long range solution with guaranteed of 200 meters (656 ft.) , ideal for surveillance applications.
PoE Power Backfeed Protection
Each port is equipped with power backfeed protection to avoid damage done from the connected non standard PSEs (Power Sourcing Equipments) to the switch.
Flexible RJ45 and Fiber Uplinks
Equiped with 1 RJ45 and 1 SFP fiber optic uplinking capability, allows the switch to be flexibly deployed in multiple physical locations, such as branches, retail, or remote workgroup environments for larger network connections.
Intuitive and Powerful Smart Tool
The intuitive web based management features include QoS, 802.1Q VLAN, Port Trunking, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, etc.
VLAN Support
Helps separate traffic within a business such as isolated resources between network administrations and general users or between employees and public guests users.
Link Aggregation
Combining (aggregating) multiple network connections in parallel to make a single high bandwidth data path for faster file transfer and enhanced connection reliability.
Broadcast Storm Control
The broadcast storm control feature can set up limits for each type of traffic in order to prevent broadcast storm from disrupting your networks.
Loop Detection
The loop detection feature can identify and remove loops to avoid slowdowns or stop normal traffic while the switch is connected to itself.
IGMP Snooping
The switch supports IGMP snooping v1/v2/v3, optimized multicast performance and improvied multicast services such as video streaming, resulting in smoother video reproduction.
QoS Support
Supports 802.1p QoS provides different priorities to different applications or users to guarantee a high level of performance for maximum data transferring efficiency from your network.
10 Port Gigabit Long Range PoE Web Smart Switch GS 5210PLG
PoE Long Range Guaranteed 200M
Provides the PoE long range solution with guaranteed of 200 meters (656 ft.) , ideal for surveillance applications.
PoE Power Backfeed Protection
Each port is equipped with power backfeed protection to avoid damage done from the connected non standard PSEs (Power Sourcing Equipments) to the switch.
Flexible RJ45 and Fiber Uplinks
Equiped with 1 RJ45 and 1 SFP fiber optic uplinking capability, allows the switch to be flexibly deployed in multiple physical locations, such as branches, retail, or remote workgroup environments for larger network connections.
Intuitive and Powerful Smart Tool
The intuitive web based management features include QoS, 802.1Q VLAN, Port Trunking, Port Mirroring, IGMP Snooping v1/v2/v3, Broadcast Storm Control, etc.
VLAN Support
Helps separate traffic within a business such as isolated resources between network administrations and general users or between employees and public guests users.
Link Aggregation
Combining (aggregating) multiple network connections in parallel to make a single high bandwidth data path for faster file transfer and enhanced connection reliability.
Broadcast Storm Control
The broadcast storm control feature can set up limits for each type of traffic in order to prevent broadcast storm from disrupting your networks.
Loop Detection
The loop detection feature can identify and remove loops to avoid slowdowns or stop normal traffic while the switch is connected to itself.
IGMP Snooping
The switch supports IGMP snooping v1/v2/v3, optimized multicast performance and improvied multicast services such as video streaming, resulting in smoother video reproduction.
QoS Support
Supports 802.1p QoS provides different priorities to different applications or users to guarantee a high level of performance for maximum data transferring efficiency from your network.
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Quality of Service (QoS) support |
 |
| Web-based management Using a website/web application to manage something. |
|
| System event log |
|
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 9 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 9 |
| Installed SFP modules quantity An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The "SFP ports quantity" is the number of ports for SFP connections in a device. | 1 |
| Fiber ports quantity The number of sockets (ports) for fibers (cables). | 1 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SFP |
| Power connector | AC-in jack |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Port mirroring |
|
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| Flow control support |
|
| Broadcast storm control |
|
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 10,100,1000 Mbit/s |
| Optical fiber | |
| Fiber ethernet cabling technology | 1000Base-X |
| Switching optical modules type | Gigabit Ethernet |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 20 Gbit/s |
| Forwarding rate | 14.88 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 4000 entries |
| Jumbo frames support |
|
| Jumbo frames | 9.2 |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Packet buffer memory | 1.5 MB |
| Security | |
| IGMP snooping |
|
| Multicast features | |
| Multicast support |
|
| Number of multicast groups filtered | 128 |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Stackable Devices can be placed on top of each other. |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Housing material What the casing of the product is made of. | Metal |
| Reset button |
|
| LED indicators | Activity, Link, PoE, Power, Status |
| Certification | FCC, CE, BSMI |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| Power supply included There is a power supply with this product. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 100 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 265 mm |
| Depth The distance from the front to the back of something. | 184 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.62 kg |
| Packaging data | |
| Rack mount kit |
|
| SKU | 707546 |
| MPN | GS-5210PLG |
| Brand | Edimax |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.edimax.com/ |
