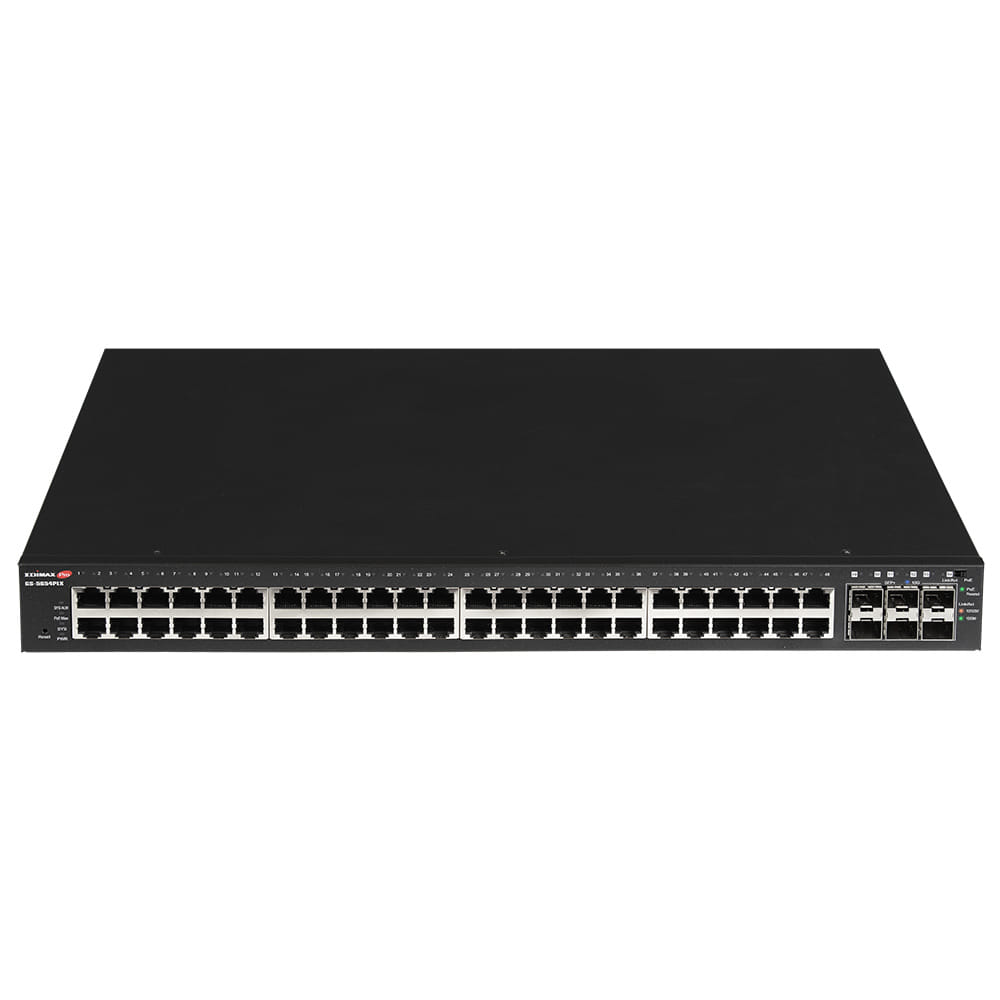

Edimax GS 5654PLX, Gigabit Ethernet (10/100/1000), Power over Ethernet (PoE), Rack mounting
Empower your Enterprise with EDIMAX Intelligent Network Switches
The EDIMAX Pro GS 5654PLX long range web smart switch comes with a web based user interface, 48 Gigabit PoE ports, and 6 SFP ports for 10 Gigabit uplinks. The Gigabit connectivity fully utilizes the power of your office networking for demanding tasks, such as data backup, video conferencing, IP surveillance, high volume transaction processing, large file transferring, and more.
Powerful 10GbE 6 x 10GbE SFP Uplink
48 GbE ports for high speed connections and up to 60 Gbps of fiber optic uplinking capability allowing the GS 5654PLX to be easily deployed in multiple physical locations, such as branches, retails, or remote workgroup environment for larger network access.
Intelligent Thermal Control Power Saving Implementation
With a dedicated and intelligent microchip for system cooling control, the GS 5654PLX can measure and control fan speeds, also turn on/off each fan for power saving and noise reduction.
Safe Power Backfeed Protection
Each port is equipped with power backfeed protection to avoid damaging the PoE ports while the non standard PSE (Power Sourcing Equipments) are connected.
The EDIMAX Pro GS 5654PLX long range web smart switch comes with a web based user interface, 48 Gigabit PoE ports, and 6 SFP ports for 10 Gigabit uplinks. The Gigabit connectivity fully utilizes the power of your office networking for demanding tasks, such as data backup, video conferencing, IP surveillance, high volume transaction processing, large file transferring, and more.
Powerful 10GbE 6 x 10GbE SFP Uplink
48 GbE ports for high speed connections and up to 60 Gbps of fiber optic uplinking capability allowing the GS 5654PLX to be easily deployed in multiple physical locations, such as branches, retails, or remote workgroup environment for larger network access.
Intelligent Thermal Control Power Saving Implementation
With a dedicated and intelligent microchip for system cooling control, the GS 5654PLX can measure and control fan speeds, also turn on/off each fan for power saving and noise reduction.
Safe Power Backfeed Protection
Each port is equipped with power backfeed protection to avoid damaging the PoE ports while the non standard PSE (Power Sourcing Equipments) are connected.
| Management features | |
| Quality of Service (QoS) support |
 |
| Web-based management Using a website/web application to manage something. |
|
| System event log |
|
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 48 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity An SFP ("small form-factor pluggable transceiver") is a transmitter/receiver which interfaces a network device motherboard (e.g. in a switch, router) to a fibre optic or copper network cable. The enhanced small form-factor pluggable (SFP+) is an enhanced version of the SFP that supports data rates up to 10 Gbit/s. The "SFP+ ports quantity" is the number of ports for SFP+ connections in a device. | 6 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
|
| Port mirroring |
|
| Rate limiting |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Virtual LAN features | Port-based VLAN, Voice VLAN |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 216 Gbit/s |
| Throughput | 160.7 Mpps |
| Forwarding rate | 160.7 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 32000 entries |
| Store-and-forward |
|
| Jumbo frames support |
|
| Jumbo frames | 12000 |
| Packet forwarding rate (1 Gbps) | 14880000 pps |
| Packet forwarding rate (100 Mbps) | 14800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |
| Security | |
| DHCP features | DHCP snooping |
| IGMP snooping |
|
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Reset button |
|
| LED indicators | Link, System |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Performance | |
| Firmware upgradeable |
|
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
|
| Total Power over Ethernet (PoE) budget | 400 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 441 mm |
| Depth The distance from the front to the back of something. | 330 mm |
| Height The measurement of the product from head to foot or from base to top. | 45 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 5.6 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| SKU | 711059 |
| MPN | GS-5654PLX |
| Brand | Edimax |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.edimax.com/ |
