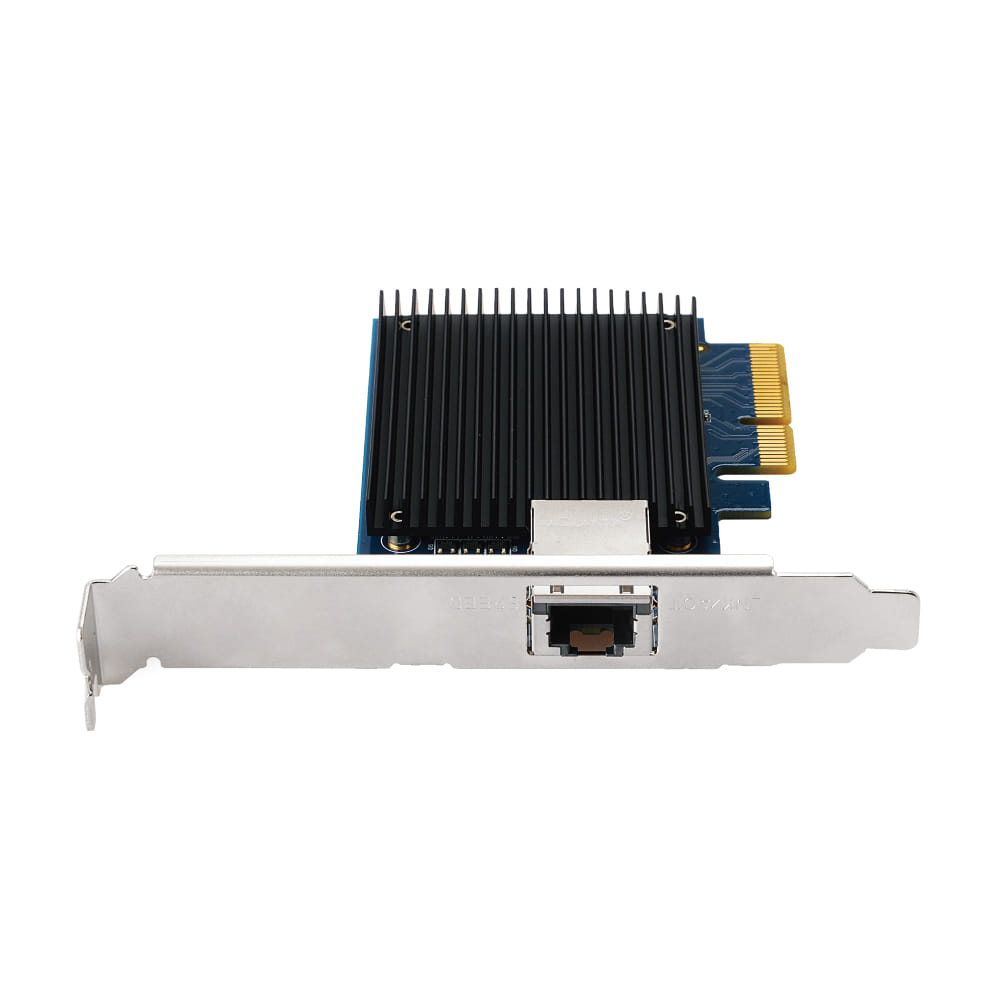

Edimax EN 9320TX E V2, Internal, Wired, PCI Express, Ethernet, 100 Mbit/s
The EN 9320TX E V2 is a 10 Gigabit Ethernet PCI Express Server Adapter designed for the high speed PCI Express bus architecture. This meets the high performance requirements such as large file transfers and HD video editing, which utilizes a high performance shared storage system to have improved server efficiency and network performance. Connecting the EN 9320TX E V2 with the RJ45 cable, your system instantly upgraded to superior performance in fast and reliable10Gbps high speed.
Ultra Fast 10Gbps Ethernet Networking
With 10GBase T (10G ) networking technology, the EN 9320TX E V2 can provide up to 10Gbps network speed, 10 times faster performance than standard Gigabit Ethernet transmissions.
Prioritize Bandwidth for Experiencing the Best
The built in Quality of Service (QoS) technology lets you prioritize applications for a smooth connection experience. With the EN 9320TX E V2, you can enjoy latency free traffic for gaming, video conferencing, or media streaming with ease.
Easy Migration 10GbE Adapter
Equipped with a 10 Gigabit RJ45 interface, the EN 9320TW E V2 is not only a cost effective solution of 10 Gbps high speed adapter on 10G Gigabit network, but it also offers full compatibility to 10/5/2.5/1Gbps and 100 Mbps networking standards and readily available copper network.
High Performance with Advanced Features
With the benefits of low latency, high throughput, and cost effective, the EN 9320TX E V2 meets the bandwidth intensive requirements such as large fil transfers, HD video editing, and online gaming, while utilizes high performance speeds and shared storage system to have improved server efficiency and network performance.
Ultra Fast 10Gbps Ethernet Networking
With 10GBase T (10G ) networking technology, the EN 9320TX E V2 can provide up to 10Gbps network speed, 10 times faster performance than standard Gigabit Ethernet transmissions.
Prioritize Bandwidth for Experiencing the Best
The built in Quality of Service (QoS) technology lets you prioritize applications for a smooth connection experience. With the EN 9320TX E V2, you can enjoy latency free traffic for gaming, video conferencing, or media streaming with ease.
Easy Migration 10GbE Adapter
Equipped with a 10 Gigabit RJ45 interface, the EN 9320TW E V2 is not only a cost effective solution of 10 Gbps high speed adapter on 10G Gigabit network, but it also offers full compatibility to 10/5/2.5/1Gbps and 100 Mbps networking standards and readily available copper network.
High Performance with Advanced Features
With the benefits of low latency, high throughput, and cost effective, the EN 9320TX E V2 meets the bandwidth intensive requirements such as large fil transfers, HD video editing, and online gaming, while utilizes high performance speeds and shared storage system to have improved server efficiency and network performance.
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Host interface Interface that enables a host controller to communicate with a driver. | PCI Express |
| Interface Interface ports to connect pieces of equipment. USB (Universal Serial Bus) has become the most popular wired interface to connect peripherals. USB 2.0 supports speeds up to 480 Mbit/s (USB 1: 12 Mbit/s). The interface FireWire is also known as the IEEE 1394 standard. Enhanced IDE (EIDE)is sometimes referred to as Fast ATA, Fast IDE or ATA-2. | Ethernet |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Network | |
| Maximum data transfer rate The maximum speed with which data can be transmitted from one device to another. | 100 Mbit/s |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 1588v2, IEEE 802.1Q, IEEE 802.1Qav, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable. |
 |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Gigabit Ethernet |
| Wake-on-LAN ready |
|
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| Design | |
| Component for What this product is used as a part of (component for). | PC |
| Internal The product is built in. |
|
| LED indicators | Link, Speed |
| Certification | CE, FCC |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 85 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 87 mm |
| Depth The distance from the front to the back of something. | 67.9 mm |
| Height The measurement of the product from head to foot or from base to top. | 1.6 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 78.4 g |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| SKU | 707513 |
| MPN | EN-9320TX-E V2 |
| Brand | Edimax |
| Product Condition | Brand New/Unused |
| Adapter Type | Networking Adapter |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.edimax.com/ |
