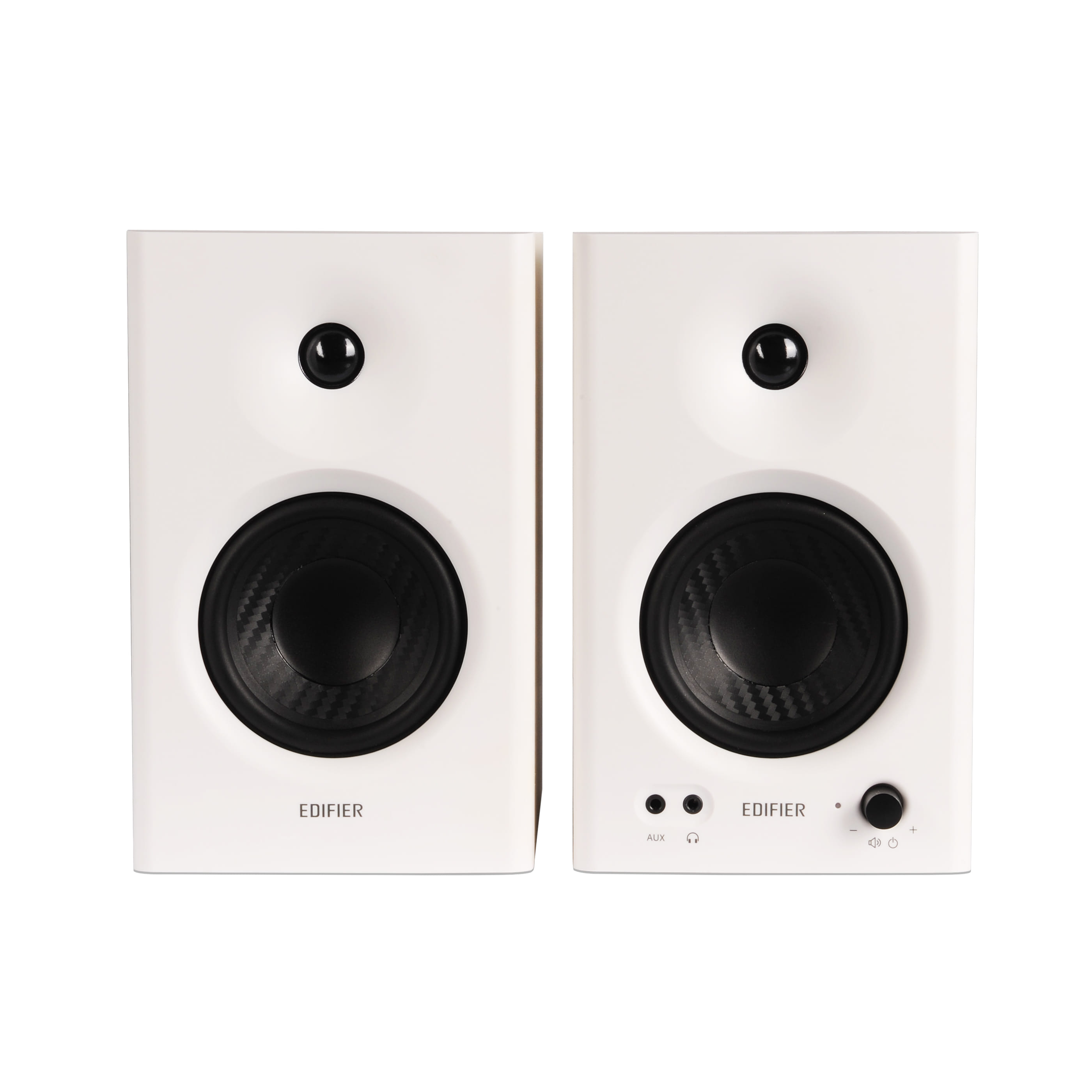

Edifier MR4 Studio Monitor - Smooth Frequency, 1' Silk Dome Tweeter, 4' Diaphragm Woofer, Wooden, RCA TRS, AUX, Ideal for Content Creators - White
Edifier MR4 Studio Monitor - Smooth Frequency, 1' Silk Dome Tweeter, 4' Diaphragm Woofer, Wooden, RCA, TRS, AUX, Ideal for Content Creators - White
Features
Smooth frequency response for great audio reference
1-inch silk dome tweeter and 4-inch diaphragm woofers deliver pure sound
MDF wooden cabinets minimize acoustic resonance
Simple connection to mixers, audio interfaces, computers or media players
Front-mounted headphone output and AUX input for convenience
Multi-functional knob for power, volume and sound effects toggle
Monitor and music modes to fit various scenarios
Specifications
Power output (RMS) 21W+21W
Frequency response 60Hz-20kHz
Audio inputs
TRS balanced input, RCA unbalanced input, AUX unbalanced input
Input sensitivity
TRS balanced input: +4dBu
RCA/AUX unbalanced input:-10dBV
Signal-noise ratio 85dB(A)
THD+N(%) 0.2%
Box Content
Speakers - 1 set
Speaker connecting cable - 1 (2.5m)
3.5mm-3.5mm audio cable - 1 (1.7m)
3.5mm-2RCA audio cable - 1 (1.7m)
User manual - 1
Inner Carton
428 -308 -184mm (L -W -H), 5kg (gross weight)
Features
Smooth frequency response for great audio reference
1-inch silk dome tweeter and 4-inch diaphragm woofers deliver pure sound
MDF wooden cabinets minimize acoustic resonance
Simple connection to mixers, audio interfaces, computers or media players
Front-mounted headphone output and AUX input for convenience
Multi-functional knob for power, volume and sound effects toggle
Monitor and music modes to fit various scenarios
Specifications
Power output (RMS) 21W+21W
Frequency response 60Hz-20kHz
Audio inputs
TRS balanced input, RCA unbalanced input, AUX unbalanced input
Input sensitivity
TRS balanced input: +4dBu
RCA/AUX unbalanced input:-10dBV
Signal-noise ratio 85dB(A)
THD+N(%) 0.2%
Box Content
Speakers - 1 set
Speaker connecting cable - 1 (2.5m)
3.5mm-3.5mm audio cable - 1 (1.7m)
3.5mm-2RCA audio cable - 1 (1.7m)
User manual - 1
Inner Carton
428 -308 -184mm (L -W -H), 5kg (gross weight)
| Loudspeakers | |
| Audio output channels An audio output channel is an electric circuit which acts as a path for a signal produced by a device. A device may have several audio output channels. | 2.0 channels |
| Speaker placement The position of the speaker. | In-wall/in-ceiling, Tabletop/bookshelf |
| Speaker enclosure | Closed |
| Speaker position | Front |
| Number of drivers The quantity of drivers, which are individual transducers that converts electrical energy to sound waves. | 2 |
| Tweeter Loudspeaker designed to reproduce high frequencies. |
 |
| Number of tweeter drivers | 1 |
| Tweeter diameter | 2.45 mm |
| Woofer Loudspeaker designed to reproduce low frequencies. |
|
| Number of woofer drivers | 1 |
| Woofer diameter | 9.8 mm |
| Audio | |
| RMS rated power RMS (Root mean square) is a measure of the continuous power required by a device, in particular audio amplifiers and loudspeakers. | 21 W |
| Speakers RMS power | 42 W |
| Frequency range The lowest and the hightest frequencies that can be inputted/produced. | 60 - 20000 Hz |
| Signal-to-Noise Ratio (SNR) This is the ratio of signal intensity to noise intensity. | 85 dB |
| Total Harmonic Distortion (THD) Total harmonic distortion is a measure of non-linear harmonic distortion and is given in %. Non-linear harmonic distortions are signals which were not present in the original before the signal was converted by the headphones. These unwanted signals are caused by the diaphragm, whose movements do not precisely move in time with the electric signals that cause it to move. Unfortunately, this is a feature of all electroacoustic transducers. Although it cannot be completely eliminated, suitable steps can be taken to minimise it. However, the user is not interested in why this distortion takes place but in how great the level of distortion must be for it to become perceptible. According to the findings of several research projects, a total harmonic distortion of 1% in the frequency range of 100 to 2000 Hz is imperceptible. Below 100 Hz, the perceptibility threshold lies at 10%. | 0.2% |
| Performance | |
| Recommended usage What the product should be used for, and how it should be used (e.g. ambient temperature). | Studio |
| Product colour The colour e.g. red, blue, green, black, white. | White |
| Housing material What the casing of the product is made of. | MDF |
| Amplifier | |
| Amplifier Electronic device for increasing the amplitude of electrical signals, used chiefly in sound reproduction. |
 |
| Amplifier class An electronic amplifier, amplifier, or (informally) amp is an electronic device that increases the power of a signal. It does this by taking energy from a power supply and controlling the output to match the input signal shape but with a larger amplitude. Power amplifier circuits (output stages) are classified as A, B, A/B and C for analog designs, and class D and E for switching designs based on the proportion of each input cycle (conduction angle), during which an amplifying device is passing current. | D |
| Ports & interfaces | |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example. |
|
| 6.35 mm (1⁄4-inch) input | 2 |
| Audio RCA inputs | 2 |
| AUX in |
|
| Packaging content | |
| Quantity per pack | 2 pc(s) |
| SKU | 536762 |
| MPN | MR4-WHITE |
| Brand | Edifier |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
