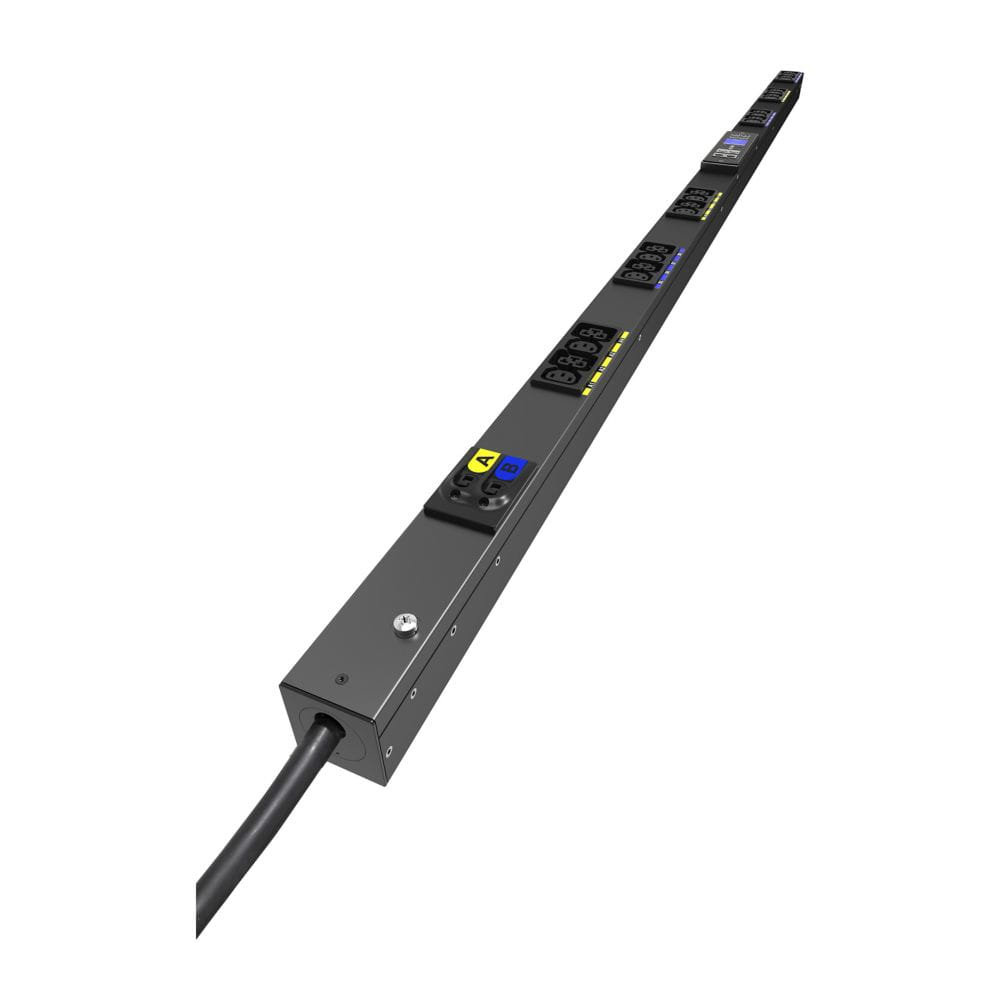

Eaton EVMIF132A. PDU types: Metered, Rack capacity: 39U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C39 coupler, Power plug: IEC 60309. Cable length: 3 m, Security algorithms: SNMP. Supported network protocols: HTTPS. Nominal input voltage: 200-240 V, Maximum current: 32 A, AC input frequency: 50/60 Hz
| Design | |
| PDU types A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP. | Metered |
| Type Characteristics of the device. | Single-phase |
| Rack capacity The spase that device fill in rack. | 39U |
| Mounting What size the mounting head of the product is, to couple it with a camera. | Vertical |
| Housing material What the casing of the product is made of. | Aluminium |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Display The description of display that can includes display type, resolution, size etc. | LCD |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 24 AC outlet(s) |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | IEC 60309 |
| AC outlet types The type of outlet for AC electricity. | C13 coupler, C39 coupler |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 4 |
| USB ports quantity | 2 |
| Features | |
| Colour-coded outlets |
 |
| Cable length How long the cable is. | 3 m |
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | SNMP |
| Management features | |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | HTTPS |
| Power | |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 200-240 V |
| AC input frequency | 50/60 Hz |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 32 A |
| Maximum power The maximum power that can be put into or produced by the device. | 7400 W |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 60 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 52 mm |
| Depth The distance from the front to the back of something. | 53 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.8 kg |
| Packaging content | |
| Manual |
|
| Rack mount kit |
|
| Packaging content | Rack PDU Rack mounting accessories Quickstart guide Safety Instructions |
| SKU | 813444 |
| MPN | EVMIF132A |
| Brand | Eaton |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 4 Years Warranty |
| Warranty Contact | https://www.eaton.com/ |
