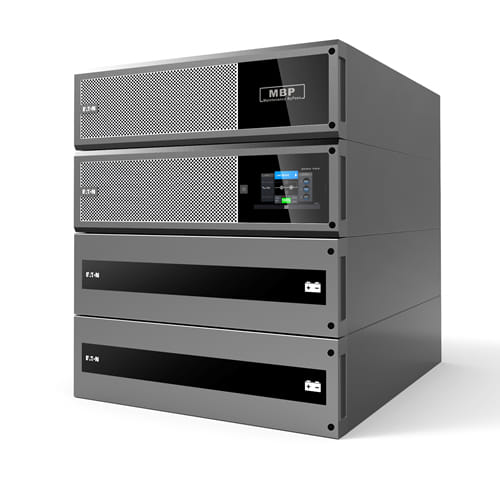

Eaton 9SX (AP), Double-conversion (Online), 20 kVA, 20000 W, 100 V, 300 V, 40/70 Hz
The Eaton 9SX (AP) UPS range provide stable power for Critical IT Infrastructure, Industrial, Manufacturing, and Medical devices. The UPS uses advanced technologies to improve on power and dimensional efficiencies, to help with cost savings in both the electricity and space aspects. This range of UPS incorporates robust designs to enhance durability, making it suitable for a wider range of applications.
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Double-conversion (Online) |
| Output power capacity The maximum power that the device can produce. | 20 kVA |
| Output power The power that the device can produce. | 20000 W |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 100 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 300 V |
| Input frequency The frequency (Hz) which is required to power the product. | 40/70 Hz |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 220 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 240 V |
| Output frequency | 50/60 Hz |
| Number of input phases | 1/3 |
| Number of output phases | 1/3 |
| Efficiency | 94% |
| Efficiency (On-line mode) | 96% |
| Efficiency (ECO mode) | 98.8% |
| ECO mode |
 |
| Power protection features Features that protect the device against power problems e.g. overload. | Short circuit |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Battery | |
| Battery capacity The amount of electric charge a battery can deliver at the rated voltage. The more electrode material contained in the cell the greater its capacity. A small cell has less capacity than a larger cell with the same chemistry, although they develop the same open-circuit voltage. Capacity is measured in units such as amp-hour (A·h). | 9 Ah |
| Typical backup time at full load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is fully loaded (100% of capacity). | 2.4 min |
| Battery recharge time Approximate time required to recharge the battery from completely empty to completely full | 3 h |
| Design | |
| Form factor The shape or design of the product. | Rackmount/Tower |
| Rack capacity The spase that device fill in rack. | 3U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 438 mm |
| Depth The distance from the front to the back of something. | 589 mm |
| Height The measurement of the product from head to foot or from base to top. | 129 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 23.7 kg |
| Package weight Weight of the packaged product. | 27.5 kg |
| SKU | 420560 |
| MPN | MBP20K |
| Brand | Eaton |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.eaton.com/ |
