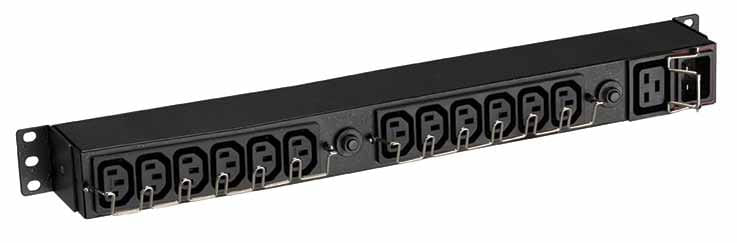

Eaton EFLX12I, Basic, 1U, Single-phase, Rackmount, Horizontal/Vertical, Black
These basic rack PDUs are versatile, flexible power strips intended to provide more connection options when using rackmount UPSs. The FlexPDU series is compatible with any UPS below 3 kVA and is the perfect power distribution option for the Evolution, EX and M series while the high voltage PDUs are compatible with the EX RT UPS series. These PDUs offer multiple mounting options for rack enclosures, wall mounting or connection at the rear of the UPS.
| Design | |
| PDU types A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP. | Basic |
| Type Characteristics of the device. | Single-phase |
| Form factor The shape or design of the product. | Rackmount |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| Rack capacity The spase that device fill in rack. | 1U |
| Mounting What size the mounting head of the product is, to couple it with a camera. | Horizontal/Vertical |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cable colour Colour of the cable e.g. white, gray. | Black |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 13 AC outlet(s) |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | C20 coupler |
| AC outlet types The type of outlet for AC electricity. | C13 coupler |
| Output connections | 12 x C13 & 1 x C19 |
| Features | |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CE |
| Power | |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 230 V |
| AC input frequency | 50/60 Hz |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 13 A |
| Nominal output voltage The voltage which the manufacturer states that the device can produce. | 230 V |
| Load capacity | 3000 VA |
| Maximum input current per phase | 13 A |
| Maximum power The maximum power that can be put into or produced by the device. | 3000 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 483 mm |
| Depth The distance from the front to the back of something. | 80 mm |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 439 x 58.5 x 43.4 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 1.7 kg |
| Size (imperial) Physical dimension. | 48.3 cm (19") |
| Packaging data | |
| Package weight Weight of the packaged product. | 9.5 kg |
| Package width The distance from one side of the packaging to the other. | 180 mm |
| Package depth The distance from the front to the back of the packaging. | 448 mm |
| Package height The distance from the top to the bottom of the packaging. | 58 mm |
| Packaging content | |
| Rack mount kit |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| SKU | 420441 |
| MPN | EFLX12I |
| Brand | Eaton |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.eaton.com/ |
