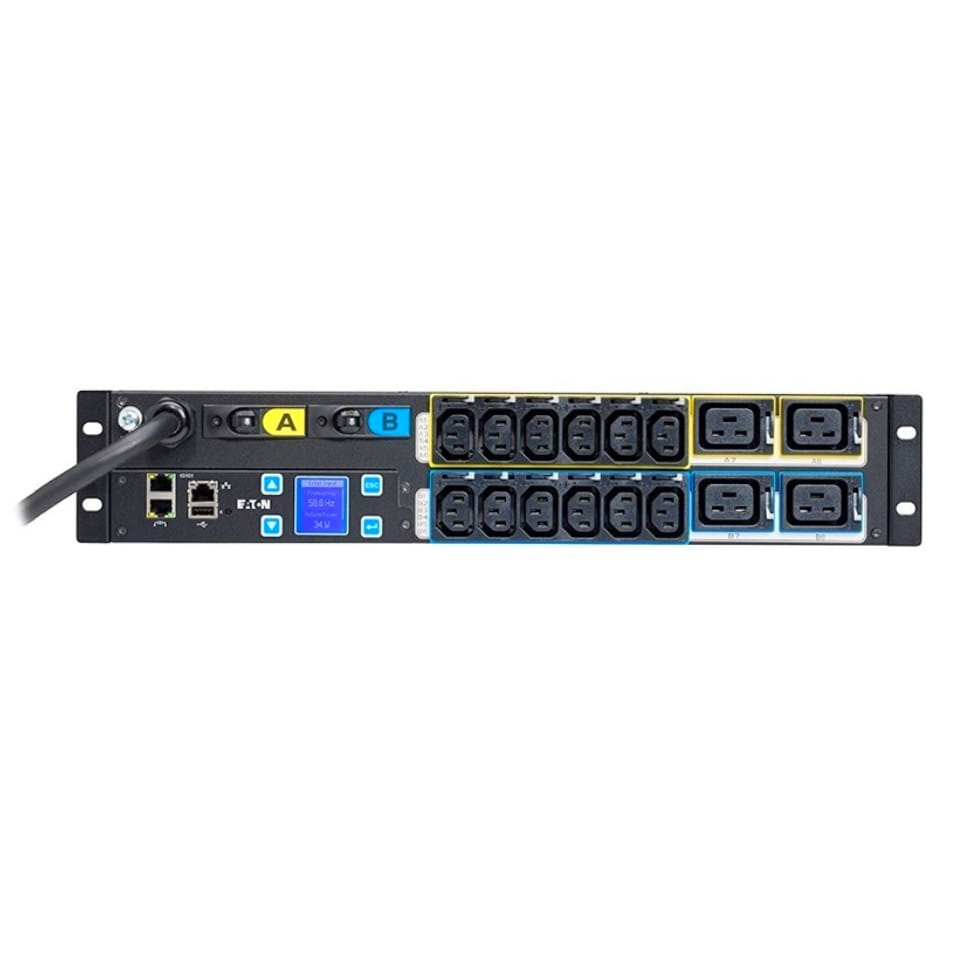

Eaton EMIH06, Metered, 2U, Single-phase, Rackmount, Horizontal/Vertical, Black
Button mounting on rear and sides, variable mounting bracket. 1U/2U form factor ePDUs can be mounted horizontaly, vertically, or under a surface.
| Design | |
| PDU types A power distribution unit (PDU) is a device fitted with multiple outputs designed to distribute electric power, especially to racks of computers and networking equipment located within the data center. PDUs vary from simple and inexpensive rack-mounted "power strips" to larger floor-mounted PDUs with multiple functions including power filtering to improve power quality, intelligent load balancing, and remote monitoring and control by LAN or SNMP. | Metered |
| Type Characteristics of the device. | Single-phase |
| Form factor The shape or design of the product. | Rackmount |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
 |
| Rack capacity The spase that device fill in rack. | 2U |
| Mounting What size the mounting head of the product is, to couple it with a camera. | Horizontal/Vertical |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Cable colour Colour of the cable e.g. white, gray. | Black |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 16 AC outlet(s) |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | IEC 60309 |
| AC outlet types The type of outlet for AC electricity. | C13 coupler,C19 coupler |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Input connection type The type of connection /port for the input(s) into this device e.g. USB. | IEC-320-C20 |
| Output connections | 12 x C13 & 4 x C19 |
| Features | |
| Cable length How long the cable is. | 3 m |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CB, CE, EN 60950-1:2006/A11:2009/A1:2010/A12:2011 Safety - Part 1: General Requirements, IEC 60950-1(ed.2), IEC 60950-1(ed.2);am1 EN 55022:2010, EN 61000-6-2:2005 Part 6-2, EN 50581 : 2012, REACH, WEEE, PEP, ISO 9001:2008, ISO 14001:2004 |
| Management features | |
| Monitoring | Current |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | HTTP, HTTPS, SSL, Telnet, FTP, SNMP, SMTP, DNS, DHCP, LDAP, RADIUS |
| Management protocols | SNMP, Telnet |
| Firmware upgradeable |
|
| Firmware upgradeable via | Network,USB |
| Power | |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 230 V |
| AC input frequency | 50 Hz |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 32 A |
| Nominal output voltage The voltage which the manufacturer states that the device can produce. | 230 V |
| Maximum input current per phase | 32 A |
| Maximum power The maximum power that can be put into or produced by the device. | 7400 W |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 88.9 mm |
| Depth The distance from the front to the back of something. | 482.6 mm |
| Dimensions (WxDxH) Dimensions of the product (Width x Depth x Height). | 88.9 x 482.6 x 127 mm |
| Height The measurement of the product from head to foot or from base to top. | 127 mm |
| Packaging data | |
| Package weight Weight of the packaged product. | 4.7 kg |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Rack mount kit |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 60 °C |
| SKU | 420483 |
| MPN | EMIH06 |
| Brand | Eaton |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.eaton.com/ |
