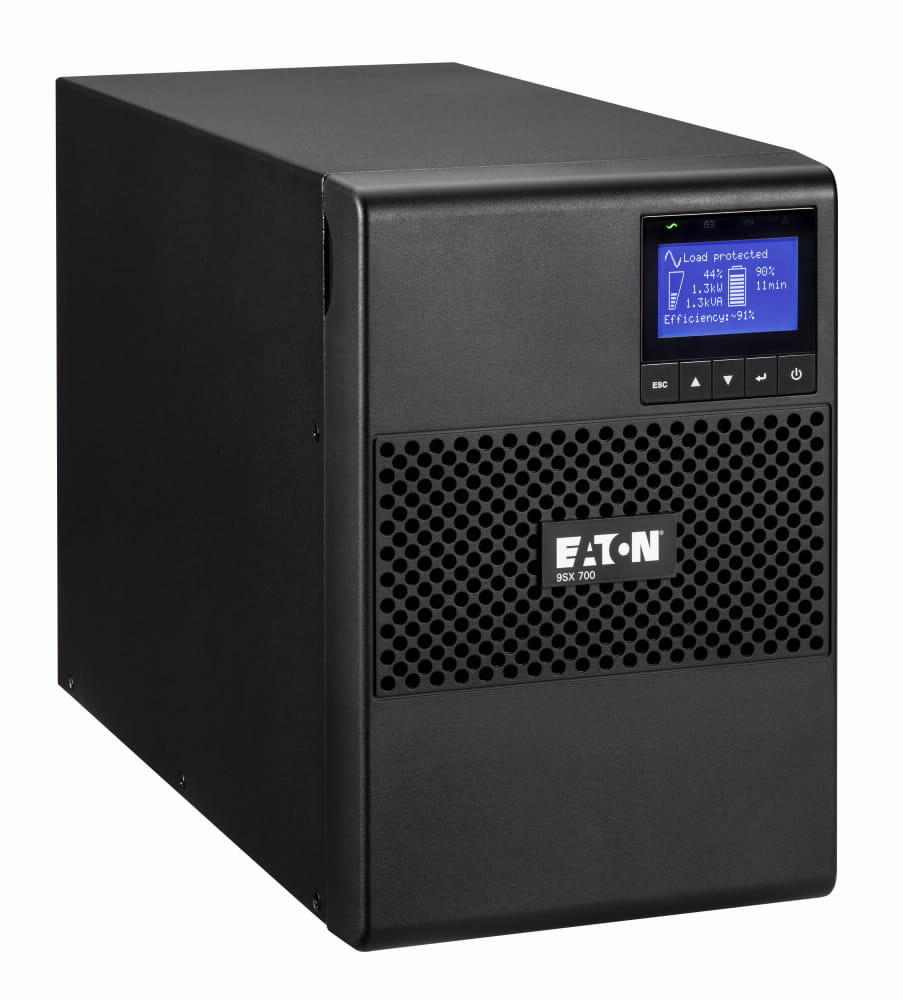

Eaton 9SX700, Double-conversion (Online), 0.9 kVA, 630 W, Sine, 120 V, 120 V
Eaton 9SX700. UPS topology: Double-conversion (Online), Output power capacity: 0.9 kVA, Output power: 630 W. AC outlets quantity: 6 AC outlet(s), USB port type: USB Type-B, Serial interface type: RS-232. Form factor: Tower, Product colour: Black, Display type: LCD. Width: 160 mm, Depth: 353.1 mm, Height: 251.5 mm
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Double-conversion (Online) |
| Output power capacity The maximum power that the device can produce. | 0.9 kVA |
| Output power The power that the device can produce. | 630 W |
| Waveform | Sine |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 120 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 120 V |
| Input frequency The frequency (Hz) which is required to power the product. | 40/70 Hz |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 200 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 240 V |
| Output frequency | 50/60 Hz |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Power factor | 0.9 |
| Output power factor | 0.9 |
| Power protection features Features that protect the device against power problems e.g. overload. | Overdischarge |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 6 AC outlet(s) |
| USB port The device features a socket into which a USB cable can be plugged. |
 |
| USB port type | USB Type-B |
| Serial interface |
|
| Serial interface type | RS-232 |
| Battery | |
| Hot-swap battery |
|
| Design | |
| Form factor The shape or design of the product. | Tower |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Display type Type of display (screen) e.g. LCD. | LCD |
| Certification | cULus Listed |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 160 mm |
| Depth The distance from the front to the back of something. | 353.1 mm |
| Height The measurement of the product from head to foot or from base to top. | 251.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 12 kg |
| SKU | 420133 |
| MPN | 9SX700 |
| Brand | Eaton |
| Product Condition | Brand New/Unused |
| Product Use | General |
