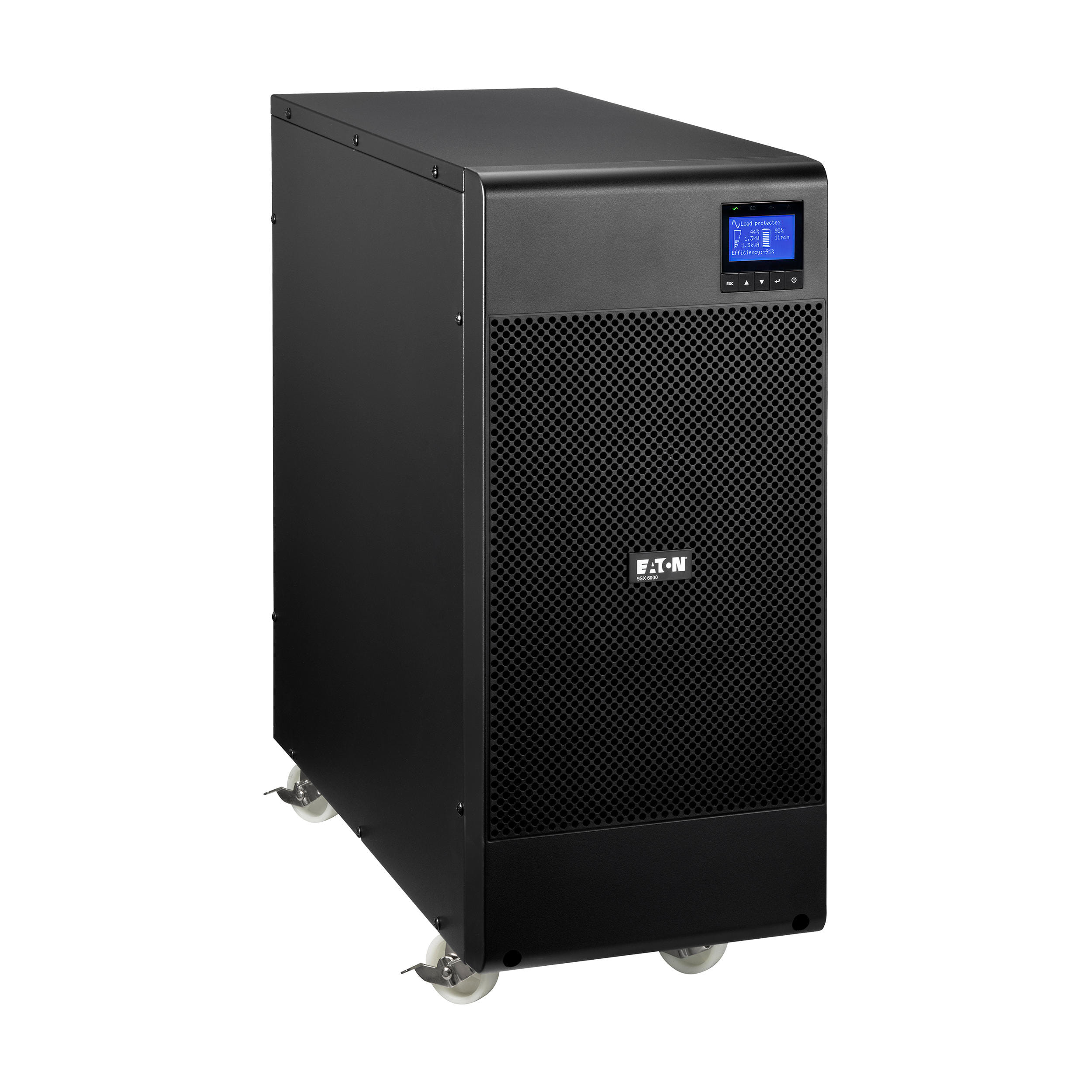

Eaton 9SX Tower 6000VA 5400W Online/Double-Conversion UPS (Without Internal Batteries)
Item No:
420126
MPN:
9SX6KINB-AU
$9,426.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Eaton 9SX6KINB AU, Double conversion (Online), 6 kVA, 5400 W, 240 V, 240 V, 40/70 Hz
Eaton 9SX6KINB AU. UPS topology: Double conversion (Online), Output power capacity: 6 kVA, Output power: 5400 W. AC outlet types: Terminal, Power plug: Terminal. Form factor: Tower, Product colour: Black, Display type: LCD. Width: 542 mm, Depth: 244 mm, Height: 575 mm
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Double-conversion (Online) |
| Output power capacity The maximum power that the device can produce. | 6 kVA |
| Output power The power that the device can produce. | 5400 W |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 240 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 240 V |
| Input frequency The frequency (Hz) which is required to power the product. | 40/70 Hz |
| Efficiency | 98% |
| Crest factor | 3:1 |
| Output voltage Total Harmonic Distortion (THD) | 2% |
| Input current Total Harmonic Distortion (THD) | 5% |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 45 dB |
| Ports & interfaces | |
| AC outlet types The type of outlet for AC electricity. | Terminal |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | Terminal |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Battery | |
| Automatic battery test |
 |
| Design | |
| Form factor The shape or design of the product. | Tower |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Display type Type of display (screen) e.g. LCD. | LCD |
| Certification | IEC 61000-4 IEC/EN 62040-2 EN 62040-3 IEC/EN 62040-1 |
| Compatibility The other products, software and hardware this product can be used with. | CB CE Marked RCM |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 542 mm |
| Depth The distance from the front to the back of something. | 244 mm |
| Height The measurement of the product from head to foot or from base to top. | 575 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 21.9 kg |
| SKU | 420126 |
| MPN | 9SX6KINB-AU |
| Brand | Eaton |
| Product Condition | Brand New/Unused |
| Product Use | General |
