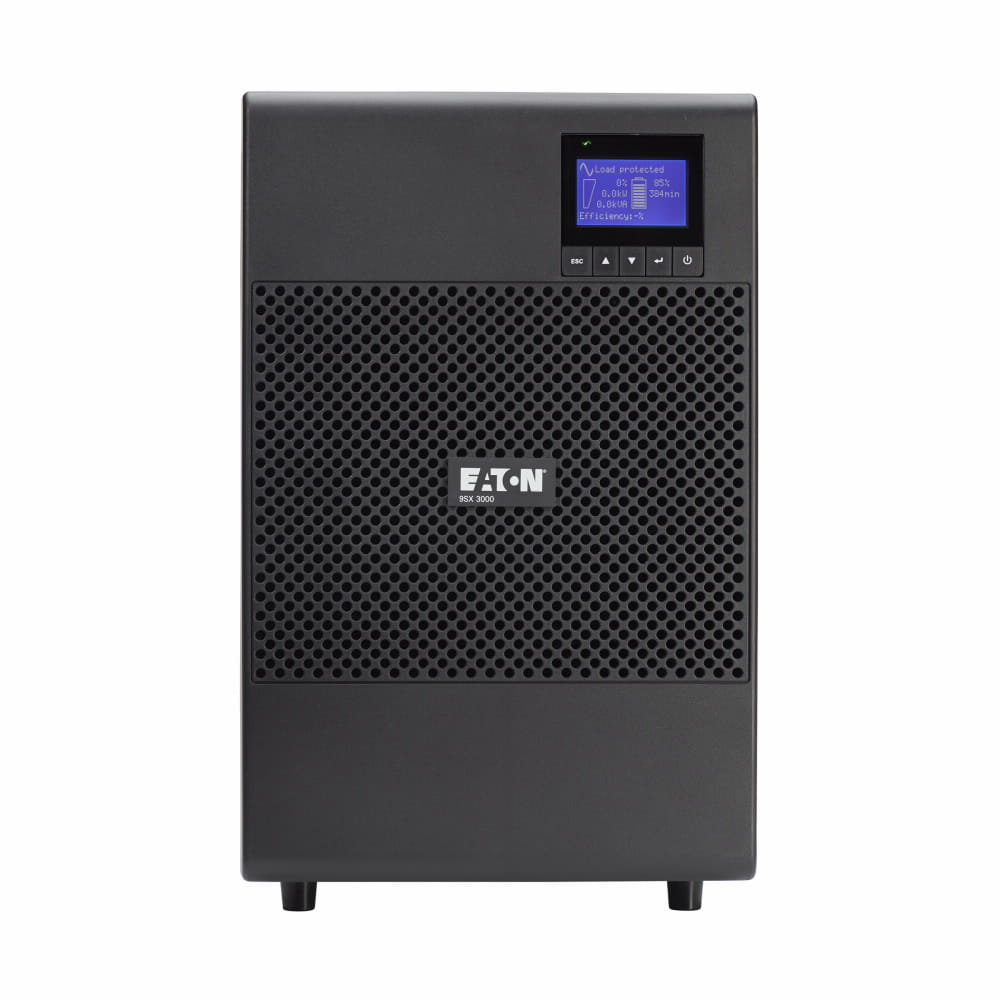

Eaton 9SX Tower 3000VA 2700W Online/Double-Conversion Extended Runtime UPS
Item No:
420063
MPN:
9SX3000HW
$7,027.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Eaton 9SX3000HW, Double-conversion (Online), 3 kVA, 2700 W, Pure sine, 40/70 Hz, 100 V
Eaton 9SX online, extended runtime UPS, 3000 VA, 2700 W, Hardwired input/output, 13.6"Hx8.4"Wx16.2"D, 77.2 lb., network card optional
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Double-conversion (Online) |
| Output power capacity The maximum power that the device can produce. | 3 kVA |
| Output power The power that the device can produce. | 2700 W |
| Waveform | Pure sine |
| Input frequency The frequency (Hz) which is required to power the product. | 40/70 Hz |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 100 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 125 V |
| Output frequency | 50/60 Hz |
| Power factor | 0.9 |
| Input power factor | 0.99 |
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Serial interface |
|
| Serial interface type | RS-232 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Battery | |
| Hot-swap battery |
|
| Design | |
| Form factor The shape or design of the product. | Tower |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Certification | cULus Listed |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 213.4 mm |
| Depth The distance from the front to the back of something. | 411.5 mm |
| Height The measurement of the product from head to foot or from base to top. | 345.4 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 35 kg |
| Packaging data | |
| Cables included | RS-232, USB cable |
| Manual |
|
| SKU | 420063 |
| MPN | 9SX3000HW |
| Brand | Eaton |
| Product Condition | Brand New/Unused |
| Product Use | General |
