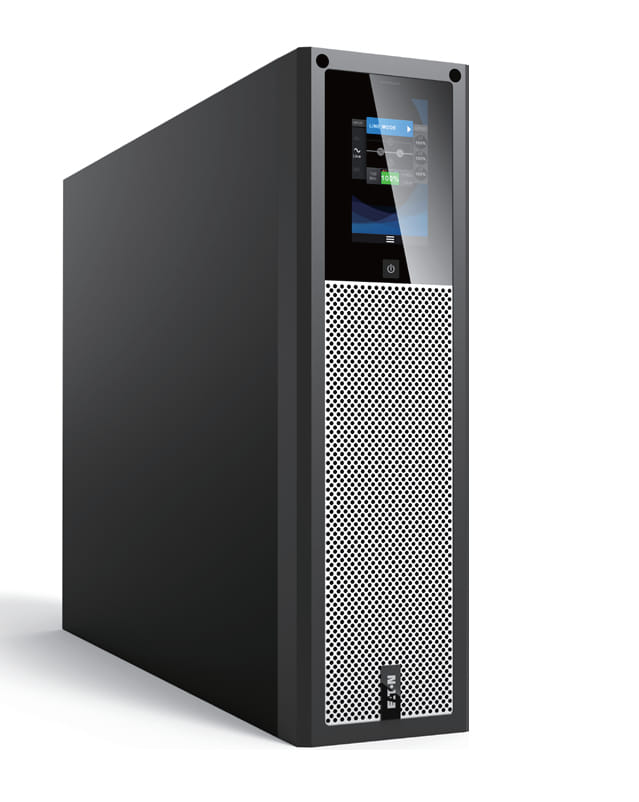

Eaton 9SX Rack/Tower 15000VA 15000W Online/Double-Conversion UPS
Item No:
420014
MPN:
9SX15KPMAU
$9,671.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Eaton 9SX15KPMAU, Double-conversion (Online), 15 kVA, 15000 W, 160 V, 300 V, 50/60 Hz
The Eaton 9SX (AP) UPS range provide stable power for Critical IT Infrastructure, Industrial, Manufacturing, and Medical devices. The UPS uses advanced technologies to improve on power and dimensional efficiencies, to help with cost savings in both the electricity and space aspects. This range of UPS incorporates robust designs to enhance durability, making it suitable for a wider range of applications.
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Double-conversion (Online) |
| Output power capacity The maximum power that the device can produce. | 15 kVA |
| Output power The power that the device can produce. | 15000 W |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 160 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 300 V |
| Input frequency The frequency (Hz) which is required to power the product. | 50/60 Hz |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 220 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 415 V |
| Output frequency | 50/60 Hz |
| Number of input phases | 1/3 |
| Number of output phases | 1/3 |
| Input power factor | 0.995 |
| Output voltage Total Harmonic Distortion (THD) | 1% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 55 dB |
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB port type | USB Type-B |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Design | |
| Form factor The shape or design of the product. | Rackmount/Tower |
| Rack capacity The spase that device fill in rack. | 3U |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Grey |
| Display type Type of display (screen) e.g. LCD. | LCD |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -25 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 4000 m |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 438 mm |
| Depth The distance from the front to the back of something. | 589 mm |
| Height The measurement of the product from head to foot or from base to top. | 129 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 23.7 kg |
| SKU | 420014 |
| MPN | 9SX15KPMAU |
| Brand | Eaton |
| Product Condition | Brand New/Unused |
| Product Use | General |
