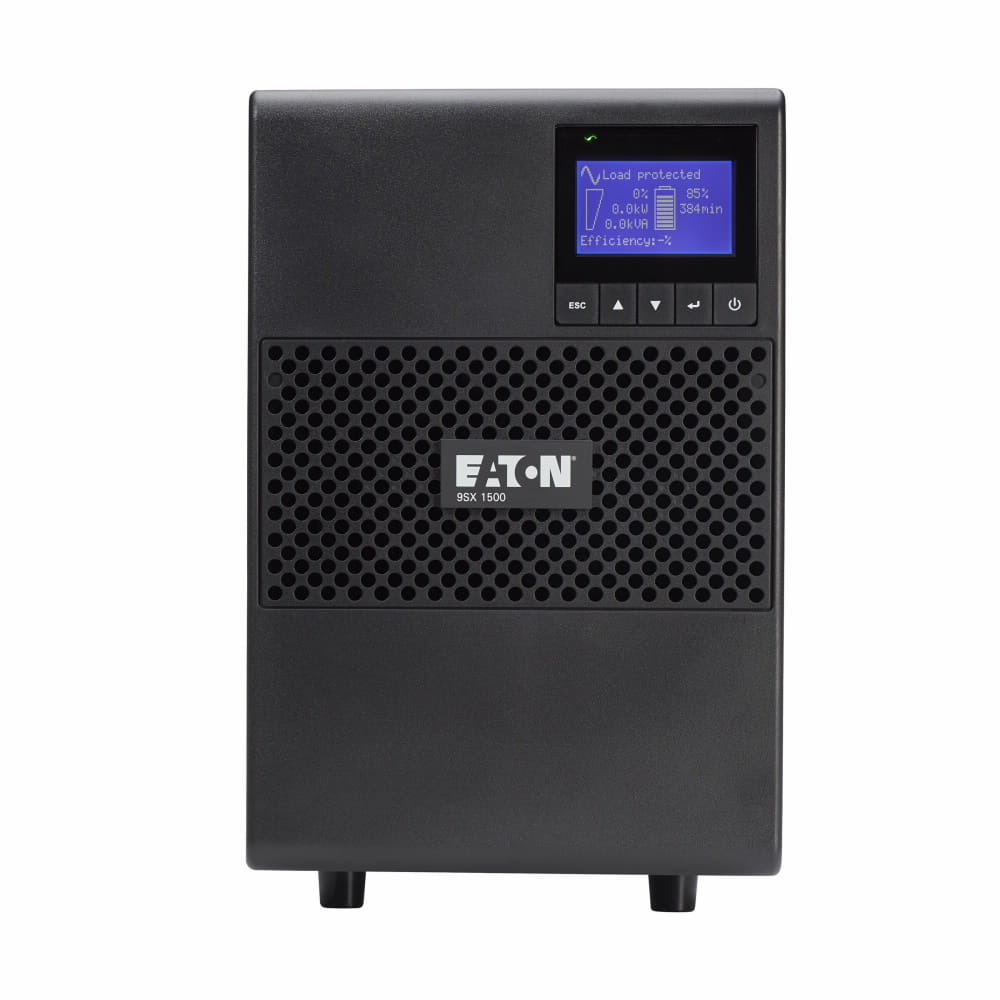

Eaton 9SX1500, Double-conversion (Online), 1500 VA, 1350 W, Sine, 60 Hz, 100 V
Reliable power protection for the edge and beyond
Combining reliable double-conversion topology, internal static bypass and an easy-to-ready LCD menu display, the Eaton 9SX UPS provides the highly efficient and reliable power you expect from a 9-series UPS in a convenient tower form factor. Network, Modbus, Relay and signal input functionality enables integration into a variety of IoT and IIoT applications.
Protect the business you've worked hard to grow:
Reliable power for critical systems
The 9SX offers the robust double-conversion, online power protection needed for medical, light industrial, automation and mission critical IT applications. With zero transfer time to battery,
continuous filtering of power, and an internal, automatic static bypass, the 9SX ensures performance and compatibility.
Increased battery life
Eaton offers ABM technology that increases battery service life by 50 percent. ABM uses advanced charging techniques to extend battery life and provides advanced notice before batteries fail.
More power
By providing up to 28 percent more wattage compared to traditional UPSs, the 9SX allows you to connect more devices and leave room for expanding IT systems.
More control
Automate power delivery by utilizing switchable, programmable outlets, without the need of a third party device or PDU. Programmable signal input through the RPO port also enables the
UPS to change operating modes in reaction to external events.
Integrate and standardize communications
Maximize uptime with remote monitoring and management of your 9SX via an Eaton connectivity and software. SNMP, serial, USB, Modbus, and relay options enable integration regardless of the system architecture. Remote Power Off/Remote On Off signal input also manages UPS On/Off state preserving battery life during process shutdown.
Advanced LCD interface
Simplify UPS monitoring with Eaton's advanced LCD display.
Easy access to UPS alarm history, energy logs, unit serial numbers and firmware versions enable first time issue resolution right at the source. Eight, user-selectable languages ensure success for global deployments.
Services and support:
Eaton provides product support 24 hours a day, 7 days a week. From battery replacement to full UPS service plans, Eaton has one of the top service models in the industry.
Combining reliable double-conversion topology, internal static bypass and an easy-to-ready LCD menu display, the Eaton 9SX UPS provides the highly efficient and reliable power you expect from a 9-series UPS in a convenient tower form factor. Network, Modbus, Relay and signal input functionality enables integration into a variety of IoT and IIoT applications.
Protect the business you've worked hard to grow:
Reliable power for critical systems
The 9SX offers the robust double-conversion, online power protection needed for medical, light industrial, automation and mission critical IT applications. With zero transfer time to battery,
continuous filtering of power, and an internal, automatic static bypass, the 9SX ensures performance and compatibility.
Increased battery life
Eaton offers ABM technology that increases battery service life by 50 percent. ABM uses advanced charging techniques to extend battery life and provides advanced notice before batteries fail.
More power
By providing up to 28 percent more wattage compared to traditional UPSs, the 9SX allows you to connect more devices and leave room for expanding IT systems.
More control
Automate power delivery by utilizing switchable, programmable outlets, without the need of a third party device or PDU. Programmable signal input through the RPO port also enables the
UPS to change operating modes in reaction to external events.
Integrate and standardize communications
Maximize uptime with remote monitoring and management of your 9SX via an Eaton connectivity and software. SNMP, serial, USB, Modbus, and relay options enable integration regardless of the system architecture. Remote Power Off/Remote On Off signal input also manages UPS On/Off state preserving battery life during process shutdown.
Advanced LCD interface
Simplify UPS monitoring with Eaton's advanced LCD display.
Easy access to UPS alarm history, energy logs, unit serial numbers and firmware versions enable first time issue resolution right at the source. Eight, user-selectable languages ensure success for global deployments.
Services and support:
Eaton provides product support 24 hours a day, 7 days a week. From battery replacement to full UPS service plans, Eaton has one of the top service models in the industry.
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Double-conversion (Online) |
| Output power capacity The maximum power that the device can produce. | 1500 VA |
| Output power The power that the device can produce. | 1350 W |
| Waveform | Sine |
| Input frequency The frequency (Hz) which is required to power the product. | 60 Hz |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 100 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 125 V |
| Output frequency | 50/60 Hz |
| Efficiency (On-line mode) | 88% |
| Output power factor | 9 |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Surge protection |
 |
| Ports & interfaces | |
| AC outlet types The type of outlet for AC electricity. | NEMA 5–15P |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | C14 coupler |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 6 AC outlet(s) |
| Number of output IEC jumpers | 2 |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| USB port type | USB Type-B |
| Serial interface |
|
| Serial interface type | RS-232 |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 1 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Design | |
| Form factor The shape or design of the product. | Tower |
| Cable length How long the cable is. | 1.8 m |
| Cooling type The method used to cool the device or to cool the air around the device. | Active |
| Built-in fan |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Display The description of display that can includes display type, resolution, size etc. | LCD |
| Certification | cULus |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 152.4 mm |
| Depth The distance from the front to the back of something. | 304.8 mm |
| Height The measurement of the product from head to foot or from base to top. | 228.6 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 18.1 kg |
| Packaging data | |
| Cables included | RS-232,USB cable |
| Manual |
|
| Quick installation guide |
|
| SKU | 420000 |
| MPN | 9SX1500 |
| Brand | Eaton |
| Product Condition | Brand New/Unused |
| Product Use | General |
