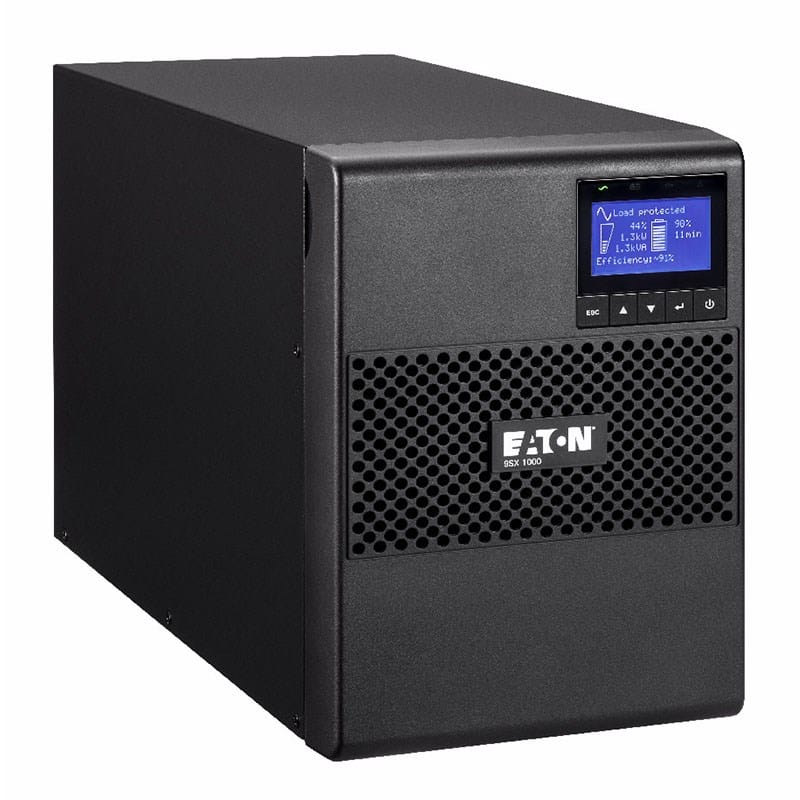

Eaton 9SX 1000VA/900W On Line Tower UPS
Interface: 1x USB Port, 1x Serial RS232 Port, 1x Mini-terminal Block for Remote Power Off, 1x Mini-terminal Block for Output Relay - Input: 1x IEC-320-C14 - Output: 4x Aust. 10A - Multilingual Graphical LCD Display
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Double-conversion (Online) |
| Output power capacity The maximum power that the device can produce. | 1000 VA |
| Output power The power that the device can produce. | 900 W |
| Waveform | Pure sine |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 190 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 276 V |
| Input frequency The frequency (Hz) which is required to power the product. | 40/70 Hz |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 200 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 240 V |
| Output frequency | 50/60 Hz |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Power factor | 0.9 |
| ECO mode |
 |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 41 dB |
| Ports & interfaces | |
| AC outlet types The type of outlet for AC electricity. | C13 coupler |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | C14 coupler |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 6 AC outlet(s) |
| USB port The device features a socket into which a USB cable can be plugged. |
 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Serial interface |
|
| Serial interface type | RS-232 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Battery | |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Sealed Lead Acid (VRLA) |
| Typical backup time at half load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is half-loaded (50% of capacity). | 16.5 min |
| Hot-swap battery |
|
| Automatic battery test |
|
| Design | |
| Form factor The shape or design of the product. | Tower |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Display The description of display that can includes display type, resolution, size etc. | LCD |
| Safety List of regulatory safety standards for all countries in which this product has been certified. | IEC/EN 62040-1, UL 1778, CSA 22.2 |
| Certification | IEC/EN 62040-1, UL 1778, CSA 22.2, IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 160 mm |
| Depth The distance from the front to the back of something. | 387 mm |
| Height The measurement of the product from head to foot or from base to top. | 252 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 14.8 kg |
| Packaging data | |
| Management card included |
|
| Bundled software Software distributed with another product such as a piece of computer hardware or other electronic device, or a group of software packages which are sold together. A software suite is an example of bundled software, as is software which is pre-installed on a new computer. | Intelligent Power Software suite |
| Other features | |
| Input connection type The type of connection /port for the input(s) into this device e.g. USB. | IEC C14 |
| Nominal output voltage The voltage which the manufacturer states that the device can produce. | 230 V |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 230 V |
| SKU | 419972 |
| MPN | 9SX1000I-AU |
| Brand | Eaton |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.eaton.com/ |
