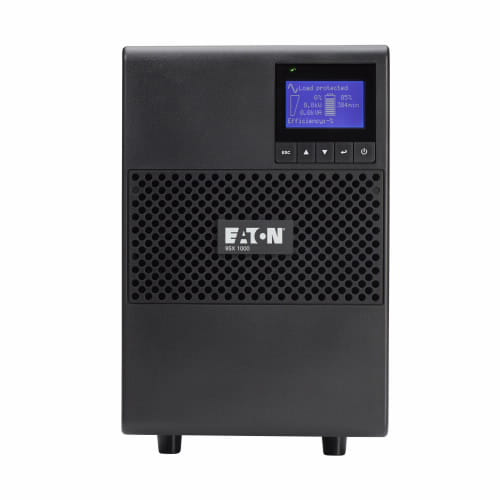

Eaton 9SX UPS, Double-conversion (Online), 1000 VA, 900 W, Sine, 190 V, 276 V
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Double-conversion (Online) |
| Output power capacity The maximum power that the device can produce. | 1000 VA |
| Output power The power that the device can produce. | 900 W |
| Waveform | Sine |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 190 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 276 V |
| Input frequency The frequency (Hz) which is required to power the product. | 40/70 Hz |
| Output frequency | 50/60 Hz |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 10 A |
| Efficiency (On-line mode) | 88% |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 41 dB |
| Ports & interfaces | |
| USB port The device features a socket into which a USB cable can be plugged. |
 |
| Serial interface |
|
| Serial interface type | RS-232 |
| Design | |
| Form factor The shape or design of the product. | Tower |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Display The description of display that can includes display type, resolution, size etc. | LCD |
| Certification | cULus Listed |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 160 mm |
| Depth The distance from the front to the back of something. | 387 mm |
| Height The measurement of the product from head to foot or from base to top. | 252 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 14.8 kg |
| Other features | |
| Output voltage | 120 V |
| SKU | 419965 |
| MPN | 9SX1000 |
| Brand | Eaton |
| Product Condition | Brand New/Unused |
| Product Use | General |
