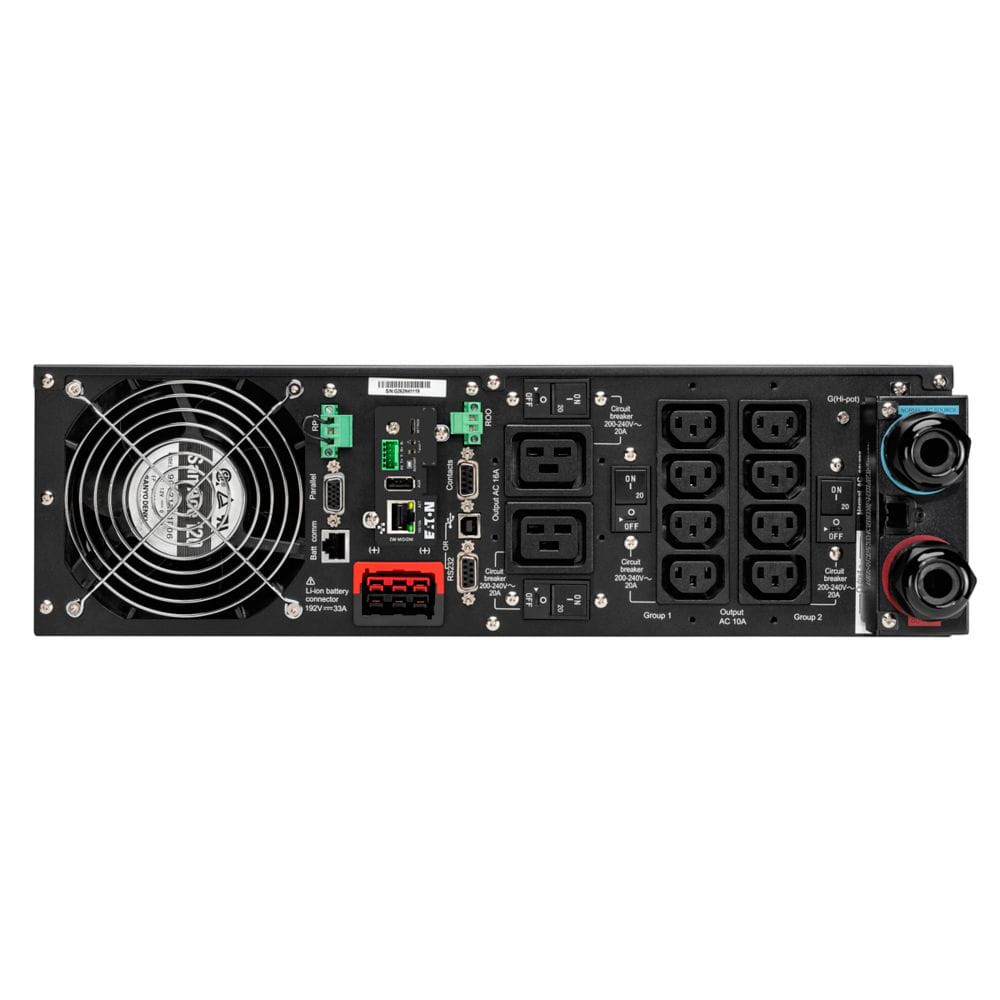

Eaton 9PX 6kVA Li-ion UPS R/T 3U Netpack
Item No:
767507
MPN:
9PX6KIRTN-L
$13,899.00
Payment options
Shipping Information
- Available for shipping
- Usually leaves our partner warehouse in 2-4 business days
Store Availability
- 3-5 business days at Bankstown Store
- 3-5 business days at Castle Hill Store
- 2-4 business days at Northmead Store
Shipping Estimate
Eaton 9PX 6000i RT3U, Double-conversion (Online), 6 kVA, 5400 W, Sine, 176 V, 276 V
Eaton 9PX 6000i RT3U. UPS topology: Double-conversion (Online), Output power capacity: 6 kVA, Output power: 5400 W. AC outlet types: C12 coupler, C13 coupler, AC outlets quantity: 8 AC outlet(s). Battery technology: Lithium, Battery capacity: 6 Ah. Form factor: Rackmount/Tower, Product colour: Black, Silver, Rack capacity: 3U
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Double-conversion (Online) |
| Output power capacity The maximum power that the device can produce. | 6 kVA |
| Output power The power that the device can produce. | 5400 W |
| Waveform | Sine |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 176 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 276 V |
| Input frequency The frequency (Hz) which is required to power the product. | 40/70 Hz |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 230 V |
| Output voltage regulation | 1% |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency | 94% |
| Ports & interfaces | |
| AC outlet types The type of outlet for AC electricity. | C12 coupler, C13 coupler |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 8 AC outlet(s) |
| Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet. | 1 |
| Battery | |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Lithium |
| Battery capacity The amount of electric charge a battery can deliver at the rated voltage. The more electrode material contained in the cell the greater its capacity. A small cell has less capacity than a larger cell with the same chemistry, although they develop the same open-circuit voltage. Capacity is measured in units such as amp-hour (A·h). | 6 Ah |
| Number of battery cells | 15 |
| Hot-swap battery |
 |
| Design | |
| Form factor The shape or design of the product. | Rackmount/Tower |
| Rack capacity The spase that device fill in rack. | 3U |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Silver |
| Display type Type of display (screen) e.g. LCD. | LCD |
| SKU | 767507 |
| MPN | 9PX6KIRTN-L |
| Brand | Eaton |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.eaton.com/ |
