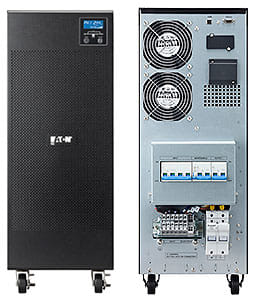

Eaton 9E Tower 10KVA/8kW XL Online/Double-Conversion UPS
Item No:
418817
MPN:
9E10KIXL
$5,267.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
Eaton 9E 10000I XL, Double-conversion (Online), 1000 VA, 8000 W, 176 V, 276 V, 45/66 Hz
The Eaton 9E is an online double-conversion power protection at an affordable price with compact yet robust construction. This UPS an ideal choice for industrial, medical and information technology (IT) applications and telecommunications.
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Double-conversion (Online) |
| Output power capacity The maximum power that the device can produce. | 1000 VA |
| Output power The power that the device can produce. | 8000 W |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 176 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 276 V |
| Input frequency The frequency (Hz) which is required to power the product. | 45/66 Hz |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 220 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 240 V |
| Maximum current The greatest possible amount of current, which is a quantity representing the rate of flow of electric charge. | 137 A |
| Overload capacity (10 minutes) | 110% |
| Overload capacity (1 minute) | 130% |
| Overload capacity (3 seconds) | 150% |
| Input current Total Harmonic Distortion (THD) | 3% |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 55 dB |
| Ports & interfaces | |
| AC outlet types The type of outlet for AC electricity. | Terminal |
| USB port The device features a socket into which a USB cable can be plugged. |
 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| RS-232 ports The number of sockets (ports) for RS-232. An RS-232 serial port was once a standard feature of a personal computer, used for connections to modems, printers, mice, data storage, uninterruptible power supplies, and other peripheral devices. Now it has been largely replaced by USB and other ports. | 1 |
| Design | |
| Form factor The shape or design of the product. | Tower |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Certification | CE, CB report (TUV) |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 262.4 mm |
| Depth The distance from the front to the back of something. | 612.9 mm |
| Height The measurement of the product from head to foot or from base to top. | 708.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 85.4 kg |
| SKU | 418817 |
| MPN | 9E10KIXL |
| Brand | Eaton |
| Product Condition | Brand New/Unused |
| Product Use | General |
