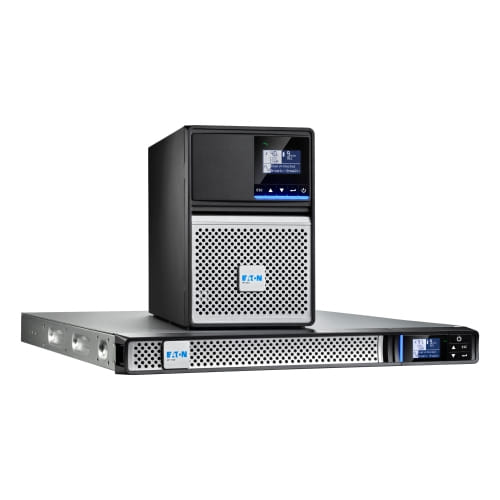

Eaton 5P Gen2, Line-Interactive, 1.55 kVA, 1350 W, Pure sine, 160 V, 294 V
Benefit from enhanced power capacity
The 5P Gen2 UPS delivers up to 33% more than comparable models available on the market in a compact format, making it ideal for protecting a wide range of applications.
Get ready for a revolution in battery management
Our new Eaton ABM+ technology provides accurate battery life prediction and timely replacement alerts, powered by machine learning.
Enjoy peace of mind that your data are secure
The Eaton 5P Gen 2 UPS, together with our cybersecure Gigabit Network Card (included in the Netpack versions), meets stringent cybersecurity standards.
Ensure continuous service and data integrity
Our IPM2 a DITPM software makes it easy to remotely monitor and manage IT infrastructure, even in hard-to-reach locations, while our Brightlayer Software Suite provides seamless integration with virtualization environments.
The 5P Gen2 UPS delivers up to 33% more than comparable models available on the market in a compact format, making it ideal for protecting a wide range of applications.
Get ready for a revolution in battery management
Our new Eaton ABM+ technology provides accurate battery life prediction and timely replacement alerts, powered by machine learning.
Enjoy peace of mind that your data are secure
The Eaton 5P Gen 2 UPS, together with our cybersecure Gigabit Network Card (included in the Netpack versions), meets stringent cybersecurity standards.
Ensure continuous service and data integrity
Our IPM2 a DITPM software makes it easy to remotely monitor and manage IT infrastructure, even in hard-to-reach locations, while our Brightlayer Software Suite provides seamless integration with virtualization environments.
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Line-Interactive |
| Output power capacity The maximum power that the device can produce. | 1.55 kVA |
| Output power The power that the device can produce. | 1350 W |
| Waveform | Pure sine |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 160 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 294 V |
| Input frequency The frequency (Hz) which is required to power the product. | 50/60 Hz |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 40 dB |
| Power protection features Features that protect the device against power problems e.g. overload. | Overdischarge |
| Ports & interfaces | |
| AC outlet types The type of outlet for AC electricity. | C13 coupler, C19 coupler |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | C20 coupler |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 10 AC outlet(s) |
| USB port The device features a socket into which a USB cable can be plugged. |
 |
| Serial interface |
|
| Serial interface type | RS-232 |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 1 |
| Cabling technology Type of cable technology performance. | 10/100/1000Base-T(X) |
| Battery | |
| Hot-swap battery |
|
| Automatic battery test |
|
| Design | |
| Form factor The shape or design of the product. | Rackmount/Tower |
| Rack capacity The spase that device fill in rack. | 2U |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Display type Type of display (screen) e.g. LCD. | LCD |
| LED indicators |
|
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Certificates | |
| Compliance certificates | CE |
| Safety regulation & standards | |
| Safety List of regulatory safety standards for all countries in which this product has been certified. | IEC/EN 62040-1, UL1778, CSA22.2 |
| Sustainability | |
| Sustainability compliance |
|
| Sustainability certificates | ENERGY STAR |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 150 mm |
| Depth The distance from the front to the back of something. | 445 mm |
| Height The measurement of the product from head to foot or from base to top. | 233 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 15.1 kg |
| Packaging data | |
| Management card included |
|
| Logistics data | |
| Harmonized System (HS) code | 85078000 |
| Other features | |
| Output connections | 8 x IEC C13 (10A) 2 x IEC C19 (16A) |
| Nominal output voltage The voltage which the manufacturer states that the device can produce. | 230 V |
| SKU | 807914 |
| MPN | 5P1550AUG2 |
| Brand | Eaton |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.eaton.com/ |
