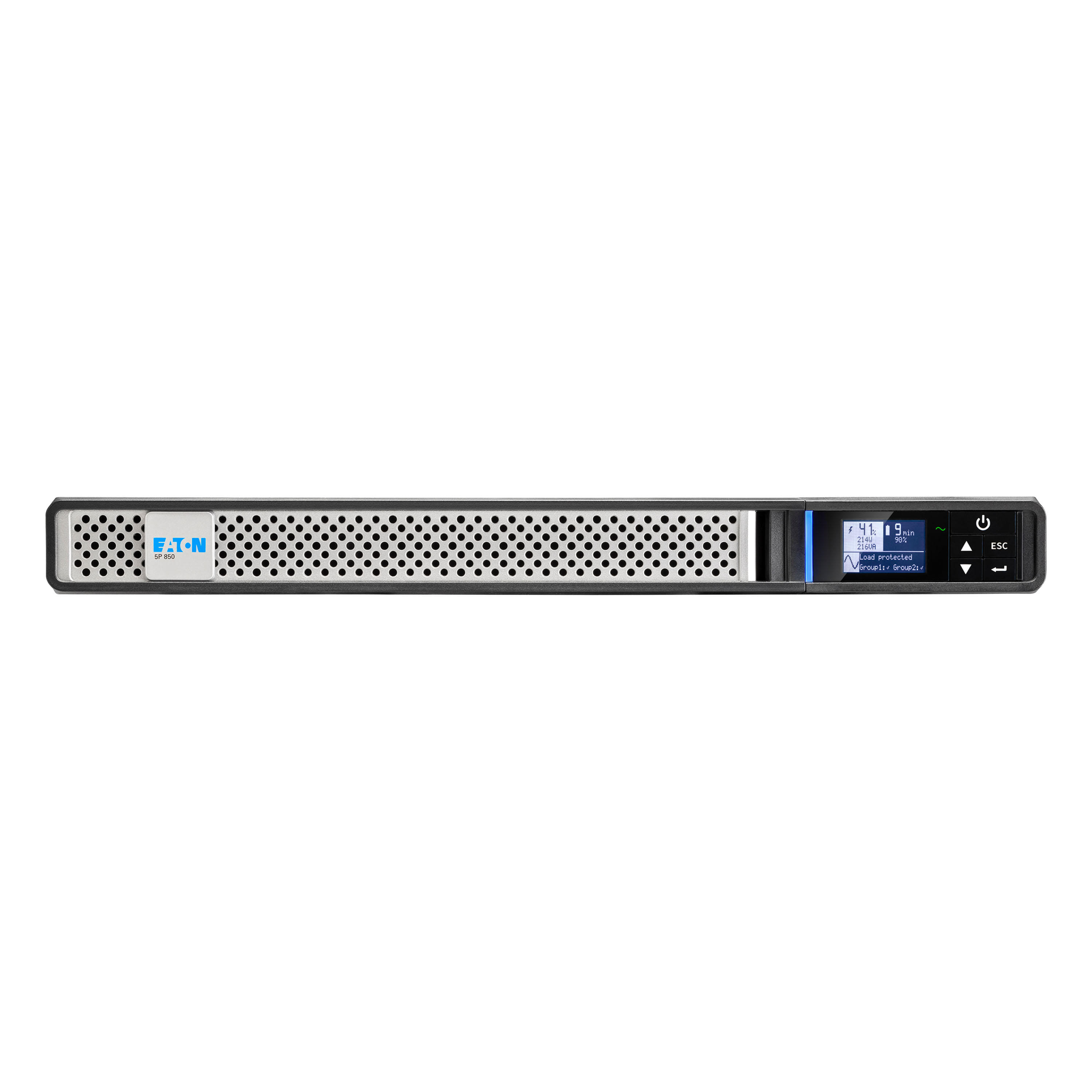

Eaton 5P850IRG2, Line-Interactive, 0.85 kVA, 680 W, Sine, 150 V, 294 V
Eaton 5P850IRG2. UPS topology: Line-Interactive, Output power capacity: 0.85 kVA, Output power: 680 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 4 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 7 Ah, Battery voltage: 6 V. Form factor: Tower, Product colour: Black, Silver, Rack capacity: 1U. Width: 438 mm, Depth: 509 mm, Height: 43.2 mm
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Line-Interactive |
| Output power capacity The maximum power that the device can produce. | 0.85 kVA |
| Output power The power that the device can produce. | 680 W |
| Waveform | Sine |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 150 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 294 V |
| Input frequency The frequency (Hz) which is required to power the product. | 47/70 Hz |
| Output operation voltage (max) The maximum output voltage produced by the device. | 240 V |
| Output frequency | 50/60 Hz |
| Automatic Voltage Regulation (AVR) |
 |
| Heat dissipation The heat generated by the power supply. | 307 BTU/h |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency | 98% |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 35 dB |
| Ports & interfaces | |
| AC outlet types The type of outlet for AC electricity. | C13 coupler |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | C14 coupler |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 4 AC outlet(s) |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| USB port type | USB Type-B |
| Serial interface |
|
| Serial interface type | RS-232 |
| Serial ports quantity The number of serial ports in a computer or peripheral. A serial port is a serial communication physical interface through which information transfers in or out one bit at a time. The term "serial port" usually identifies hardware more or less compliant to the RS-232 standard, intended to interface with a modem or with a similar communication device. In modern computers and peripherals, serial ports have largely been replaced by USBs and other interfaces. | 1 |
| Battery | |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Sealed Lead Acid (VRLA) |
| Battery capacity The amount of electric charge a battery can deliver at the rated voltage. The more electrode material contained in the cell the greater its capacity. A small cell has less capacity than a larger cell with the same chemistry, although they develop the same open-circuit voltage. Capacity is measured in units such as amp-hour (A·h). | 7 Ah |
| Battery voltage The voltage (V) of the battery. | 6 V |
| Number of batteries supported The number of batteries that can be used with the product. | 4 |
| Design | |
| Form factor The shape or design of the product. | Tower |
| Rack capacity The spase that device fill in rack. | 1U |
| Product colour The colour e.g. red, blue, green, black, white. | Black, Silver |
| Display type Type of display (screen) e.g. LCD. | LCD |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating altitude | 0 - 3000 m |
| Certificates | |
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 438 mm |
| Depth The distance from the front to the back of something. | 509 mm |
| Height The measurement of the product from head to foot or from base to top. | 43.2 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 13.7 kg |
| SKU | 808836 |
| MPN | 5P850IRG2 |
| Brand | Eaton |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.eaton.com/ |
