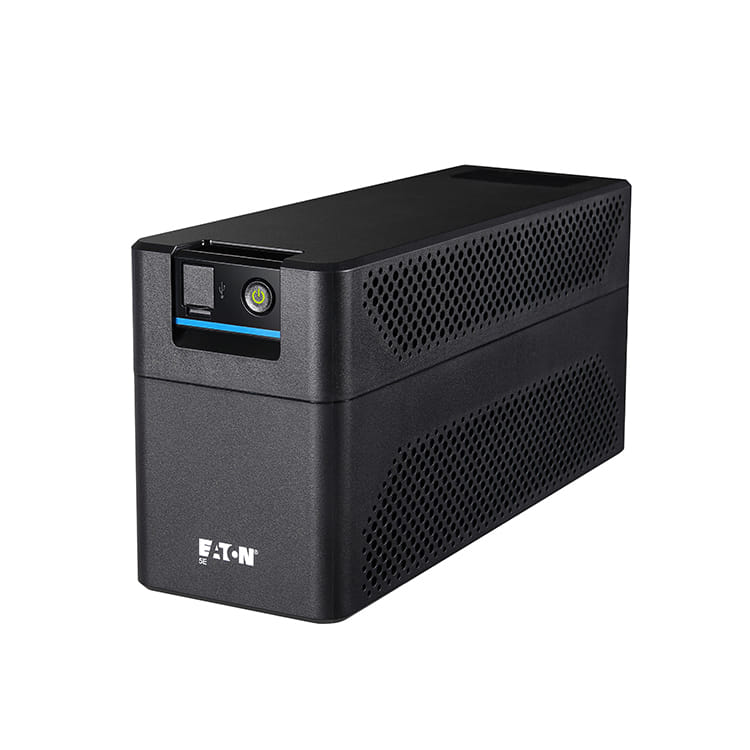

Eaton 5E1600UIAU, Line-Interactive, 1600 kVA, 900 W, 140 V, 300 V, 50/60 Hz
Eaton 5E Gen2 delivers efficient, affordable power protection for critical applications in both residential and professional settings.
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Line-Interactive |
| Output power capacity The maximum power that the device can produce. | 1600 kVA |
| Output power The power that the device can produce. | 900 W |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 140 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 300 V |
| Input frequency The frequency (Hz) which is required to power the product. | 50/60 Hz |
| Output operation voltage (max) The maximum output voltage produced by the device. | 230 V |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 25 dB |
| Ports & interfaces | |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 3 AC outlet(s) |
| USB port The device features a socket into which a USB cable can be plugged. |
 |
| Battery | |
| Typical backup time at full load The amount of time that a backup energy source (e.g. UPS - Uninterruptible Power Source) can power the device for, when the backup energy source is fully loaded (100% of capacity). | 42 min |
| Design | |
| Form factor The shape or design of the product. | Tower |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 133 mm |
| Depth The distance from the front to the back of something. | 330 mm |
| Height The measurement of the product from head to foot or from base to top. | 180 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 8.9 kg |
| Other features | |
| Nominal input voltage The voltage which the manufacturer recommends that the device needs to operate normally. | 220-240 V |
| SKU | 752579 |
| MPN | 5E1600UIAU |
| Brand | Eaton |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.eaton.com/ |
