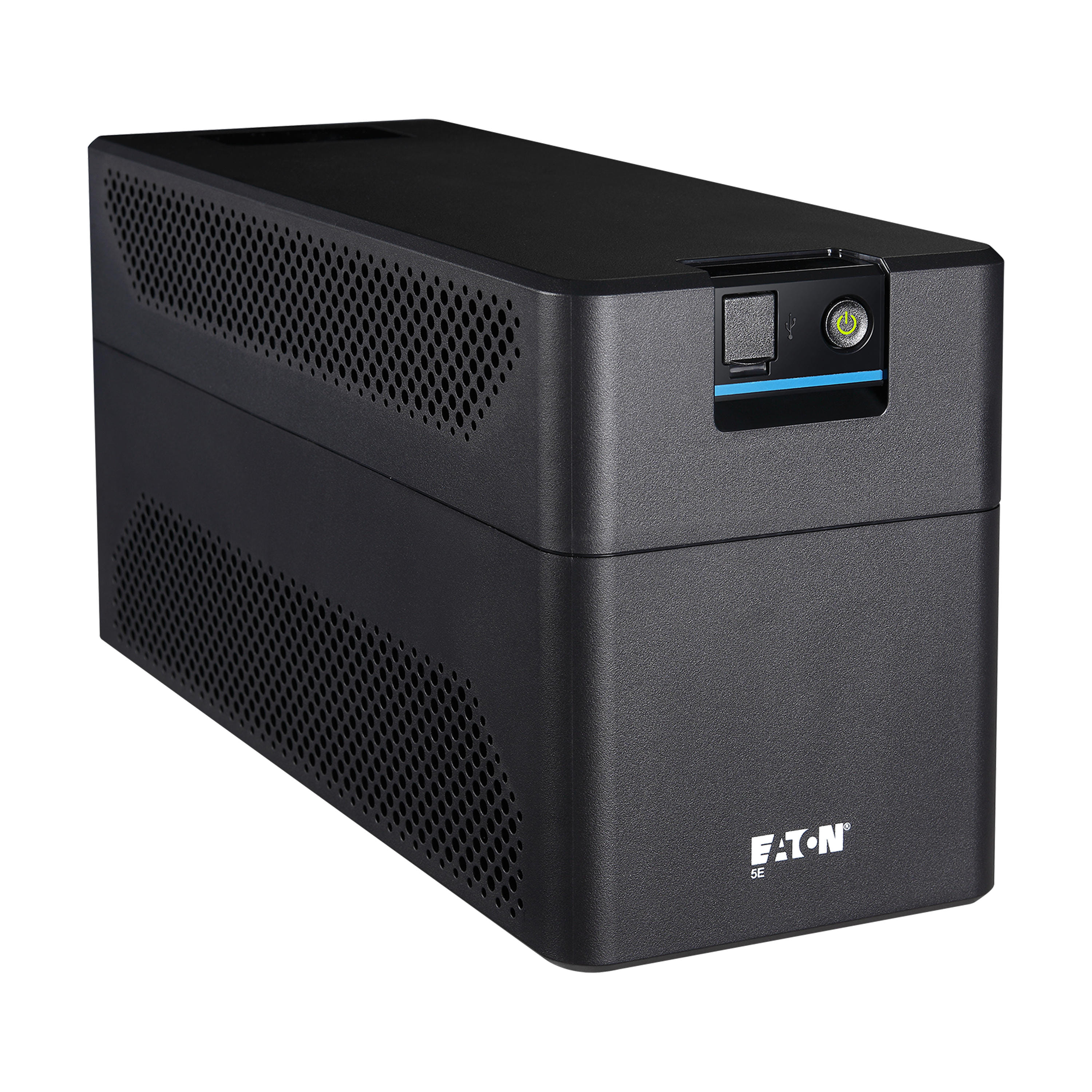

Eaton 5E2200UIAU, Line-Interactive, 2.2 kVA, 1.2 W, 140 V, 300 V, 45/65 Hz
Eaton 5E2200UIAU. UPS topology: Line-Interactive, Output power capacity: 2.2 kVA, Output power: 1.2 W. AC outlet types: Type I, Power plug: Type I, AC outlets quantity: 3 AC outlet(s). Battery technology: Lead-Acid, Battery capacity: 9 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Certification: IEC/EN 62040-3 IEC/EN 62040-1 IEC/EN 62040-2 CE EAC UKCA Cm Ukr. Width: 133 mm, Depth: 330 mm, Height: 180 mm
| Features | |
| UPS topology The two main UPS topologies are Double-Conversion True Online and Standby / Eco. Many quality-based considerations are involved when choosing the the optimal UPS for the job, like how they are coping with voltage disturbances. | Line-Interactive |
| Output power capacity The maximum power that the device can produce. | 2.2 kVA |
| Output power The power that the device can produce. | 1.2 W |
| Input operation voltage (min) The minumum voltage needed by the device during operation. | 140 V |
| Input operation voltage (max) The maximum input voltage supported by the device. | 300 V |
| Input frequency The frequency (Hz) which is required to power the product. | 45/65 Hz |
| Output operation voltage (min) The minumum voltage produced by the device during operation. | 195 V |
| Output operation voltage (max) The maximum output voltage produced by the device. | 257 V |
| Automatic Voltage Regulation (AVR) |
 |
| Efficiency | 95% |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 40 dB |
| Surge protection |
|
| Auto shut-off |
|
| Ports & interfaces | |
| AC outlet types The type of outlet for AC electricity. | Type I |
| Power plug A power plug is a 2 or 3 pinned device that is placed into an electrical socket in order to make an electrical connection. | Type I |
| AC outlets quantity The number of sockets in the device where AC electrical power can be connected. | 3 AC outlet(s) |
| USB port The device features a socket into which a USB cable can be plugged. |
|
| Battery | |
| Battery technology The type of battery in the device, e.g. nickel–cadmium (NiCd). | Lead-Acid |
| Battery capacity The amount of electric charge a battery can deliver at the rated voltage. The more electrode material contained in the cell the greater its capacity. A small cell has less capacity than a larger cell with the same chemistry, although they develop the same open-circuit voltage. Capacity is measured in units such as amp-hour (A·h). | 9 Ah |
| Battery voltage The voltage (V) of the battery. | 12 V |
| Automatic battery test |
|
| Cold start |
|
| Design | |
| Form factor The shape or design of the product. | Tower |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Certification | IEC/EN 62040-3 IEC/EN 62040-1 IEC/EN 62040-2 CE EAC UKCA Cm Ukr |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 133 mm |
| Depth The distance from the front to the back of something. | 330 mm |
| Height The measurement of the product from head to foot or from base to top. | 180 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 9.8 kg |
| Packaging data | |
| Quick installation guide |
|
| SKU | 733031 |
| MPN | 5E2200UIAU |
| Brand | Eaton |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 2 Years Warranty |
| Warranty Contact | https://www.eaton.com/ |
