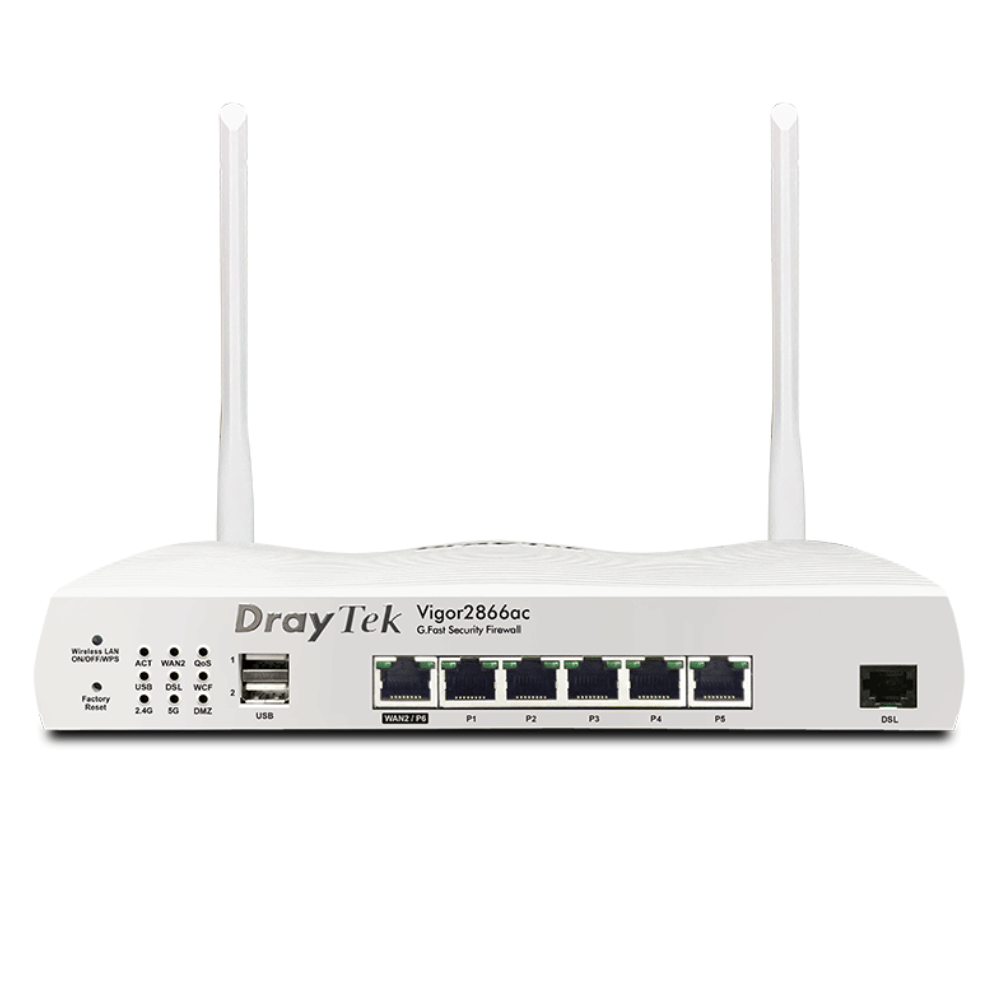

DrayTek Vigor 2866ac AC1200 Multi-WAN G.fast/VDSL2 Supervectoring Modem Router

WAN connection
Ethernet WAN
DSL WAN Whether or not the product features a DSL WAN (Wide Area Network) connection option.
SIM card slot Whether the device features a SIM card slot.
3G/4G USB modem compatibility
WAN connection type	RJ-11

Wireless LAN features
Wi-Fi band The frequency bands the product features.	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	866 Mbit/s
WLAN data transfer rate (first band)	400 Mbit/s
WLAN data transfer rate (second band)	866 Mbit/s

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	Gigabit Ethernet
Load balancing system
Dynamic DNS (DDNS)
SSID-based VLAN assignment
Wireless Distribution System (WDS) bridge
VPN tunnels quantity	32

Mobile network
Mobile network generation	5G
3G Third generation of mobile telecommunications technology, 3G finds application in wireless voice telephony, mobile Internet access, fixed wireless Internet access, video calls and mobile TV.
4G Fourth generation of mobile phone mobile communication technology standards. A 4G system provides mobile ultra-broadband Internet access, for example to laptops with USB wireless modems, to smartphones, and to other mobile devices. Conceivable applications include amended mobile web access, IP telephony, gaming services, high-definition mobile TV, video conferencing, 3D television, and cloud computing.
5G
Dual SIM support Two SIM cards can be used in the phone.

DSL features
ADSL
ADSL2
ADSL2+
VDSL
VDSL2

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	5
USB port The device features a socket into which a USB cable can be plugged.
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	1
RJ-11 ports quantity	1
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Management features
Wi-Fi Multimedia (WMM)/(WME)
Bandwidth control
Quality of Service (QoS) support
Reset button
WPS push button
MU-MIMO technology
MIMO

Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	HTTPS, WPA2, WPA3
Firewall
Access Control List (ACL)
DoS attack prevention
Filtering
URL filtering
Network address translation (NAT)

Design
Product colour The colour e.g. red, blue, green, black, white.	White
Wall mountable The product can be mounted on (attached to ) a wall.
LED indicators	ADSL, DSL, LAN
Product type The sub-category of the product.	Tabletop router

Packaging content
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Antenna
Antenna design	External
Antenna connector type The way in which the antenna is connected to the device e.g. coaxial.	SMA/RP-SMA
Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.	5 dBi
Antennas quantity	2

Power
Power source type What the power source is.	AC, DC
AC input voltage The voltage of the AC electricity that is inputted into the product.	100 - 240 V
Output voltage	12 V
Output current	2 A

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 45 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-25 - 70 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	241 mm
Depth The distance from the front to the back of something.	166 mm
Height The measurement of the product from head to foot or from base to top.	46 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	680 g

Packaging data
Screws included
