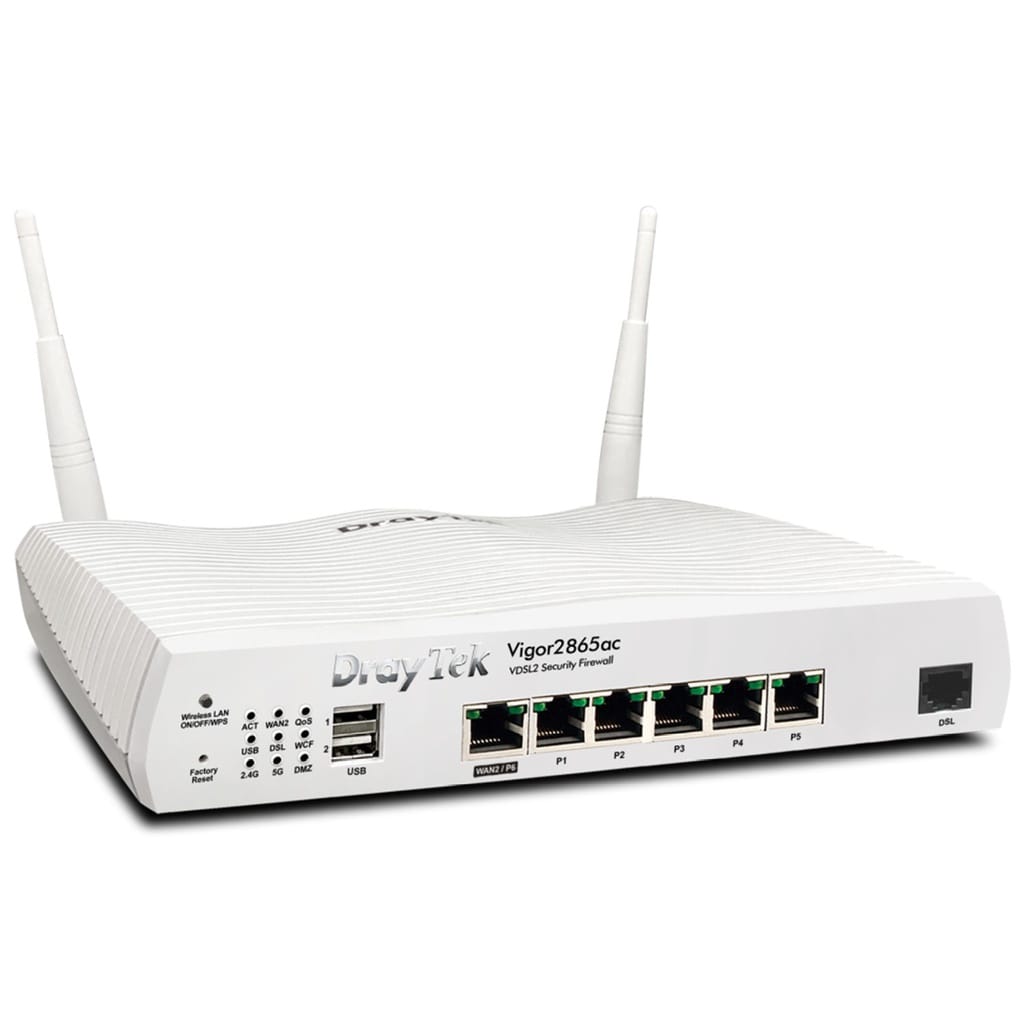

DrayTek Vigor 2865 Multi-WAN VDSL2 35b/ADSL2+ Wi-Fi5 Modem Router

WAN connection
Ethernet WAN
DSL WAN Whether or not the product features a DSL WAN (Wide Area Network) connection option.
3G/4G USB modem compatibility
WAN connection type	RJ-11

Wireless LAN features
Wi-Fi band The frequency bands the product features.	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	867 Mbit/s
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN interface type The characteristics of the Ethernet LAN interface.	Gigabit Ethernet
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Cabling technology Type of cable technology performance.	10/100/1000Base-T(X)
Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously.
Load balancing system
Policy-based routing
SSID-based VLAN assignment
Static route
Wireless Distribution System (WDS) bridge
Built-in FTP server
VPN server	32
VPN tunnels quantity	32
VPN Passthrough
VPN support	PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN

DSL features
ADSL
ADSL2
ADSL2+
VDSL
VDSL2

Ports & interfaces
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	5
USB port The device features a socket into which a USB cable can be plugged.
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	2
RJ-11 ports quantity	1

Management features
Web-based management Using a website/web application to manage something.
Web-based setup wizard
Wi-Fi Multimedia (WMM)/(WME)
Bandwidth control
Quality of Service (QoS) support
Wake-on-LAN ready
Reset button
WPS push button
MU-MIMO technology

Security
Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product.	AES, HTTPS, IPSec, SNMPv2, SNMPv3, SSH, SSH-2, SSID, SSL/TLS, TKIP, TLS, WPA2-RADIUS
Firewall
Guest access
Access Control List (ACL)
DDoS protection
Filtering
MAC address filtering Security access control method whereby the 48-bit address assigned to each network card is used to determine access to the network. MAC addresses are uniquely assigned to each card, so using MAC filtering on a network permits and denies network access to specific devices through the use of blacklists and whitelists.
IP address filtering
URL filtering
System event log
Network address translation (NAT)

Protocols
DHCP client Whether the product features a DHCP (Dynamic Host Configuration Protocol) to obtain IP addresses within a network.
DHCP server A server is a system which that responds to requests across a computer network to provide, or help to provide, a network service. DCHP servers uses the DCHP (Dynamic Host Configuration Protocol), which is a standardized networking protocol used by servers on an IP network to allocate IP addresses to computers. The purpose of DHCP is to automate the IP address configuration of a computer without a network administrator. IP addresses are typically selected from a range of assigned IP addresses stored in a database on the server and issued to a computer which requests a new IP address. An IP address is assigned to a computer for a set interval, after which, the computer must renew the IP address or acquire a new one.
Routing protocols	BGP
VoIP protocols	SIP, RTP/RTCP, ZRTP
Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP.	HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069

Design
Product colour The colour e.g. red, blue, green, black, white.	White
LED indicators	DSL, Status, WAN, WLAN
Product type The sub-category of the product.	Tabletop router

Packaging content
Cables included	AC, DSL, LAN (RJ-45)
AC adapter included
Antenna included An antenna (aerial) is built into the product or comes with it.
Quick start guide Instructions, either online, as a computer program or in paper form, to allow you to set up and start using the product quickly.

Antenna
Antenna design	External
Antenna type Type of antenna, also known an aerial, e.g. external, internal.	2x2
Antenna connector type The way in which the antenna is connected to the device e.g. coaxial.	SMA
Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction.	2.3 dBi
Antennas quantity	2
Detachable antenna(s)

Features
Firmware upgradeable

Power
Power source type What the power source is.	DC
Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable.	24 W

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	0 - 45 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-25 - 70 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions
Width The measurement or extent of something from side to side.	241 mm
Depth The distance from the front to the back of something.	166 mm
Height The measurement of the product from head to foot or from base to top.	46 mm
Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies.	620 g
