802.11ac/a/b/g/n - Indoor Patch Antenna with 10 dBi @ 5 GHz / 7.5 dBi @ 2.4 GHz (Black)

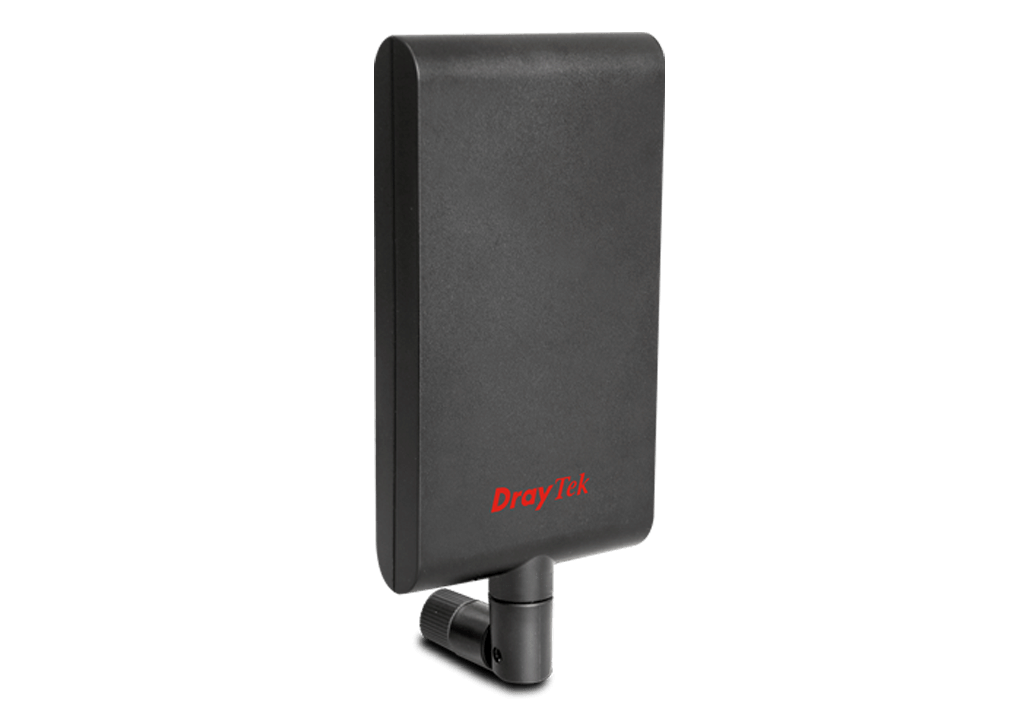

DrayTek ANT-2520 High-gain Dual-band indoor Directional Patch Antenna (DA2520)
-
| Performance | |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.4 - 2.5 / 5.15 - 5.85 GHz |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Antenna gain (2.4 GHz) | 10 dBi |
| Antenna gain (5 GHz) | 7.5 dBi |
| Impedance The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance. | 50 Ω |
| Horizontal beam width (2.4 GHz) | 70° |
| Vertical beam width (2.4 GHz) | 60° |
| Horizontal beam width (5 GHz) | 60° |
| Vertical beam width (5 GHz) | 30° |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 10 dBi |
| Features | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Directional antenna |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | RP-SMA |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | < 2.0 |
| Power handling | 2 W |
| Purpose What the product is used for. | Indoor |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 65 mm |
| Depth The distance from the front to the back of something. | 65 mm |
| Height The measurement of the product from head to foot or from base to top. | 18 mm |
| SKU | 257320 |
| MPN | DA2520 |
| Brand | Draytek |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
