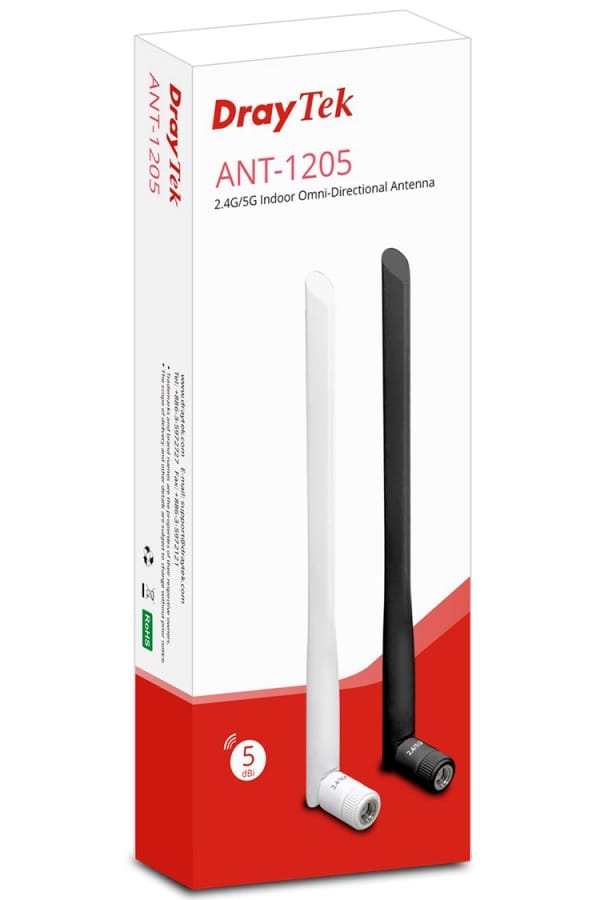

Draytek DA1205 Indoor Omni-Directional Antenna with 4.5 dBi @ 5 GHz / 5 dBi @ 2.4 GHz (Black)
DrayTek ANT-1205 is a dual-band antenna, can be a replacement antenna for VigorRouter or VigorAP. The ANT-1205 is compatible with 802.11a/b/g/n/ac standards, and 802.11 ax (Wi-Fi 6) to provide faster wireless throughput and enhance Wi-Fi performance in both 2.4G/5G. ANT-1205 is supplied in pair and available in black or white color, you can purchase the needed amount according to your Router/AP devices.
Omni-directional Indoor Antenna, 5 dBi @2.4GHz, 4.5 dBi @5GHz Package: 2 pcs per box
| Performance | |
| Frequency band A small section of the spectrum of radio communication frequencies, in which channels are usually used or set aside for the same purpose e.g.for a channel on FM radio; for mobile networks to communicate with mobile phones. | 2.4 - 5 GHz |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Antenna gain (2.4 GHz) | 2 dBi |
| Antenna gain (5 GHz) | 4.5 dBi |
| Impedance The effective resistance of an electric circuit or component to alternating current, arising from the combined effects of ohmic resistance and reactance. | 50 Ω |
| Horizontal beam width | 360° |
| Vertical beam width (2.4 GHz) | 30° |
| Vertical beam width (5 GHz) | 25° |
| Antenna gain level (max) Antenna gain is the measurement of an antenna's ability to amplify the incoming microwave signals in a particular direction, compared with the sensitivity of an isotropic antenna in any direction, or a dipole antenna in the equatorial direction. | 5 dBi |
| Features | |
| Antenna type Type of antenna, also known an aerial, e.g. external, internal. | Omni-directional antenna |
| Antenna connector type The way in which the antenna is connected to the device e.g. coaxial. | RP-SMA |
| Polarization | Linear polarization |
| Power handling | 1 W |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Weight & dimensions | |
| Height The measurement of the product from head to foot or from base to top. | 198 mm |
| Diameter Distance from one side of a body (circle or sphere) to the other side, measured by a straight line passing through the centre of the body. | 1.3 cm |
| Packaging content | |
| Quantity per pack | 2 pc(s) |
| SKU | 506162 |
| MPN | DA1205 |
| Brand | Draytek |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Warranty Period | 1 Year Return To Base Warranty |
| Warranty Contact | https://www.draytek.com.au/ |
