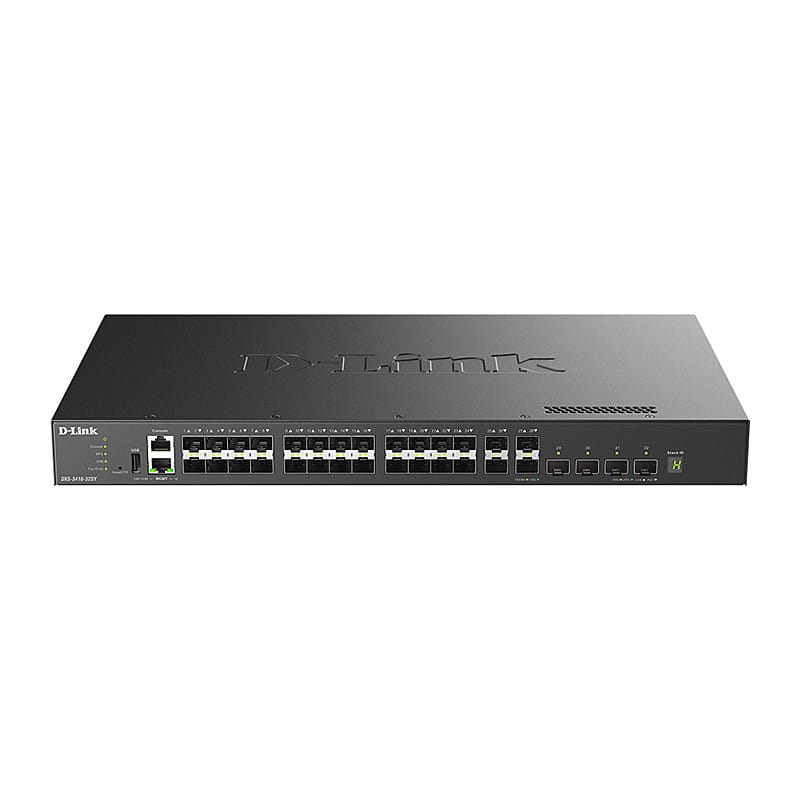

DLINK 32-Port 10 Gigabit Layer 3 Stackable Managed Switch
Item No:
811263
MPN:
DXS-3410-32SY
$8,999.95
Payment options
Shipping Information
- Available for shipping
- Usually leaves our partner warehouse in 3-5 business days
Store Availability
- 4-6 business days at Bankstown Store
- 4-6 business days at Castle Hill Store
- 3-5 business days at Northmead Store
Shipping Estimate
DLINK 32-Port 10 Gigabit Layer 3 Stackable Managed Switch with 28 10Gb SFP+ Ports and 4 10/25Gb SFP28 Ports
Features:
- 10 Gigabit Layer 3 Stackable Switch
- 28 10Gb SFP+ ports
- Four 25Gb SFP28 uplink ports
- Stackable up to 9 units (physical), 32 units (virtual)
- Supports long-distance stacking over fibre
- 200 Gbps per device stacking bandwidth
- Lossless Ethernet via Data Center Bridging (DCB)
- Redundant power supply support
- Easy-to-use web GUI
- Industry standard CLI
Specifications:
- 802.1X Access Control : Yes
- Guest VLAN : Yes
- IP Interfaces : Yes
- Layer 3 Switching : Yes
- Redundant PSU : Yes
- Routing Table Size : Yes
- Stacking : Physical and Virtual
- Stacking Capacity : Physical (9), Virtual (32)
- Number of Ports : 24 - 32
- Type of Port Required : 10 Gigabit Fibre|25 Gigabit SFP28
- Redundant Power Supply : Yes
- Stacking Bandwidth : 200 Gbps
- Switch Type : Layer 3
- Switch Series : DXS-3600 Series
- 10 Gig ports : Yes
- Layer : Layer 3
- SFP+ ports : 28
- Cable Diagnostics : Yes
- Command Line Interface : Yes
- DHCP Server Screening : Yes
- Dimensions (Size) : 441 x 250 x 44 mm
- Energy Saving Technology :EEE Compliant|RoHS 6 Compliant
- Fans : 3
- IGMP Snooping : Yes
- Jumbo Frame : 10000 bytes
- Link Aggregation : Yes
- QoS : Yes
- 19'' Rack Mountable : Yes
- Warranty : Limited Lifetime
- SNMP : Yes
- Spanning Tree Protocol : Yes
- Switching Capacity : 760 Gbps
- VLAN : 4K Groups
- Voice VLAN : Yes
- Web-based GUI : Yes
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Switch layer A network switch is a computer networking device that links networking segments. A switch has different layers, such as layer 2 (a network bridge, operating at the data link layer, interconnecting a small number of devices) and layer 4 (can act as a firewall, amongst other things). | L3 |
| Quality of Service (QoS) support |
 |
| Web-based management Using a website/web application to manage something. |
|
| ARP inspection |
|
| System event log |
|
| MIB support | RFC3621, RFC4293, RFC1850, RFC1724, RFC2782, RFC4113, RFC2620, RFC2925, RFC4293, RFC4133, |
| Ports & interfaces | |
| SFP+ module slots quantity | 28 |
| Fiber optic connector This terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. In all there have been about 100 types of optic fiber connectors produced. | SFP+ |
| Console port | RJ-45 |
| SFP28 ports quantity | 4 |
| USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black. | 1 |
| Network | |
| Networking standards The way in which the network is working, e.g. IEEE 802.11a, IEEE 802.11b, IEEE 802.11g. | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1Qaz, IEEE 802.1Qbb, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE 802.1x, IEEE 802.3x |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
|
| Copper ethernet cabling technology | 10BASE-T, 100BASE-T, 1000BASE-T |
| Port mirroring |
|
| Full duplex A full-duplex system allows communication in both directions, and unlike half-duplex, allows this to happen simultaneously. |
|
| Flow control support |
|
| Link aggregation |
|
| Spanning tree protocol |
|
| Head-of-line (HOL) blocking |
|
| VLAN support A Virtual Local Area Network (VLAN) consists of a group of computers and switches that can be physically distributed over different networks and buildings, but form one LAN on a logical level. |
|
| Virtual LAN features | Private VLAN, Port-based VLAN |
| Data transmission | |
| Switching capacity The data transfer capacity of the switch per second. | 760 Gbit/s |
| Throughput | 565.44 Mpps |
| MAC address table The MAC address is the 'Media Access Control Address'. It is a unique address given to a network interface controller (NIC) in a device. A MAC address table shows the addresses in a table format. | 48000 entries |
| Number of queues | 8 |
| Jumbo frames support |
|
| Jumbo frames | 12000 |
| Packet buffer memory | 4 MB |
| Security | |
| DHCP features | DHCP server, DHCP client |
| Access Control List (ACL) |
|
| IGMP snooping |
|
| Security algorithms Security algorithms are used to provide authentication, cipher key generation, integrity and radio link privacy to users on mobile networks. The security algorithms supported are the ones that can be used with this product. | 802.1x RADIUS |
| SSH/SSL support |
|
| Loop protection |
|
| BPDU filtering/protection |
|
| Authentication | Guest VLAN, MAC-based authentication, Port-based authentication |
| Multicast features | |
| Multicast support |
|
| Protocols | |
| Supported network protocols Network protocols tested as compatible with this product e.g. FTP,HTML, POP. | IPv6, IPv4 |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Stackable Devices can be placed on top of each other. |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 3 fan(s) |
| Safety List of regulatory safety standards for all countries in which this product has been certified. | cUL, CB, BSMI |
| Electromagnetic compatibility List of countries and their respective regulatory agency standards with which the product complies. | FCC Class A, CE Class A, VCCI Class A, IC, RCM, BSMI |
| Performance | |
| Physical stacking (units) | 9 |
| Virtual stacking (units) | 32 |
| Noise level The amplitude level of the undesired background noise, usually measured in decibels (db). | 53.3 dB |
| Mean time between failures (MTBF) Statistical model used to indicate product/mechanism reliability; expressed in hours and percentage of duty cycle. This number (in hours) does not indicate the mean time before failure for a single unit/mechanism. | 437675.04 h |
| Power | |
| Power source What is providing power for the product e.g. mains electricity. | AC |
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) The maximum amount of power used by the device. | 104 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 50 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation The heat generated by the power supply. | 354.86 BTU/h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 441 mm |
| Depth The distance from the front to the back of something. | 250 mm |
| Height The measurement of the product from head to foot or from base to top. | 44 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 3.88 kg |
| SKU | 811263 |
| MPN | DXS-3410-32SY |
| Brand | D-Link |
| Product Condition | Brand New/Unused |
| Stock Availability | Available for Shipping |
| Product Use | General |
| Warranty Period | 3 Years Warranty |
| Warranty Contact | https://www.dlink.com.au/ |
