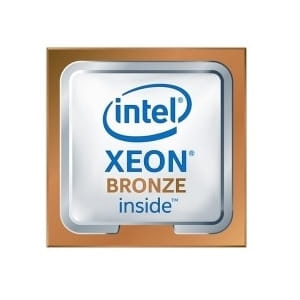

DELL Xeon Bronze 3204, Intel Xeon Bronze, LGA 3647 (Socket P), Server/workstation, 14 nm, 1.9 GHz, 64-bit
DELL Xeon Bronze 3204. Processor family: Intel Xeon Bronze, Processor socket: LGA 3647 (Socket P), Component for: Server/workstation. Memory channels: Hexa-channel, Maximum internal memory supported by processor: 1024 GB, Memory types supported by processor: DDR4-SDRAM. Supported instruction sets: AVX-512, Scalability: 2S. Processor package size: 76.0 x 56.5 mm. Compatibility: - PowerEdge C6420 - PowerEdge FC640 - PowerEdge M640 - PowerEdge M640 VRTX - PowerEdge MX740C -...
| Processor | |
| Processor base frequency | 1.9 GHz |
| Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors. | Intel Xeon Bronze |
| Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores). | 6 |
| Processor socket Mechanical component(s) that provides mechanical and electrical connections between a microprocessor and a printed circuit board (PCB). This allows the processor to be replaced without soldering. | LGA 3647 (Socket P) |
| Component for What this product is used as a part of (component for). | Server/workstation |
| Processor lithography The process which is performed by the processor e.g. CPU (Central Processing Unit). | 14 nm |
| Processor model The model number for the processor in a computer. | 3204 |
| Processor threads | 6 |
| Processor operating modes Operating modes for the processors that place restrictions on the type and scope of operations for certain processes run by the CPU. This design allows the operating system to run with more privileges than application software. | 64-bit |
| Processor cache | 8.25 MB |
| Thermal Design Power (TDP) | 85 W |
| Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded. | 1.9 GHz |
| Processor codename | Cascade Lake |
| Processor ARK ID | 193381 |
| Memory | |
| Maximum internal memory supported by processor | 1024 GB |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2133 MHz |
| Memory channels | Hexa-channel |
| ECC ECC means Error Correction Code, and it is memory that is able to detect and correct some memory errors without user intervention. |
 |
| Graphics | |
| On-board graphics adapter Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing. |
 |
| Discrete graphics adapter |
|
| On-board graphics adapter model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard. | Not available |
| Discrete graphics adapter model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters. | Not available |
| Features | |
| Execute Disable Bit |
|
| Maximum number of PCI Express lanes | 48 |
| PCI Express slots version | 3.0 |
| Supported instruction sets | AVX-512 |
| Scalability | 2S |
| Embedded options available |
|
| PCI Express CEM revision | 3.0 |
| Harmonized System (HS) code | 8542310001 |
| Processor special features | |
| Intel® Hyper Threading Technology (Intel® HT Technology) <b>Improved Performance for Threaded Software</b> Intel® Hyper-Threading Technology (Intel® HT Technology) makes efficient use of processor resources, enabling multiple threads to run on each core and increasing processor throughput. Available on Intel® Core™ and Intel® Xeon® processors, Intel HT Technology helps run demanding applications simultaneously, protect and manage systems, and provide headroom for business growth. |
|
| Intel® Turbo Boost Technology <b>Higher Performance When You Need It Most</b> Intel® Turbo Boost Technology 2.0 accelerates processor and graphics performance by increasing the operating frequency when operating below specification limits. The maximum frequency varies depending on workload, hardware, software, and overall system configuration. |
|
| Intel® AES New Instructions (Intel® AES-NI) <b>Added Security with Faster Data Encryption</b> The Intel® Advanced Encryption Standard New Instructions (Intel® AES-NI) enable fast and secure data encryption and decryption for better performance and less risk from timing and cache-based attacks than table-based software implementations. Intel AES-NI supports usages such as standard key lengths, standard modes of operation, and even some nonstandard or future variants. |
|
| Enhanced Intel SpeedStep Technology |
|
| Intel Trusted Execution Technology |
|
| Intel® Speed Shift Technology Intel® Speed Shift Technology uses hardware-controlled P-states to deliver dramatically quicker responsiveness with single-threaded, transient (short duration) workloads, such as web browsing, by allowing the processor to more quickly select its best operating frequency and voltage for optimal performance and power efficiency. |
|
| Intel VT-x with Extended Page Tables (EPT) |
|
| Intel TSX-NI |
|
| Intel 64 |
|
| Intel Virtualization Technology (VT-x) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Intel Virtualization Technology for Directed I/O (VT-d) <b>Simplify Virtualization and Reduce Overheads</b> Intel® Virtualization Technology (Intel® VT) helps make virtualization practical by eliminating performance overheads, reducing complexity, and improving security with hardware assistance. Virtualization allows multiple workloads to share a common set of resources so that a variety of workloads can co-locate while maintaining full isolation from each other. |
|
| Intel Turbo Boost Max Technology 3.0 |
|
| AVX-512 Fused Multiply-Add (FMA) units | 1 |
| Intel® Deep Learning Boost (Intel® DL Boost) |
|
| Intel® Resource Director Technology (Intel® RDT) |
|
| Intel® Volume Management Device (VMD) |
|
| Intel® Run Sure Technology |
|
| Mode-based Execute Control (MBE) |
|
| Intel® vPro™ Platform Eligibility |
|
| Intel Speed Select Technology (SST) |
|
| Intel® Speed Select Technology - Base Frequency (Intel® SST-BF) |
|
| Intel® Optane™ DC Persistent Memory technology |
|
| Operational conditions | |
| Tcase | 77 °C |
| Technical details | |
| Launch date | Q2'19 |
| Product type The sub-category of the product. | Processor |
| Status | Launched |
| Memory speed (max) | 2133 MHz |
| Number of UPI links | 2 |
| Weight & dimensions | |
| Processor package size | 76.0 x 56.5 mm |
| Other features | |
| Compatibility The other products, software and hardware this product can be used with. | - PowerEdge C6420 - PowerEdge FC640 - PowerEdge M640 - PowerEdge M640 VRTX - PowerEdge MX740C - PowerEdge R440 - PowerEdge R540 - PowerEdge R640 - PowerEdge R740 - PowerEdge R740XD - PowerEdge R740xd2 - PowerEdge T440 - PowerEdge T640 - PowerEdge XR2 |
| SKU | 486749 |
| MPN | 338-BSDQ |
| Brand | Dell |
| Product Condition | Brand New/Unused |
| CPU Series | Intel Xeon |
| CPU Generation | N/A |
| CPU Socket | LGA 3647 |
| Stock Availability | Available for Shipping, In Stock at Warehouse |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.dell.com/ |
