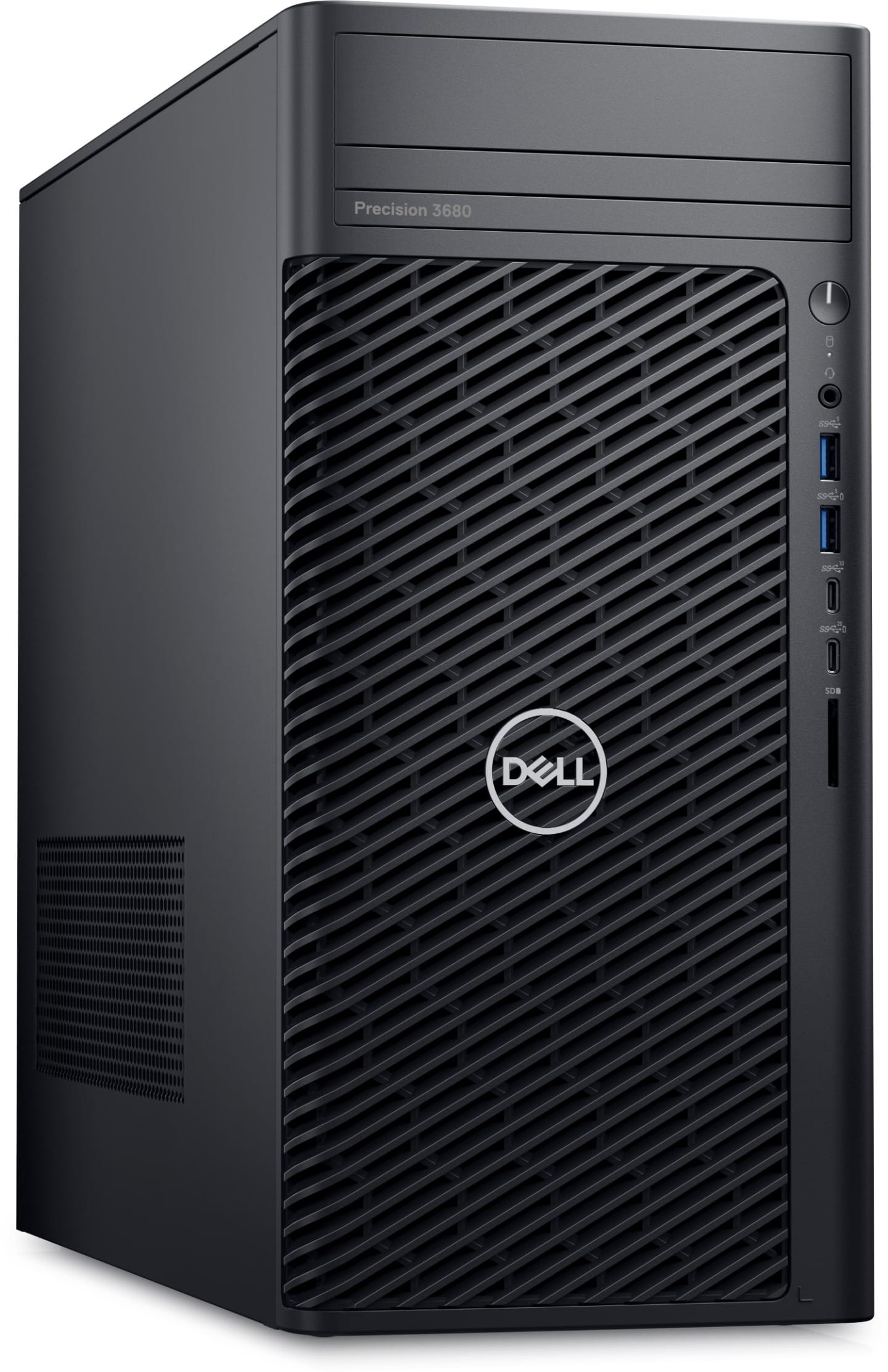

Dell Precision 3680 Tower PC, i7-14700K, 32GB RAM, 1TB SSD, T1000, Windows 11 Pro

Processor
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel® Core™ i7
Processor generation	Intel® Core™ i7 (14th gen)
Processor model The model number for the processor in a computer.	i7-14700K
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	20
Processor threads	28
Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.	5.6 GHz
Performance cores	8
Efficient cores	12
Performance-core Max Turbo Frequency	5.5 GHz
Efficient-core Max Turbo Frequency	4.3 GHz
Performance-core base frequency	3.4 GHz
Efficient-core base frequency	2.5 GHz
Processor cache	33 MB
Processor cache type	Smart Cache
Number of processors installed Number of processors in the product.	1
Processor base power	125 W
Maximum turbo power	253 W

Memory
Internal memory A computer's memory which is directly accessible to the CPU.	32 GB
Maximum internal memory The maximum internal memory which is available in the product.	128 GB
Internal memory type The type of internal memory such as RAM, GDDR5.	DDR5-SDRAM
Memory slots Number and type of memory expansion slots, including connector and memory module descriptions.	4x DIMM
Non-ECC
Memory data transfer rate	4400 MT/s

Storage
Total storage capacity The total amount of data that can be stored on the device.	1 TB
Storage media Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).	SSD
Optical drive type An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.
Total SSDs capacity	1 TB
Number of SSDs installed	1
SSD capacity The Solid State Drive's data storage capacity.	1 TB

Graphics
Discrete graphics card
On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.	NVIDIA T1000
Discrete graphics card memory	4 GB
Discrete graphics memory type	GDDR6
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	Intel UHD Graphics 770

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Cabling technology Type of cable technology performance.	10/100/1000Base-T(X)
LAN controller	Intel® I219-LM
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.

Ports & interfaces
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.	3
USB 3.2 Gen 2x2 Type-C ports quantity	1
PowerShare
Number of USB ports with PowerShare support	2
DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.	2
DisplayPort version	1.4a
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1
Line-out
Combo headphone/mic port
Number of rear USB ports	6
Number of front USB ports	4

Design
Chassis type The type of rigid framework onto which is the hosuing for device components.	Tower
Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.	Vertical
Water cooling system System using water to remove heat from a machine or system.
Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type	Kensington
Product colour The colour e.g. red, blue, green, black, white.	Black
Viewing window Transparent window in the device, which is created to view the progress of performance.

Performance
Market positioning Under which category can the device be positioned in the market, e.g. camera phone.	Business
Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard.	Intel W680
Audio chip	Realtek ALC3246-CG
Audio system System used to play music or speech.	High Definition Audio
Built-in speaker(s) The device contains speaker(s) to produce sound.
Number of speakers The quantity of speakers included in/with the product.	1
Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.
Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version	2.0
Product type The sub-category of the product.	Workstation

Software
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	Windows 11 Pro
Operating system architecture The way in which the operating system of a computer/smartphone (32-bit/64-bit) is set up.	64-bit

Power
Power supply input voltage	90 - 264 V
Power supply input frequency The frequency of the electricity, usually measured in Hertz (Hz), which is supplied by the power supply. Mains electricity in many parts of the world is 50Hz.	47/63 Hz
80 PLUS certification	80 PLUS Platinum

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	10 - 35 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 65 °C
Operating relative humidity (H-H)	20 - 85%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating vibration Environmental requirements for vibration in operating mode	0.52 G
Non-operating vibration Environmental requirements for vibration in non-operating mode	2 G
Operating shock Environmental requirements for optimal protection from impact in operating mode	40 G
Non-operating shock Environmental requirements for optimal protection from impact in non-operating mode	105 G

Weight & dimensions
Width The measurement or extent of something from side to side.	173 mm
Depth The distance from the front to the back of something.	420.2 mm
Height The measurement of the product from head to foot or from base to top.	372.9 mm

Packaging content
Display included This product includes a display.
Cables included	AC
