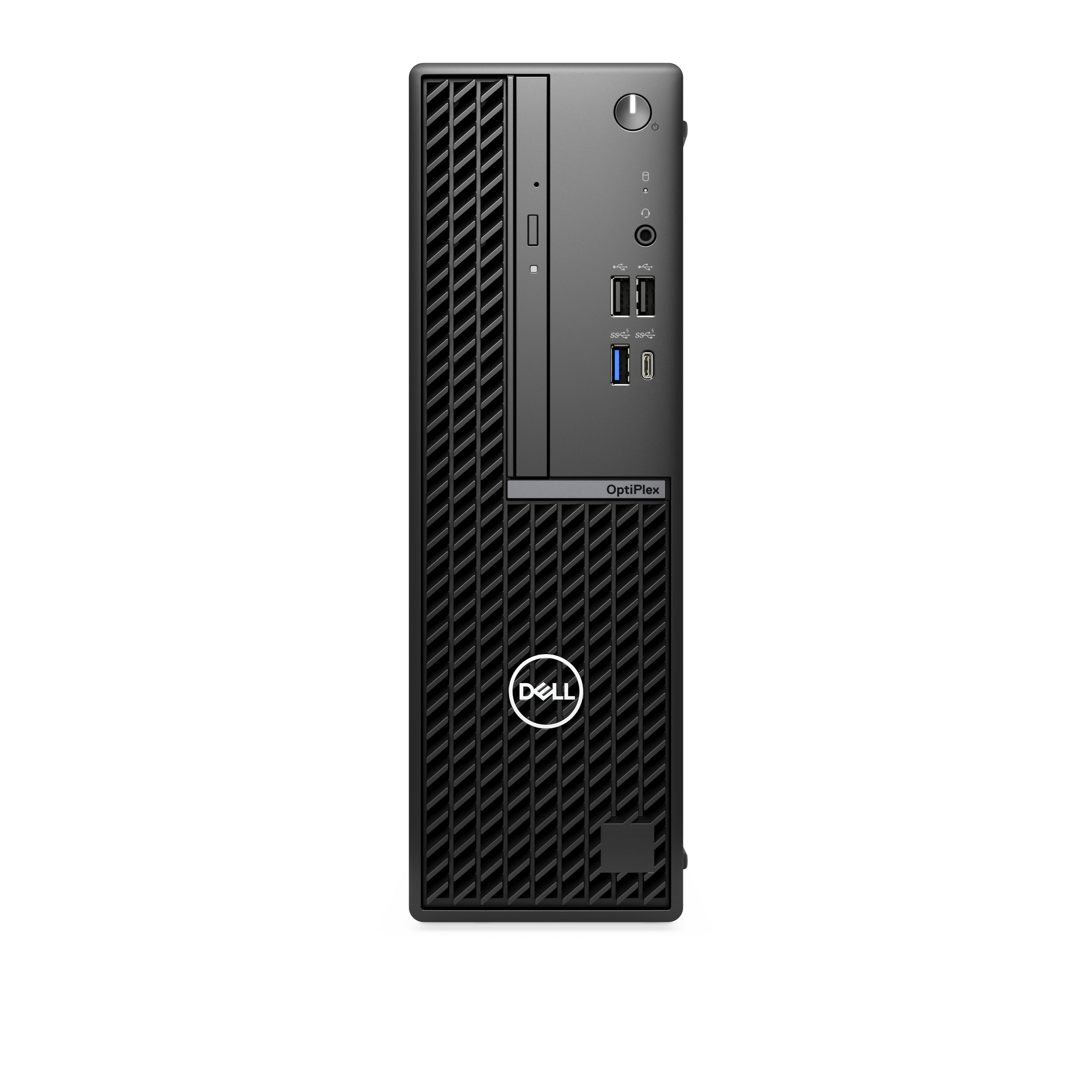

Dell Optiplex 7020 Small Form Factor Desktop PC, i5-14500, 16GB RAM, 512GB SSD, Windows 11 Pro

Processor
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel® Core™ i5
Processor generation	Intel® Core™ i5 (14th gen)
Processor model The model number for the processor in a computer.	i5-14500
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	14
Processor threads	20
Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.	5 GHz
Performance cores	6
Efficient cores	8
Performance-core Max Turbo Frequency	5 GHz
Efficient-core Max Turbo Frequency	3.7 GHz
Performance-core base frequency	2.6 GHz
Efficient-core base frequency	1.9 GHz
Processor cache	24 MB
Processor cache type	Smart Cache
Number of processors installed Number of processors in the product.	1
Processor base power	65 W
Maximum turbo power	154 W

Memory
Internal memory A computer's memory which is directly accessible to the CPU.	16 GB
Maximum internal memory The maximum internal memory which is available in the product.	64 GB
Internal memory type The type of internal memory such as RAM, GDDR5.	DDR5-SDRAM
Memory slots Number and type of memory expansion slots, including connector and memory module descriptions.	2x DIMM
Buffered memory type	Unregistered (unbuffered)

Storage
Total storage capacity The total amount of data that can be stored on the device.	512 GB
Storage media Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).	SSD
Optical drive type An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.
Total SSDs capacity	512 GB
Number of SSDs installed	1
SSD capacity The Solid State Drive's data storage capacity.	512 GB
SSD interface The type of interface(s) with which the Solid State Drive is connected to other hardware.	PCI Express 4.0
NVMe NVM Express (NVMe) or Non-Volatile Memory Host Controller Interface Specification (NVMHCIS) is an open logical device interface specification for accessing non-volatile storage media attached via a PCI Express (PCIe) bus. NVM Express, as a logical device interface, has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.
SSD form factor The size of the solid-state drive, given in inches	M.2

Graphics
Discrete graphics card
On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	Intel UHD Graphics 770

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Cabling technology Type of cable technology performance.	10/100/1000Base-T(X)

Ports & interfaces
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity Number of USB 3.0 (3.1 Gen 1) ports with Type-C connector. USB 3.0 (3.1 Gen 1) is USB interface version which supports transfer rate up to 5 Gbit/s (SuperSpeed). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.	1
USB Type-C DisplayPort Alternate Mode
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	1
HDMI version	1.4b
DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.	1
DisplayPort version	1.4a
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1
Combo headphone/mic port
Total number of SATA connectors	2

Expansion slots
PCI Express x1 (Gen 3.x) slots	1
PCI Express x16 (Gen 3.x) slots Places where PCI Express x16 (Gen 3.x) are placed inside and connected to the computer motherboard.	1

Design
Chassis type The type of rigid framework onto which is the hosuing for device components.	SFF
Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.	Vertical
Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type	Kensington
Product colour The colour e.g. red, blue, green, black, white.	Black

Performance
Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard.	Intel Q670
Audio chip	Realtek ALC3204-CG
Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version	2.0
Product type The sub-category of the product.	PC

Software
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	Windows 11 Pro
Operating system architecture The way in which the operating system of a computer/smartphone (32-bit/64-bit) is set up.	64-bit

Power
Power supply input voltage	90 - 264 V
Power supply input frequency The frequency of the electricity, usually measured in Hertz (Hz), which is supplied by the power supply. Mains electricity in many parts of the world is 50Hz.	47/63 Hz

Sustainability
Sustainability certificates	ENERGY STAR, TCO

Weight & dimensions
Width The measurement or extent of something from side to side.	92.6 mm
Depth The distance from the front to the back of something.	292.8 mm
Height The measurement of the product from head to foot or from base to top.	290 mm

Packaging content
Display included This product includes a display.
Cables included	AC
