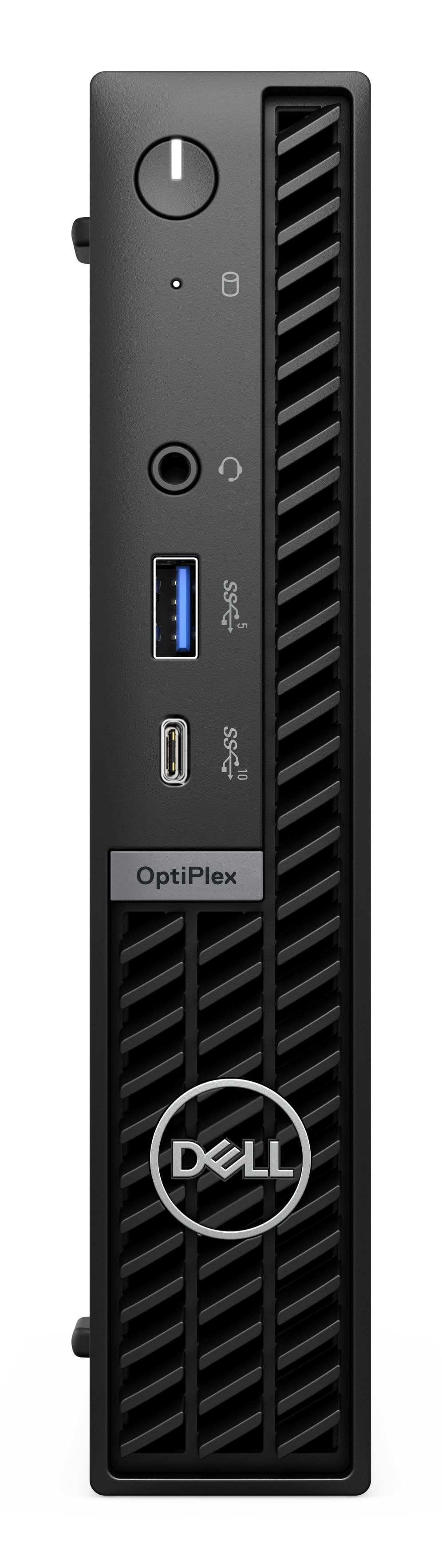

Dell OptiPlex 7020 Micro Form Factor Desktop PC, i5-12500T, 8GB RAM, 256GB SSD, Windows 11 Pro

Processor
Processor manufacturer The manufacturer that produced the processor.	Intel
Processor family A family of processors is a group of processors produced by one company over a short period of time e.g. Intel Pentium processors.	Intel® Core™ i5
Processor generation	12th gen Intel® Core™ i5
Processor model The model number for the processor in a computer.	i5-12500T
Processor cores The number of central processing units ('cores') in a processor. Some processors have 1 core, others have 2 (e.g. Intel Core Duo) or more (e.g. the Intel Xeon E7-2850 has 10 cores).	6
Processor threads	12
Processor boost frequency The turbo boost is an automatic, managed accelleration of the processor when one of the cores is overloaded.	4.4 GHz
Performance cores	6
Performance-core Max Turbo Frequency	4.4 GHz
Performance-core base frequency	2 GHz
Processor cache	18 MB
Processor cache type	Smart Cache
Number of processors installed Number of processors in the product.	1
Processor base power	35 W
Maximum turbo power	74 W

Memory
Internal memory A computer's memory which is directly accessible to the CPU.	8 GB
Maximum internal memory The maximum internal memory which is available in the product.	64 GB
Internal memory type The type of internal memory such as RAM, GDDR5.	DDR5-SDRAM
Memory slots Number and type of memory expansion slots, including connector and memory module descriptions.	2x SO-DIMM

Storage
Total storage capacity The total amount of data that can be stored on the device.	256 GB
Storage media Used for the storage of data e.g. HDD (hard disk drive), SSD (solid-state drive).	SSD
Optical drive type An optical drive uses laser to read optical discs such as CDs, DVDs and Blu-Ray. Some types of optical drive are: CD ROM drive, CR-RW (CD writer) drive, DVD-ROM.
Number of storage drives installed Amount of storage drives built into the device.	1
Total SSDs capacity	256 GB
Number of SSDs installed	1
SSD capacity The Solid State Drive's data storage capacity.	256 GB

Graphics
Discrete graphics card
On-board graphics card Graphics hardware which is built into the motherboard or CPU, as opposed to a separate graphics adapter (video card). On-board graphics uses CPU and RAM for graphics processing.
Discrete graphics card model A graphics adapter (often known as a video card) generates images for a display. A discrete graphics adapter plugs into the motherboard, and usually produces much better graphics than an integrated graphics adapter. There are various models of discrete graphics adapters.	Not available
On-board GPU manufacturer	Intel
On-board graphics card family	Intel® UHD Graphics
On-board graphics card model "Graphic adapter" is the hardware that produces images on a display. "On-board" means that the graphics adapter is intergrated inside the motherboard.	Intel UHD Graphics 770

Network
Ethernet LAN An Ethernet LAN (Local Area Network) interface is present, for a wired conection via a cable.
Ethernet LAN data rates The different speed levels of the Ethernet LAN connection.	10,100,1000 Mbit/s
Wi-Fi Popular technology that allows an electronic device to exchange data or connect to the internet wirelessly using radio waves.
Top Wi-Fi standard Connection of this device is done via Wi-Fi in a high standard.	Wi-Fi 6 (802.11ax)
Wi-Fi standards The type of wireless local area network (LAN). It can be ad-hoc, where units in a network communicate peer-to-peer, or Infrastructure, where units communicate with each other via an access point A LAN interconnects computers in a small area e.g. home, school or office.	Wi-Fi 6 (802.11ax)
Bluetooth Bluetooth is a low-power radio technology developed to replace the cables and wires currently used to link or connect electronic devices such as personal computers, printers, and a wide variety of handheld devices including mobile phones. Because it uses radio-wave connectivity, a Bluetooth-enabled device has a constant, established connection to whatever browser it uses. This saves the user the trouble of logging on to check for emails or news updates, for example.

Ports & interfaces
USB 2.0 ports quantity Number of USB 2.0 ports (connecting interfaces) in the device. USB 2.0 was released in April 2000 (now called "Hi-Speed"), adding higher maximum signaling rate of 480 Mbit/s (effective throughput up to 35 MB/s or 280 Mbit/s), USB 2.0 ports are usually black.	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity Number of USB 3.1 (3.1 Gen 2) ports with Type-C connector. USB 3.1 (3.1 Gen 2) is USB interface version which supports transfer rate up to 10 Gbit/s (SuperSpeed+). USB Type-C connector has symmetrical design architecture and compatible with Thunderbolt 3 interface.	1
PowerShare
Number of USB ports with PowerShare support	1
HDMI ports quantity The number of sockets (ports) for HDMI connections. HDMI (High-Definition Multimedia Interface) is a compact audio/video interface for transferring uncompressed video data and compressed/uncompressed digital audio data from a HDMI-compliant device ("the source device") to a compatible computer monitor, video projector, digital television, or digital audio device. HDMI is a digital replacement for existing analog video standards.	1
HDMI version	1.4b
DisplayPorts quantity Number of DisplayPorts. A DisplayPort is a digital display interface developed by the Video Electronics Standards Association (VESA). The interface is primarily used to connect a video source to a display device such as a computer monitor, though it can also be used to carry audio, USB, and other forms of data.	1
DisplayPort version	1.4a
Ethernet LAN (RJ-45) ports Number of Ethernet LAN (RJ-45) ports (connecting interfaces) in the device. Ethernet LAN (RJ-45) ports allow a computer to connect to the ethernet.	1
Combo headphone/mic port
DC-in jack The socket/plug where the DC electricity supply connects to the device.

Design
Chassis type The type of rigid framework onto which is the hosuing for device components.	MFF
Placement supported Where the product can be placed e.g. indoor/outdoor, horizontal/vertical.	Horizontal/Vertical
Cable lock slot Holes on the edge of devices through which a cable lock can be passed, so the device can be locked to a desk etc.
Cable lock slot type	Kensington
Product colour The colour e.g. red, blue, green, black, white.	Black

Performance
Market positioning Under which category can the device be positioned in the market, e.g. camera phone.	Business
Motherboard chipset The chipset connects the microprocessor to the rest of the motherboard.	Intel Q670
Audio chip	Realtek ALC3204
Built-in speaker(s) The device contains speaker(s) to produce sound.
Number of speakers The quantity of speakers included in/with the product.	1
Password protection The computer, smartphone etc. can only be used when the correct password is entered, therefore making it more secure.
Trusted Platform Module (TPM)
Trusted Platform Module (TPM) version	2.0
Product type The sub-category of the product.	Mini PC

Software
Operating system installed Type of operating system on a device e.g. IOS on Apple devices, Android for mobile devices.	Windows 11 Pro
Operating system architecture The way in which the operating system of a computer/smartphone (32-bit/64-bit) is set up.	64-bit

Power
Power supply input voltage	100 - 240 V
Power supply input frequency The frequency of the electricity, usually measured in Hertz (Hz), which is supplied by the power supply. Mains electricity in many parts of the world is 50Hz.	50/60 Hz

Operational conditions
Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated.	10 - 35 °C
Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored.	-40 - 65 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	-15.2 - 3048 m
Non-operating altitude	-15.2 - 10668 m
Operating vibration Environmental requirements for vibration in operating mode	0.26 G
Non-operating vibration Environmental requirements for vibration in non-operating mode	1.37 G
Operating shock Environmental requirements for optimal protection from impact in operating mode	40 G
Non-operating shock Environmental requirements for optimal protection from impact in non-operating mode	105 G

Sustainability
Sustainability certificates	TCO, ENERGY STAR, EPEAT Climate +
Doesn't contain	PVC/BFR

Weight & dimensions
Width The measurement or extent of something from side to side.	36 mm
Depth The distance from the front to the back of something.	178 mm
Height The measurement of the product from head to foot or from base to top.	182 mm

Packaging content
Display included This product includes a display.
