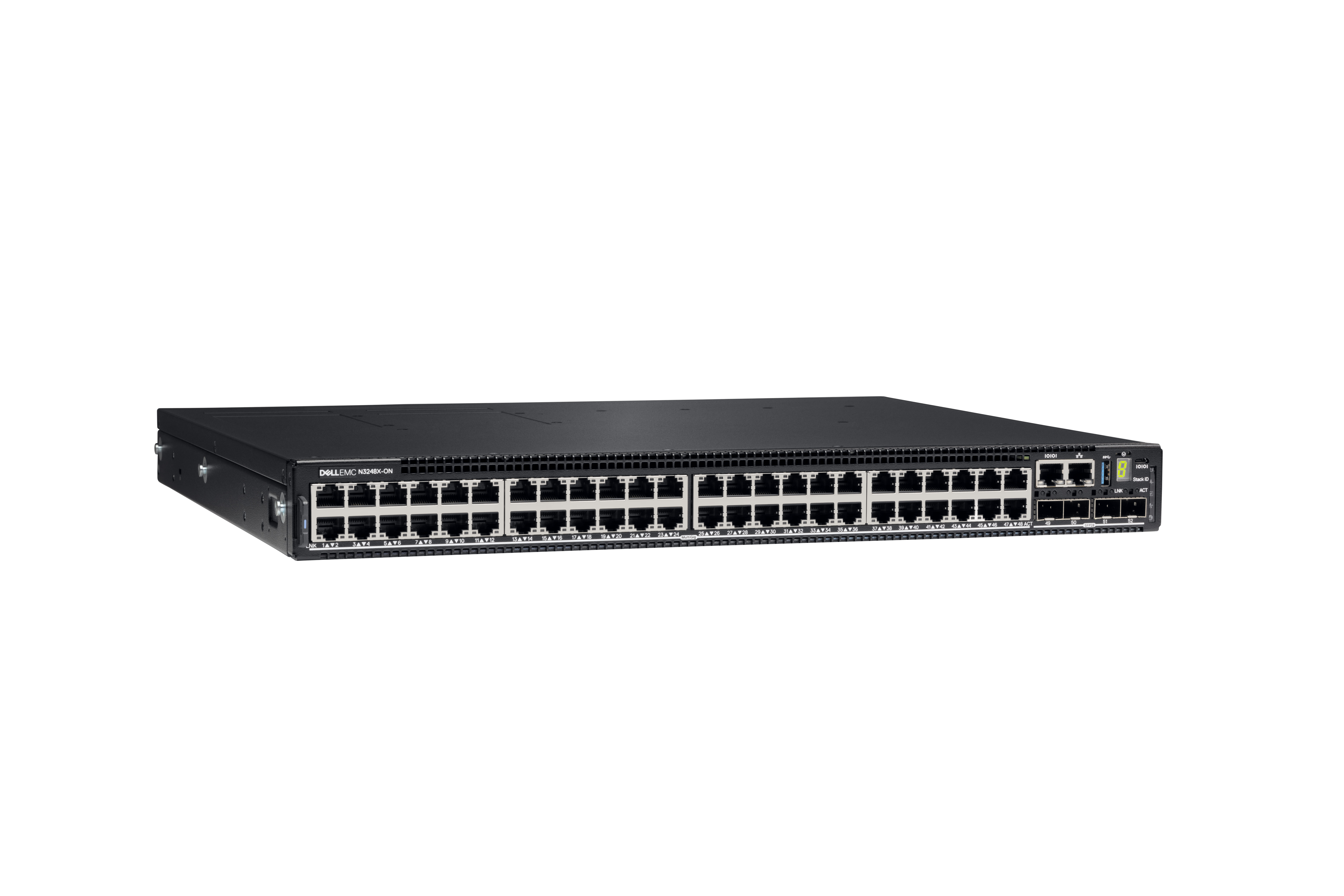

Dell N3248X-ON 48x1/2.5/5/10G RJ-45 4x25G Switch
Item No:
717017
MPN:
210-ASPS
$19,911.87
Payment options
Shipping Information
- Unavailable for shipping
- This product is not currently available for purchase
Store Availability
- Unavailable at Bankstown Store
- Unavailable at Castle Hill Store
- Unavailable at Northmead Store
DELL N Series N3248X ON, Managed, 10G Ethernet (100/1000/10000), Rack mounting
Power up your campus access network
Purpose built 8, 24 and 48 port Multi Gig and Multi Gig 802.3bt 90W PoE switches for modern workloads and greater employee productivity.
Purpose built 8, 24 and 48 port Multi Gig and Multi Gig 802.3bt 90W PoE switches for modern workloads and greater employee productivity.
| Management features | |
| Switch type What switch device has, managed or unmanaged. | Managed |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity The number of basic switching RJ-45 Ethernet ports (sockets). | 48 |
| Basic switching RJ-45 Ethernet ports type The type/category of basic switching RJ-45 Ethernet ports (sockets). | 10G Ethernet (100/1000/10000) |
| QSFP28 ports quantity | 2 |
| SFP28 ports quantity | 4 |
| Power connector | AC-in jack |
| Network | |
| 10G support The product can use Oracle 10G, which is a database management system introduced in 2003. |
 |
| Ethernet LAN data rates The different speed levels of the Ethernet LAN connection. | 1000,2500,5000,10000 Mbit/s |
| Design | |
| Rack mounting The type of mounting that can position devices in a shelving system (rack). |
|
| Stackable Devices can be placed on top of each other. |
|
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Ventilation system | Front-to-back airflow |
| Airflow direction | Front-to-back airflow |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 3 fan(s) |
| Performance | |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | OS6 |
| Power | |
| Power supply included There is a power supply with this product. |
|
| AC input voltage The voltage of the AC electricity that is inputted into the product. | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 4.9 A |
| Power consumption (typical) Amount of power consumed by this model, often expressed in watts (W). Typical values that manufacturers give are power consumption when off, standby/suspended mode, typical use, maximum usage. | 550 W |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) The device supports Power over Ethernet (PoE), which is one of several standardized or ad-hoc systems which pass electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to devices such as wireless access points or IP cameras. |
 |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 45 °C |
| Storage temperature (T-T) The minimum and maximum temperatures at which the product can be safely stored. | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Heat dissipation The heat generated by the power supply. | 1023.85 BTU/h |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 434 mm |
| Depth The distance from the front to the back of something. | 400 mm |
| Height The measurement of the product from head to foot or from base to top. | 43.5 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 7.3 kg |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| SKU | 717017 |
| MPN | 210-ASPS |
| Brand | Dell |
| Product Condition | Brand New/Unused |
| Product Use | General |
