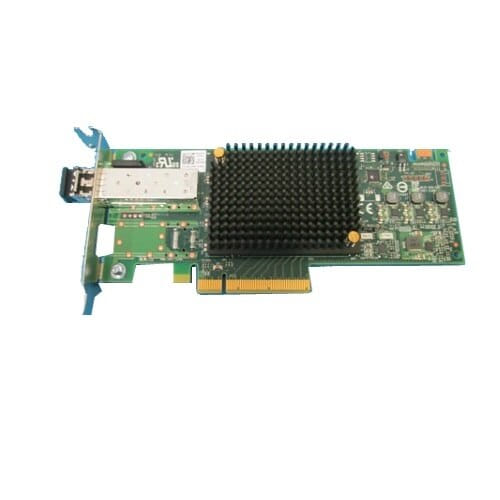

DELL 403-BBLZ, PCIe, Fiber, Low-profile, PCIe 3.0, Green, Server
- Support for Dell iDRAC8 with LifeCycle Controller and Emulex OneCommand manager to improve IT staff productivity through simplified deployment and management;
- T10 PI high-performance offload for advanced, end-to-end data integrity (requires support from SAN target solution).
Emulex LPe31000-M6-D Low Profile Single Port 16Gb Fibre Channel HBA with 16Gb FC connectivity (short wave optical " LC SFP+ included) from Dell are designed to address the demanding performance, reliability and management requirements of modern networked storage systems that utilize high performance and low latency solid state storage drives and HDD arrays. Compared to the previous generation, they provide up to 2x greater bandwidth, less than half the latency, and new features such as Forward Error Correction and enhanced diagnostics and I/O monitoring capabilities.
- T10 PI high-performance offload for advanced, end-to-end data integrity (requires support from SAN target solution).
Emulex LPe31000-M6-D Low Profile Single Port 16Gb Fibre Channel HBA with 16Gb FC connectivity (short wave optical " LC SFP+ included) from Dell are designed to address the demanding performance, reliability and management requirements of modern networked storage systems that utilize high performance and low latency solid state storage drives and HDD arrays. Compared to the previous generation, they provide up to 2x greater bandwidth, less than half the latency, and new features such as Forward Error Correction and enhanced diagnostics and I/O monitoring capabilities.
| Ports & interfaces | |
| Host interface Interface that enables a host controller to communicate with a driver. | PCIe |
| Output interface The socket (port) where the output connectors are connected. | Fiber |
| Expansion card form factor | Low-profile |
| Expansion card standard | PCIe 3.0 |
| Design | |
| Internal The product is built in. |
 |
| Product colour The colour e.g. red, blue, green, black, white. | Green |
| Purpose What the product is used for. | Server |
| RoHS compliance The Restriction of Hazardous Substances (RoHS) Directive aims to restrict certain dangerous substances commonly used in electrical and electronic equipment. Any RoHS compliant product is tested for the presence of Lead (Pb), Cadmium (Cd), Mercury (Hg), Hexavalent chromium (Hex-Cr), Polybrominated biphenyls (PBB), and Polybrominated diphenyl ethers (PBDE). PBB and PBDE are flame retardants used in several plastics. For Cadmium and Hexavalent chromium, there must be less than 0.01% of the substance by weight at raw homogeneous materials level. For Lead, PBB, and PBDE, there must be no more than 0.1% of the material, when calculated by weight at raw homogeneous materials. Any RoHS compliant component must have 100 ppm or less of mercury and the mercury must not have been intentionally added to the component. In the EU, some military and medical equipment are exempt from RoHS compliance. |
|
| Certification | CSA, UL, FCC, RoHS, TUV Bauart, BSMI Class A, ICES Class A, VCCI Class A, MSIP Class A, RCM |
| Features | |
| Data transfer rate (max) | 14.025 Gbit/s |
| Operational conditions | |
| Operating temperature (T-T) The minimum and maximum temperatures at which the product can be safely operated. | 0 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| System requirements | |
| Windows operating systems supported Windows vesions wich can be used with the device. |
|
| Linux operating systems supported 8 RT. Linux (9.4, 9.5), Red Hat Enterprise Linux 5.0 (supported with a pre-built package); SUSE Linux (10.3, 11.0, 11, 11.1, 11.2), Fedora (9, 9.0, 10, 10.0, 11.0, 11, 12, 12.0), Ubuntu (8.04, 8.04.1, 8.04.2, 8.10, 9.04, 9.10, 10.04), Debian (5.0, 5.0.1, 5.0.2, 5.0.3) |
|
| Packaging data | |
| Quantity The number of products there are. | 1 |
| Other features | |
| Data transfer rate Rate at which data can be transferred. Usually expressed in units per second. May vary with network configurations. | 14.025 Gbit/s |
| Ports quantity The number of ports or external interfaces to which other equipment can be connected. | 1 |
| Data link protocols | 16Gb Fibre Channel |
| Connectivity technology The technology that enables connectivity of the device, e.g. wired or wireless. | Wired |
| Compatible operating systems List of desktop operating systems tested as compatible with this product. | SUSE Linux Enterprise Server, Microsoft Windows, Red Hat Enterprise Linux |
| Compatibility The other products, software and hardware this product can be used with. | PowerEdge C4130 PowerEdge FC630 PowerEdge FC830 PowerEdge R530 PowerEdge R630 PowerEdge R730 PowerEdge R730XD |
| SKU | 431753 |
| MPN | 403-BBLZ |
| Brand | Dell |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.dell.com/ |
