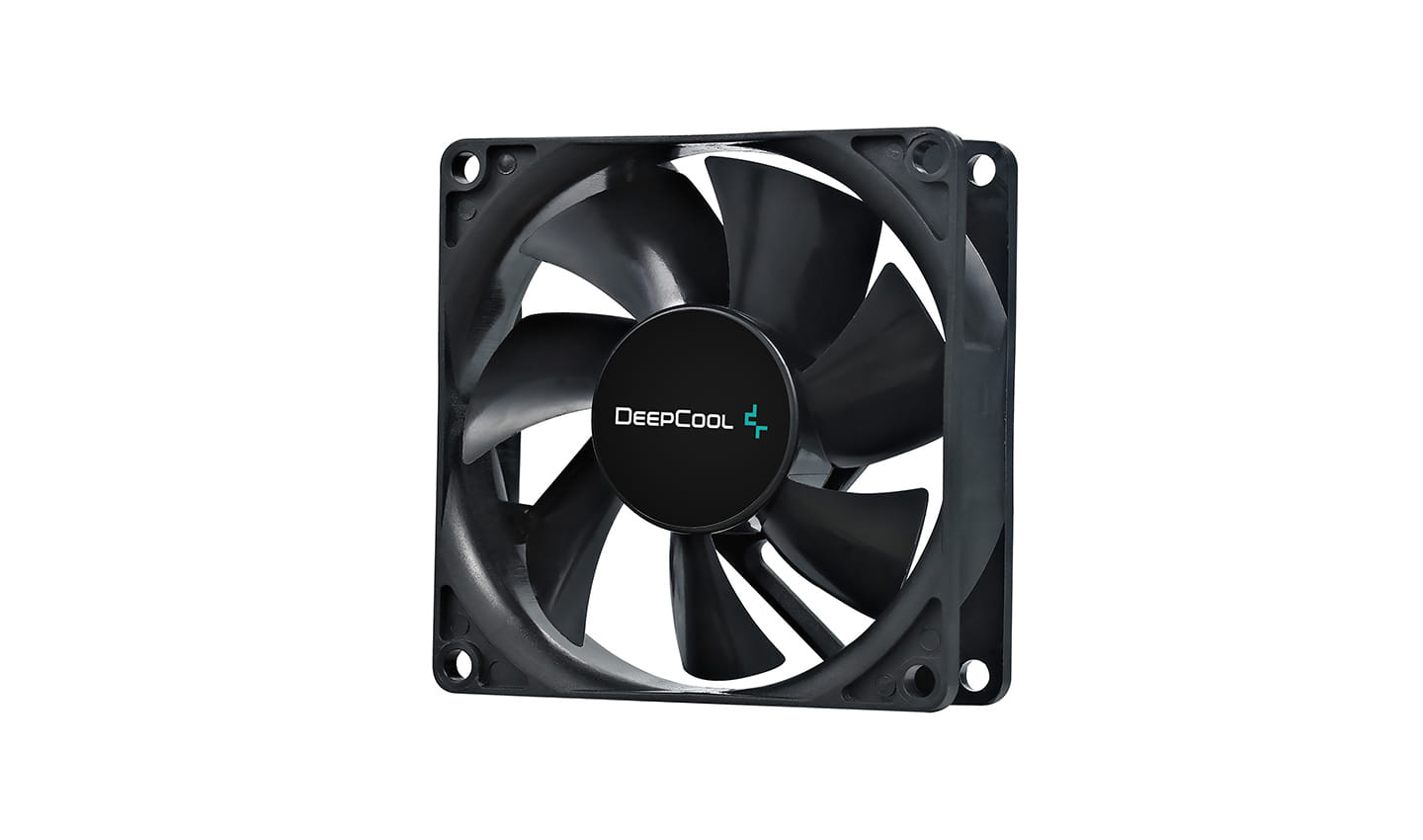

8CM Case Fan/4Pin Molex
High quality black material fan structure.
Low speed RPM to ensure quiet operation.
Technical Specifications
Overall Dimension : 80X80X25mm
Rated Voltage : 12VDC
Power Input : 0.96W
Fan Dimension : 80X80X25mm
Operating Voltage : 10.8 ~ 13.2VDC
Fan Speed : 1800 +- 10%RPM
Net Weight : 82G
Started Voltage : 7VDC
Max Air Flow : 21.8CFM
Bear Typing : Hydro Bearing
Rated Current : 0.08 +- 10%A
Noise : 20dB(A)
| Performance | |
| Suitable location Locations in which the product can be used. | Computer case |
| Type Characteristics of the device. | Fan |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 8 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | Not supported |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | Not supported |
| Rotational speed (max) | 1800 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 20.3 dB |
| Maximum airflow | 21.8 cfm |
| Bearing type | Hydraulic |
| Quantity per pack | 1 pc(s) |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Number of fan blades | 7 |
| Power | |
| Power supply The way in which the product is powered e.g. rechargeable battery, mains electricity connected via a plug and cable. | 0.96 W |
| Voltage | 10.8 - 13.2 V |
| Rated voltage | 12 V |
| Starting voltage | 7 V |
| Rated current | 0.08 A |
| Weight & dimensions | |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 82 g |
| Fan dimensions (W x D x H) | 80 x 25 x 80 mm |
| SKU | 316715 |
| MPN | XFAN80 |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Fan Size (mm) | 80mm |
| Stock Availability | Available for Shipping |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.deepcool.com/ |
