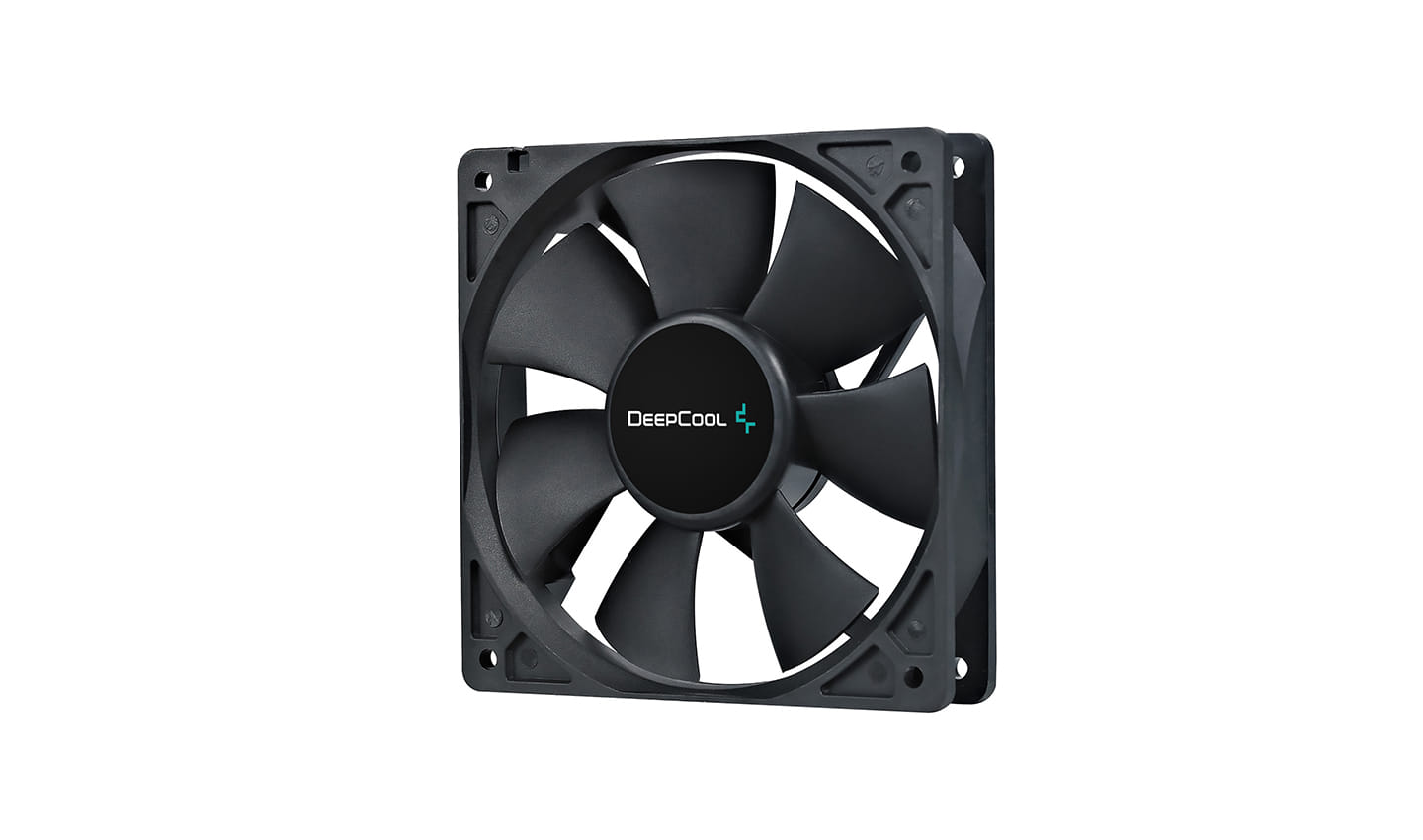

12CM Case Fan/4Pin Molex
High quality black material fan structure. Low speed RPM to ensure quiet operation.
Technical Specifications
Overall Dimension : 120X120X25mm
Rated Voltage : 12VDC
Power Input : 0.84W
Fan Dimension : 120X120X25mm
Operating Voltage : 10.8 ~ 13.2VDC
Fan Speed : 1300 +- 10%RPM
Net Weight : 180G
Started Voltage : 7VDC
Max Air Flow : 44.71CFM
Bear Typing : Hydro Bearing
Rated Current : 0.07 +- 10%A
Noise : 26dB(A)| Performance | |
| Suitable location Locations in which the product can be used. | Computer case |
| Type Characteristics of the device. | Fan |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | Not supported |
| Compatible processor series A processor which is compatible with this device, belongs to a 'series' which is part of 'family' e.g Celeron D, Celeron G, Celeron M, or, in some cases, is the same as 'family'. | Not supported |
| Rotational speed (max) | 1300 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 23.7 dB |
| Maximum airflow | 43.56 cfm |
| Fan bearing technology | Hydro bearing |
| Quantity per pack | 1 pc(s) |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Number of fan blades | 7 |
| Power | |
| Voltage | 10.8 - 13.2 V |
| Rated voltage | 12 V |
| Starting voltage | 7 V |
| Fan power consumption | 0.84 W |
| Rated current | 0.07 A |
| Weight & dimensions | |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| Fan weight | 180 g |
| Packaging content | |
| Cables included | 3-pin |
| Screws included |
 |
| Number of screws | 4 |
| SKU | 316722 |
| MPN | DP-FDC-XF120 |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.deepcool.com/ |
| Stock Availability | Available for Shipping |
