500-2000 RPM; Compatible with Intel LGA1851/1700, AM5/AM4; 112.5 CFM; 4.15 mmAq; 32.89dB(A); 420mm

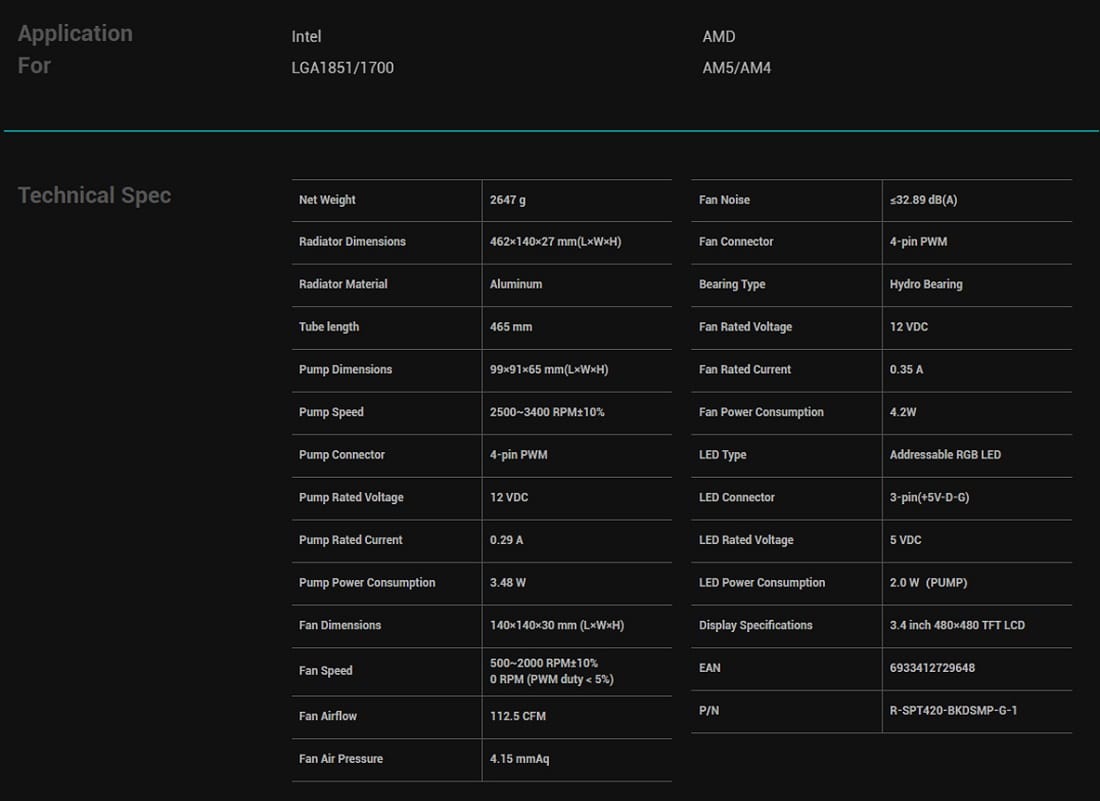

| Performance | |
| Suitable location Locations in which the product can be used. | Processor |
| Type Characteristics of the device. | Liquid cooling kit |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 14 cm |
| Supported processor sockets The sockets (plugs) for processors that are supported (can be used) by the device. | LGA 1700, LGA 1851, Socket AM4, Socket AM5 |
| Maximum airflow | 112.5 cfm |
| Maximum air pressure | 4.15 mmH2O |
| Bearing type | Hydraulic |
| Pump connector | 4-pin |
| Pump motor speed (min) | 2500 RPM |
| Pump motor speed (max) | 3400 RPM |
| Fan speed (min) | 500 RPM |
| Fan speed (max) | 2000 RPM |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Radiator material | Aluminum |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 3 fan(s) |
| Number of fan blades | 9 |
| Illumination LED |
 |
| Illumination colour The colour of the illumination, which is the light which allows you to see the display etc. clearly. | Multi |
| LED connector type | 3-pin |
| Fan connector | 4-pin |
| Display type Type of display (screen) e.g. LCD. | TFT |
| Display diagonal Size of the display for this product, measured diagonally, usually in inches. | 8.64 cm (3.4") |
| Display resolution The number of distinct pixels in each dimension that can be displayed. It is usually quoted as width × height, with the units in pixels: for example, "1024 × 768" means the width is 1024 pixels and the height is 768 pixels. The higher the number of pixels, the sharper the image. | 480 x 480 pixels |
| Power | |
| Fan power consumption | 4.2 W |
| Pump power consumption | 3.48 W |
| LED voltage | 5 V |
| Pump voltage | 12 V |
| Pump current | 290 mA |
| Fan voltage | 12 V |
| Fan current | 0.35 A |
| LED power consumption (pump) | 2 W |
| Weight & dimensions | |
| Radiator width | 14 cm |
| Radiator depth | 46.2 cm |
| Radiator height | 2.7 cm |
| Tube length | 46.5 cm |
| Pump width | 9.1 cm |
| Pump depth | 9.9 cm |
| Pump height | 6.5 cm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 2.65 kg |
| Fan dimensions (W x D x H) | 140 x 30 x 140 mm |
| Fan thickness | 3 cm |
| Packaging content | |
| Package type The type of product package e.g. box. | Box |
| Mounting kit |
|
| Screws included |
|
| CPU socket spacer(s) |
|
| CPU bracket(s) |
|
| Adapter frame included |
|
| SKU | 833500 |
| MPN | R-SPT420-BKDSMP-G-1 |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Product Use | General |
| Warranty Period | 5 Years Warranty |
| Warranty Contact | https://www.deepcool.com/ |
| Stock Availability | Available for Shipping |
