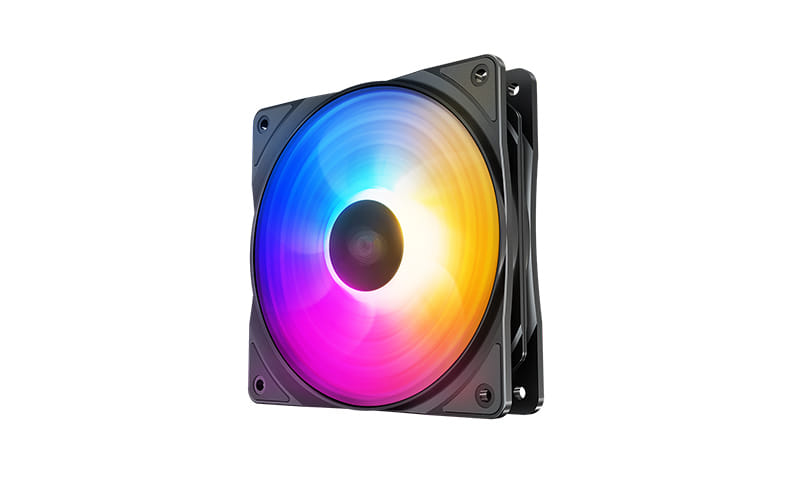

Deepcool RF120 FS LED Fan 120mm Preset Purple/Blue/Orange LED Combination
Dazzling preset lighting effect (purple/blue/orange) from 6 high-brightness, long-lasting LEDs.
Optimized 9 fan blades design, balancing air flow and wind pressure.
PWM smart adjustment technology, effectively reducing wind noise.
4-pin power connector for high-performance and stability.
4 standard-sized screws, keeping the frame stable and the installation simple.
Improved hydraulic self-oiling bearing, yielding enhanced product life-span.
Convenient Lighting 6 built-in high brightness LEDs. With the all-new purple/blue/orange lighting combination, you won 't need complicated control settings. Simply plug in the power on and enjoy the mesmerizing visual experience.
PWM Control PWM smart adjustment allows precise speed control. Equipped with shock pads, the fan undergoes optimal operation, effectively reducing noise generation.
Powerful Performance Optimized 9 fan blades design, balancing air flow and wind pressure, providing strong cooling performance.
Long-lasting Bearing Adopts hydraulic self-oiling bearing, long lasting
Convenient Installation Standard screw sizes, fuss-free convenient installation.
Technical Spec
Specification RF120 FS
Overall Dimensions 120X120X25mm
Net Weight 136g
Bearing Type Hydro Bearing
Rated Voltage 12VDC
Rated Current 0.17 A
Power Input 2.04 W
Fan Speed 500~1500 RPM
Max. Air Flow 58.29 CFM
Fan Air Pressure 1.51 mmAq
Noise 27.9 dB(A)
Fan Connector 4-pin PWM
LED Type LED
Optimized 9 fan blades design, balancing air flow and wind pressure.
PWM smart adjustment technology, effectively reducing wind noise.
4-pin power connector for high-performance and stability.
4 standard-sized screws, keeping the frame stable and the installation simple.
Improved hydraulic self-oiling bearing, yielding enhanced product life-span.
Convenient Lighting 6 built-in high brightness LEDs. With the all-new purple/blue/orange lighting combination, you won 't need complicated control settings. Simply plug in the power on and enjoy the mesmerizing visual experience.
PWM Control PWM smart adjustment allows precise speed control. Equipped with shock pads, the fan undergoes optimal operation, effectively reducing noise generation.
Powerful Performance Optimized 9 fan blades design, balancing air flow and wind pressure, providing strong cooling performance.
Long-lasting Bearing Adopts hydraulic self-oiling bearing, long lasting
Convenient Installation Standard screw sizes, fuss-free convenient installation.
Technical Spec
Specification RF120 FS
Overall Dimensions 120X120X25mm
Net Weight 136g
Bearing Type Hydro Bearing
Rated Voltage 12VDC
Rated Current 0.17 A
Power Input 2.04 W
Fan Speed 500~1500 RPM
Max. Air Flow 58.29 CFM
Fan Air Pressure 1.51 mmAq
Noise 27.9 dB(A)
Fan Connector 4-pin PWM
LED Type LED
| Performance | |
| Suitable for Who can use the product, or what the product can be used for. | Processor |
| Type Characteristics of the device. | Cooler |
| Fan diameter The size of the fan, measured by the distance from one side of the fan to the other, via a straight line going through the middle of the fan. | 12 cm |
| Rotational speed (min) | 500 RPM |
| Rotational speed (max) | 1500 RPM |
| Noise level (high speed) How loud the device is when used at high speed. | 27 dB |
| Maximum airflow | 56.6 cfm |
| Maximum air pressure | 1.66 mmH2O |
| Pulse-width modulation (PWM) support |
 |
| Bearing type | Hydraulic |
| Quantity per pack | 1 pc(s) |
| Design | |
| Product colour The colour e.g. red, blue, green, black, white. | Black |
| Number of fans The quantity of fans (apparatus with rotating blades that creates a current of air for cooling or ventilation). | 1 fan(s) |
| Number of fan blades | 9 |
| Illumination LED |
|
| Fan connector | 4-pin |
| Power | |
| Voltage | 12 V |
| Weight & dimensions | |
| Width The measurement or extent of something from side to side. | 120 mm |
| Depth The distance from the front to the back of something. | 25 mm |
| Height The measurement of the product from head to foot or from base to top. | 120 mm |
| Weight Weight of the product without packaging (net weight). If possible, the net weight is given including standard accessories and supplies. Please note that sometimes the manufacturer leaves out the weight of accessories and/or supplies. | 143 g |
| Packaging content | |
| Package type The type of product package e.g. box. | Box |
| Screws included |
|
| SKU | 448076 |
| MPN | DP-FLED3-RF120-FS |
| Brand | DeepCool |
| Product Condition | Brand New/Unused |
| Fan Size (mm) | 120mm |
| Cooling Technology | N/A |
| Stock Availability | Available for Shipping, In Stock at Castle Hill |
| Product Use | General |
| Warranty Period | 1 Year Warranty |
| Warranty Contact | https://www.deepcool.com/ |
